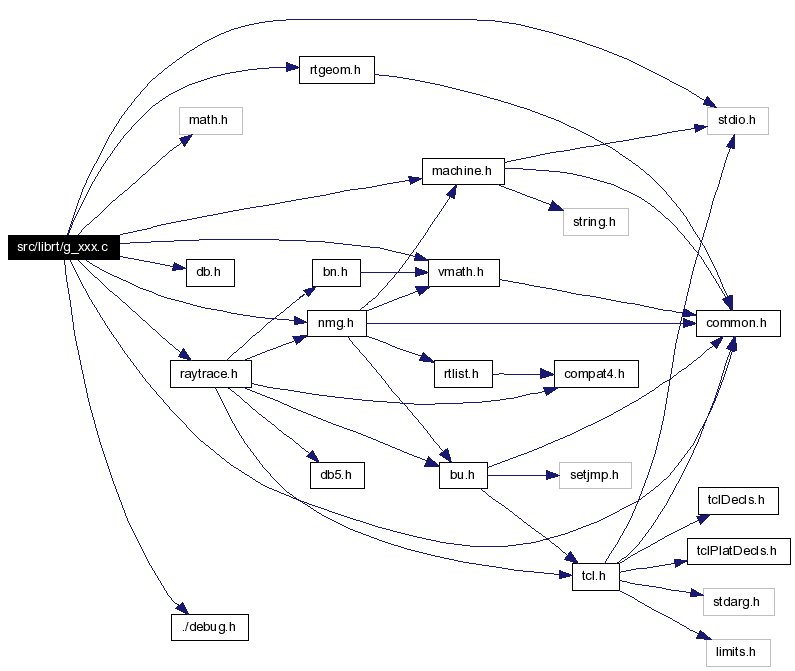

#include "common.h"#include <stdio.h>#include <math.h>#include "machine.h"#include "vmath.h"#include "db.h"#include "nmg.h"#include "raytrace.h"#include "rtgeom.h"#include "./debug.h"Include dependency graph for g_xxx.c:
Go to the source code of this file.
Data Structures | |
| struct | xxx_specific |
Defines | |
| #define | RT_XXX_SEG_MISS(SEG) (SEG).seg_stp=RT_SOLTAB_NULL |
Functions | |
| int | rt_xxx_prep (struct soltab *stp, struct rt_db_internal *ip, struct rt_i *rtip) |
| void | rt_xxx_print (const struct soltab *stp) |
| int | rt_xxx_shot (struct soltab *stp, struct xray *rp, struct application *ap, struct seg *seghead) |
| void | rt_xxx_vshot (struct soltab *stp[], struct xray *rp[], struct seg segp[], int n, struct application *ap) |
| void | rt_xxx_norm (struct hit *hitp, struct soltab *stp, struct xray *rp) |
| void | rt_xxx_curve (struct curvature *cvp, struct hit *hitp, struct soltab *stp) |
| void | rt_xxx_uv (struct application *ap, struct soltab *stp, struct hit *hitp, struct uvcoord *uvp) |
| void | rt_xxx_free (struct soltab *stp) |
| int | rt_xxx_class (const struct soltab *stp, const vect_t min, const vect_t max, const struct bn_tol *tol) |
| int | rt_xxx_plot (struct bu_list *vhead, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol) |
| int | rt_xxx_tess (struct nmgregion **r, struct model *m, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol) |
| int | rt_xxx_import (struct rt_db_internal *ip, const struct bu_external *ep, const mat_t mat, const struct db_i *dbip) |
| int | rt_xxx_export (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip) |
| int | rt_xxx_import5 (struct rt_db_internal *ip, const struct bu_external *ep, const mat_t mat, const struct db_i *dbip) |
| int | rt_xxx_export5 (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip) |
| int | rt_xxx_describe (struct bu_vls *str, const struct rt_db_internal *ip, int verbose, double mm2local) |
| void | rt_xxx_ifree (struct rt_db_internal *ip) |
| int | rt_xxx_xform (struct rt_db_internal *op, const mat_t mat, struct rt_db_internal *ip, int free) |
Adding a new solid type: Design disk record
define rt_xxx_internal --- parameters for solid define xxx_specific --- raytracing form, possibly w/precomuted terms define rt_xxx_parse --- struct bu_structparse for "db get", "db adjust", ...
code import/export/describe/print/ifree/plot/prep/shot/curve/uv/tess
edit db.h add solidrec s_type define edit rtgeom.h to add rt_xxx_internal edit table.c: RT_DECLARE_INTERFACE() struct rt_functab entry rt_id_solid() edit raytrace.h to make ID_XXX, increment ID_MAXIMUM edit db_scan.c to add the new solid to db_scan() edit Makefile.am to add g_xxx.c to compile
Then: go to src/libwdb and create mk_xxx() routine go to src/conv and edit g2asc.c and asc2g.c to support the new solid go to src/librt and edit tcl.c to add the new solid to rt_solid_type_lookup[] also add the interface table and to rt_id_solid() in table.c go to src/mged and create the edit support
Authors -
Source - SECAD/VLD Computing Consortium, Bldg 394 The U. S. Army Ballistic Research Laboratory Aberdeen Proving Ground, Maryland 21005-5066
Definition in file g_xxx.c.
|
|
|
|
||||||||||||||||
|
R T _ X X X _ P R E P Given a pointer to a GED database record, and a transformation matrix, determine if this is a valid XXX, and if so, precompute various terms of the formula. Returns - 0 XXX is OK !0 Error in description Implicit return - A struct xxx_specific is created, and it's address is stored in stp->st_specific for use by xxx_shot(). Definition at line 121 of file g_xxx.c. References rt_db_internal::idb_ptr, RT_CK_DB_INTERNAL, and rt_i::rti_tol. |
|
|
R T _ X X X _ P R I N T Definition at line 136 of file g_xxx.c. References soltab::st_specific. |
|
||||||||||||||||||||
|
R T _ X X X _ S H O T Intersect a ray with a xxx. If an intersection occurs, a struct seg will be acquired and filled in. Returns - 0 MISS >0 HIT Definition at line 154 of file g_xxx.c. References application::a_rt_i, rt_i::rti_tol, and soltab::st_specific. |
|
||||||||||||||||||||||||
|
R T _ X X X _ V S H O T Vectorized version. Definition at line 172 of file g_xxx.c. References rt_vstub(). Here is the call graph for this function:  |
|
||||||||||||||||
|
R T _ X X X _ N O R M Given ONE ray distance, return the normal and entry/exit point. Definition at line 187 of file g_xxx.c. References hit::hit_dist, hit::hit_point, xray::r_dir, xray::r_pt, soltab::st_specific, and VJOIN1. |
|
||||||||||||||||
|
R T _ X X X _ C U R V E Return the curvature of the xxx. Definition at line 201 of file g_xxx.c. References bn_vec_ortho(), curvature::crv_c1, curvature::crv_c2, curvature::crv_pdir, hit::hit_normal, and soltab::st_specific. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ U V For a hit on the surface of an xxx, return the (u,v) coordinates of the hit point, 0 <= u,v <= 1. u = azimuth v = elevation Definition at line 221 of file g_xxx.c. References soltab::st_specific. |
|
|
R T _ X X X _ F R E E Definition at line 231 of file g_xxx.c. References bu_free(), and soltab::st_specific. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ C L A S S Definition at line 243 of file g_xxx.c. References RT_CLASSIFY_UNIMPLEMENTED. |
|
||||||||||||||||||||
|
R T _ X X X _ P L O T Definition at line 252 of file g_xxx.c. References rt_db_internal::idb_ptr, LOCAL, and RT_CK_DB_INTERNAL. |
|
||||||||||||||||||||||||
|
R T _ X X X _ T E S S Returns - -1 failure 0 OK. *r points to nmgregion that holds this tessellation. Definition at line 271 of file g_xxx.c. References rt_db_internal::idb_ptr, LOCAL, and RT_CK_DB_INTERNAL. |
|
||||||||||||||||||||
|
R T _ X X X _ I M P O R T Import an XXX from the database format to the internal format. Apply modeling transformations as well. Definition at line 289 of file g_xxx.c. References BU_CK_EXTERNAL, bu_log(), bu_malloc(), DB5_MAJORTYPE_BRLCAD, bu_external::ext_buf, ID_SOLID, rt_db_internal::idb_major_type, rt_db_internal::idb_meth, rt_db_internal::idb_ptr, LOCAL, MAT4X3PNT, RT_CK_DB_INTERNAL, record::s, record::solidrec::s_values, and record::u_id. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ E X P O R T The name is added by the caller, in the usual place. Definition at line 321 of file g_xxx.c. References bu_calloc(), BU_CK_EXTERNAL, bu_external::ext_buf, bu_external::ext_nbytes, ID_SOLID, rt_db_internal::idb_ptr, RT_CK_DB_INTERNAL, record::s, record::solidrec::s_id, record::solidrec::s_type, record::solidrec::s_values, and VSCALE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ I M P O R T 5 Import an XXX from the database format to the internal format. Note that the data read will be in network order. This means Big-Endian integers and IEEE doubles for floating point. Apply modeling transformations as well. Definition at line 369 of file g_xxx.c. References BU_ASSERT_LONG, BU_CK_EXTERNAL, bu_malloc(), DB5_MAJORTYPE_BRLCAD, ELEMENTS_PER_VECT, bu_external::ext_buf, bu_external::ext_nbytes, rt_db_internal::idb_major_type, rt_db_internal::idb_meth, rt_db_internal::idb_ptr, LOCAL, MAT4X3PNT, ntohd(), RT_CK_DB_INTERNAL, and SIZEOF_NETWORK_DOUBLE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ E X P O R T 5 Export an XXX from internal form to external format. Note that this means converting all integers to Big-Endian format and floating point data to IEEE double. Apply the transformation to mm units as well. Definition at line 410 of file g_xxx.c. References bu_calloc(), BU_CK_EXTERNAL, ELEMENTS_PER_VECT, bu_external::ext_buf, bu_external::ext_nbytes, htond(), rt_db_internal::idb_ptr, RT_CK_DB_INTERNAL, SIZEOF_NETWORK_DOUBLE, and VSCALE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ D E S C R I B E Make human-readable formatted presentation of this solid. First line describes type of solid. Additional lines are indented one tab, and give parameter values. Definition at line 445 of file g_xxx.c. References bu_vls_strcat(), rt_db_internal::idb_ptr, INTCLAMP, X, Y, and Z. Here is the call graph for this function:  |
|
|

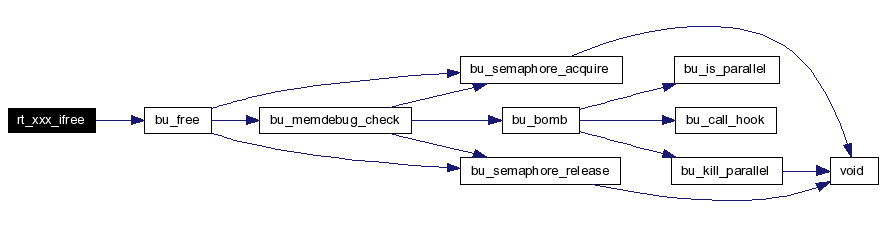

R T _ X X X _ I F R E E Free the storage associated with the rt_db_internal version of this solid. Definition at line 469 of file g_xxx.c. References bu_free(), GENPTR_NULL, rt_db_internal::idb_ptr, and RT_CK_DB_INTERNAL. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ X X X _ X F O R M Create transformed version of internal form. Free *ip if requested. Implement this if it's faster than doing an export/import cycle. |
