rt_i Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

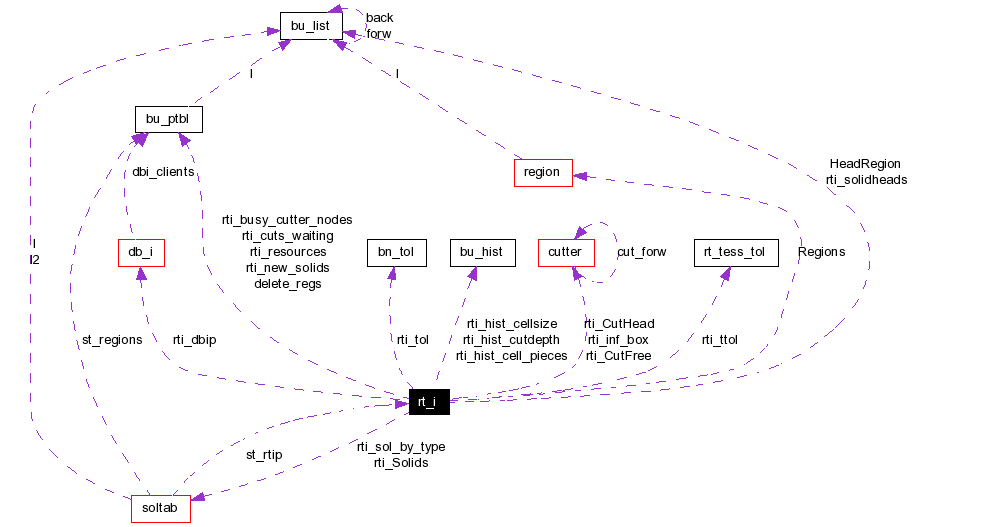

Collaboration diagram for rt_i:

[legend]

Data Fields
long	rti_magic
	magic # for integrity check
int	useair
	1="air" regions are retained while prepping
int	rti_save_overlaps
	1=fill in pt_overlap_reg, change boolweave behavior
int	rti_dont_instance
	1=Don't compress instances of solids into 1 while prepping
int	rti_hasty_prep
	1=hasty prep, slower ray-trace
int	rti_nlights
	number of light sources
int	rti_prismtrace
	add support for pixel prism trace
char *	rti_region_fix_file
	rt_regionfix() file or NULL
int	rti_space_partition
	space partitioning method
int	rti_nugrid_dimlimit
	limit on nugrid dimensions
bn_tol	rti_tol
	Math tolerances for this model.
rt_tess_tol	rti_ttol
	Tessellation tolerance defaults.
fastf_t	rti_max_beam_radius
	Max threat radius for FASTGEN cline solid.
point_t	mdl_min
	min corner of model bounding RPP
point_t	mdl_max
	max corner of model bounding RPP
point_t	rti_pmin
	for plotting, min RPP
point_t	rti_pmax
	for plotting, max RPP
double	rti_radius
	radius of model bounding sphere
db_i *	rti_dbip
	prt to Database instance struct
int	needprep
	needs rt_prep
region **	Regions
	ptrs to regions [reg_bit]
bu_list	HeadRegion
	ptr of list of regions in model
genptr_t	Orca_hash_tbl
	Hash table in matrices for ORCA.
bu_ptbl	delete_regs
	list of region pointers to delete after light_init()
long	nregions
	total # of regions participating
long	nsolids
	total # of solids participating
long	rti_nrays
	# calls to rt_shootray()
long	nmiss_model
	rays missed model RPP
long	nshots
	# of calls to ft_shot()
long	nmiss
	solid ft_shot() returned a miss
long	nhits
	solid ft_shot() returned a hit
long	nmiss_tree
	shots missed sub-tree RPP
long	nmiss_solid
	shots missed solid RPP
long	ndup
	duplicate shots at a given solid
long	nempty_cells
	number of empty NUgrid cells
cutter	rti_CutHead
	Head of cut tree.
cutter	rti_inf_box
	List of infinite solids.
cutter *	rti_CutFree
	cut Freelist
bu_ptbl	rti_busy_cutter_nodes
	List of "cutter" mallocs.
bu_ptbl	rti_cuts_waiting
int	rti_cut_maxlen
	max len RPP list in 1 cut bin
int	rti_ncut_by_type [CUT_MAXIMUM+1]
	number of cuts by type
int	rti_cut_totobj
	# objs in all bins, total
int	rti_cut_maxdepth
	max depth of cut tree
soltab **	rti_sol_by_type [ID_MAX_SOLID+1]
int	rti_nsol_by_type [ID_MAX_SOLID+1]
int	rti_maxsol_by_type
int	rti_air_discards
	# of air regions discarded
bu_hist	rti_hist_cellsize
	occupancy of cut cells
bu_hist	rti_hist_cell_pieces
	solid pieces per cell
bu_hist	rti_hist_cutdepth
	depth of cut tree
soltab **	rti_Solids
	ptrs to soltab [st_bit]
bu_list	rti_solidheads [RT_DBNHASH]
	active solid lists
bu_ptbl	rti_resources
	list of 'struct resource'es encountered
double	rti_nu_gfactor
	constant in numcells computation
int	rti_cutlen
	goal for # solids per boxnode
int	rti_cutdepth
	goal for depth of NUBSPT cut tree
char *	rti_treetop
	bu_strduped, for rt_submodel rti's only
int	rti_uses
	for rt_submodel
int	rti_nsolids_with_pieces
	# solids using pieces
int	rti_add_to_new_solids_list
bu_ptbl	rti_new_solids

---

Detailed Description

R T _ I

Definitions for librt which are specific to the particular model being processed, one copy for each model. Initially, a pointer to this is returned from rt_dirbuild().

During gettree processing, the most time consuming step is searching the list of existing solids to see if a new solid is actually an identical instance of a previous solid. Therefore, the list has been divided into several lists. The same macros & hash value that accesses the dbi_Head[] array are used here. The hash value is computed by db_dirhash().

Definition at line 1763 of file raytrace.h.

---

Field Documentation

long rti_magic

magic # for integrity check Definition at line 1764 of file raytrace.h. Referenced by rt_new_rti().

int useair

1="air" regions are retained while prepping Definition at line 1766 of file raytrace.h. Referenced by db_shader_mat(), dgo_E_cmd(), rt_gettree_region_start(), rt_submodel_prep(), rt_tcl_rt_prep(), wdb_get_obj_bounds(), and wdb_rt_gettrees_cmd().

int rti_save_overlaps

1=fill in pt_overlap_reg, change boolweave behavior Definition at line 1767 of file raytrace.h.

int rti_dont_instance

1=Don't compress instances of solids into 1 while prepping Definition at line 1768 of file raytrace.h. Referenced by rt_find_identical_solid(), rt_submodel_prep(), rt_tcl_rt_prep(), and wdb_rt_gettrees_cmd().

int rti_hasty_prep

1=hasty prep, slower ray-trace Definition at line 1769 of file raytrace.h. Referenced by rt_submodel_prep(), rt_tcl_rt_prep(), and wdb_rt_gettrees_cmd().

int rti_nlights

number of light sources Definition at line 1770 of file raytrace.h.

int rti_prismtrace

add support for pixel prism trace Definition at line 1771 of file raytrace.h.

char* rti_region_fix_file

rt_regionfix() file or NULL Definition at line 1772 of file raytrace.h. Referenced by rt_regionfix().

int rti_space_partition

space partitioning method Definition at line 1773 of file raytrace.h. Referenced by rt_pr_cut_info(), rt_submodel_prep(), and rt_tcl_rt_prep().

int rti_nugrid_dimlimit

limit on nugrid dimensions Definition at line 1774 of file raytrace.h. Referenced by rt_nugrid_cut().

struct bn_tol rti_tol

Math tolerances for this model. Definition at line 1775 of file raytrace.h. Referenced by dgo_E_cmd(), rt_arb_setup(), rt_arbn_prep(), rt_ars_prep(), rt_ars_shot(), rt_boolweave(), rt_ct_populate_box(), rt_dsp_shot(), rt_ehy_prep(), rt_ell_prep(), rt_epa_prep(), rt_find_identical_solid(), rt_gettree_leaf(), rt_hf_prep(), rt_nmg_prep(), rt_nmg_shot(), rt_nurb_shot(), rt_pg_prep(), rt_pg_shot(), rt_rec_shot(), rt_rpc_prep(), rt_sph_prep(), rt_submodel_prep(), rt_superell_prep(), rt_tor_prep(), rt_tor_shot(), rt_vlist_solid(), rt_weave0seg(), rt_xxx_prep(), rt_xxx_shot(), and XGLUE().

struct rt_tess_tol rti_ttol

Tessellation tolerance defaults. Definition at line 1776 of file raytrace.h. Referenced by rt_ars_prep(), rt_submodel_prep(), and rt_vlist_solid().

fastf_t rti_max_beam_radius

Max threat radius for FASTGEN cline solid. Definition at line 1777 of file raytrace.h.

point_t mdl_min

min corner of model bounding RPP Definition at line 1779 of file raytrace.h. Referenced by fill_out_bsp(), rt_cell_n_on_ray(), rt_cut_one_axis(), rt_gettrees_muves(), rt_reprep(), rt_shootray(), and rt_shootray_bundle().

point_t mdl_max

max corner of model bounding RPP Definition at line 1780 of file raytrace.h. Referenced by fill_out_bsp(), rt_cell_n_on_ray(), rt_cut_one_axis(), rt_gettrees_muves(), rt_reprep(), rt_shootray(), and rt_shootray_bundle().

point_t rti_pmin

for plotting, min RPP Definition at line 1781 of file raytrace.h. Referenced by rt_plot_all_bboxes(), rt_plot_all_solids(), and rt_plot_cell().

point_t rti_pmax

for plotting, max RPP Definition at line 1782 of file raytrace.h. Referenced by rt_plot_all_bboxes(), rt_plot_all_solids(), and rt_plot_cell().

double rti_radius

radius of model bounding sphere Definition at line 1783 of file raytrace.h.

struct db_i* rti_dbip

prt to Database instance struct Definition at line 1784 of file raytrace.h. Referenced by db_shader_mat(), rt_arb_uv(), rt_find_solid(), rt_free_rti(), rt_gettrees_muves(), rt_load_attrs(), rt_regionfix(), rt_submodel_prep(), rt_unprep(), rt_vlist_solid(), and wdb_get_obj_bounds().

int needprep

needs rt_prep Definition at line 1786 of file raytrace.h. Referenced by rt_cell_n_on_ray(), rt_gettrees_muves(), rt_reprep(), rt_shootray(), rt_shootray_bundle(), and rt_tcl_rt_prep().

struct region** Regions

ptrs to regions [reg_bit] Definition at line 1787 of file raytrace.h.

struct bu_list HeadRegion

ptr of list of regions in model Definition at line 1788 of file raytrace.h. Referenced by dgo_E_cmd(), rt_getregion(), rt_gettrees_muves(), rt_load_attrs(), rt_regionfix(), and wdb_get_obj_bounds().

genptr_t Orca_hash_tbl

Hash table in matrices for ORCA. Definition at line 1789 of file raytrace.h. Referenced by rt_gettrees_muves().

struct bu_ptbl delete_regs

list of region pointers to delete after light_init() Definition at line 1790 of file raytrace.h.

long nregions

total # of regions participating Definition at line 1792 of file raytrace.h.

long nsolids

total # of solids participating Definition at line 1793 of file raytrace.h. Referenced by rt_boolweave(), rt_cut_extend(), rt_cut_one_axis(), rt_find_backing_dist(), rt_find_identical_solid(), rt_gettrees_muves(), rt_shootray(), rt_shootray_bundle(), and rt_submodel_prep().

long rti_nrays

# calls to rt_shootray() Definition at line 1794 of file raytrace.h. Referenced by rt_shootray().

long nmiss_model

rays missed model RPP Definition at line 1795 of file raytrace.h. Referenced by rt_shootray().

long nshots

# of calls to ft_shot() Definition at line 1796 of file raytrace.h.

long nmiss

solid ft_shot() returned a miss Definition at line 1797 of file raytrace.h.

long nhits

solid ft_shot() returned a hit Definition at line 1798 of file raytrace.h.

long nmiss_tree

shots missed sub-tree RPP Definition at line 1799 of file raytrace.h.

long nmiss_solid

shots missed solid RPP Definition at line 1800 of file raytrace.h.

long ndup

duplicate shots at a given solid Definition at line 1801 of file raytrace.h.

long nempty_cells

number of empty NUgrid cells Definition at line 1802 of file raytrace.h. Referenced by rt_pr_cut_info(), and rt_tcl_rt_prep().

union cutter rti_CutHead

Head of cut tree. Definition at line 1803 of file raytrace.h. Referenced by rt_advance_to_next_cell(), rt_find_backing_dist(), and rt_pr_cut_info().

union cutter rti_inf_box

List of infinite solids. Definition at line 1804 of file raytrace.h.

union cutter* rti_CutFree

cut Freelist Definition at line 1805 of file raytrace.h. Referenced by rt_ct_free(), rt_ct_get(), and rt_cut_clean().

struct bu_ptbl rti_busy_cutter_nodes

List of "cutter" mallocs. Definition at line 1806 of file raytrace.h. Referenced by rt_ct_get(), and rt_cut_clean().

struct bu_ptbl rti_cuts_waiting

Definition at line 1807 of file raytrace.h. Referenced by rt_cut_clean(), and rt_cut_optimize_parallel().

int rti_cut_maxlen

max len RPP list in 1 cut bin Definition at line 1808 of file raytrace.h. Referenced by rt_pr_cut_info(), and rt_tcl_rt_prep().

int rti_ncut_by_type[CUT_MAXIMUM+1]

number of cuts by type Definition at line 1809 of file raytrace.h. Referenced by rt_pr_cut_info(), and rt_tcl_rt_prep().

int rti_cut_totobj

# objs in all bins, total Definition at line 1810 of file raytrace.h. Referenced by rt_pr_cut_info(), and rt_tcl_rt_prep().

int rti_cut_maxdepth

max depth of cut tree Definition at line 1811 of file raytrace.h. Referenced by rt_pr_cut_info(), and rt_tcl_rt_prep().

struct soltab** rti_sol_by_type[ID_MAX_SOLID+1]

Definition at line 1812 of file raytrace.h. Referenced by rt_shootray().

int rti_nsol_by_type[ID_MAX_SOLID+1]

Definition at line 1813 of file raytrace.h. Referenced by rt_shootray().

int rti_maxsol_by_type

Definition at line 1814 of file raytrace.h. Referenced by rt_shootray().

int rti_air_discards

# of air regions discarded Definition at line 1815 of file raytrace.h. Referenced by rt_gettree_region_start().

struct bu_hist rti_hist_cellsize

occupancy of cut cells Definition at line 1816 of file raytrace.h. Referenced by rt_pr_cut_info().

struct bu_hist rti_hist_cell_pieces

solid pieces per cell Definition at line 1817 of file raytrace.h. Referenced by rt_pr_cut_info().

struct bu_hist rti_hist_cutdepth

depth of cut tree Definition at line 1818 of file raytrace.h. Referenced by rt_pr_cut_info().

struct soltab** rti_Solids

ptrs to soltab [st_bit] Definition at line 1819 of file raytrace.h.

struct bu_list rti_solidheads[RT_DBNHASH]

active solid lists Definition at line 1820 of file raytrace.h. Referenced by rt_find_identical_solid(), and rt_new_rti().

struct bu_ptbl rti_resources

list of 'struct resource'es encountered Definition at line 1821 of file raytrace.h. Referenced by db_walk_dispatcher(), db_walk_tree(), rt_cell_n_on_ray(), rt_init_resource(), rt_shootray(), rt_shootray_bundle(), rt_submodel_free(), rt_submodel_prep(), rt_submodel_shot(), and wdb_rt_gettrees_cmd().

double rti_nu_gfactor

constant in numcells computation Definition at line 1822 of file raytrace.h. Referenced by rt_nugrid_cut().

int rti_cutlen

goal for # solids per boxnode Definition at line 1823 of file raytrace.h. Referenced by rt_cut_extend().

int rti_cutdepth

goal for depth of NUBSPT cut tree Definition at line 1824 of file raytrace.h. Referenced by rt_ct_optim().

char* rti_treetop

bu_strduped, for rt_submodel rti's only Definition at line 1826 of file raytrace.h. Referenced by rt_init_resource(), and rt_submodel_prep().

int rti_uses

for rt_submodel Definition at line 1827 of file raytrace.h. Referenced by rt_submodel_prep().

int rti_nsolids_with_pieces

# solids using pieces Definition at line 1829 of file raytrace.h. Referenced by rt_gettrees_muves(), rt_res_pieces_clean(), rt_res_pieces_init(), and rt_shootray().

int rti_add_to_new_solids_list

Definition at line 1831 of file raytrace.h. Referenced by rt_gettree_leaf().

struct bu_ptbl rti_new_solids

Definition at line 1832 of file raytrace.h. Referenced by rt_gettree_leaf().

---

The documentation for this struct was generated from the following file:

• include/raytrace.h

---
