db_i Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

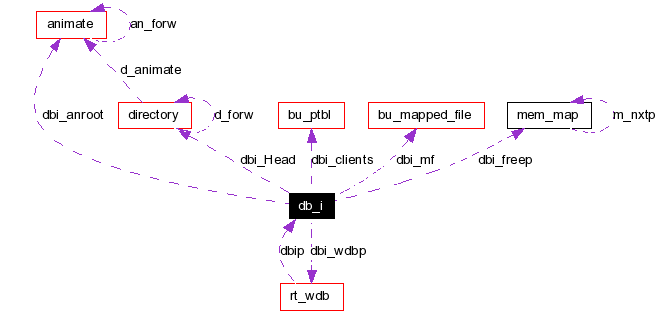

Collaboration diagram for db_i:

[legend]

Data Fields
long	dbi_magic
	magic number
char *	dbi_filename
	file name
int	dbi_read_only
	!0 => read only file
double	dbi_local2base
	local2mm
double	dbi_base2local
	unit conversion factors
char *	dbi_title
	title from IDENT rec
char *const *	dbi_filepath
	search path for aux file opens (convenience var)
directory *	dbi_Head [RT_DBNHASH]
int	dbi_fd
	UNIX file descriptor.
FILE *	dbi_fp
	STDIO file descriptor.
long	dbi_eof
	End+1 pos after db_scan().
long	dbi_nrec
	# records after db_scan()
int	dbi_uses
	# of uses of this struct
mem_map *	dbi_freep
	map of free granules
genptr_t	dbi_inmem
	ptr to in-memory copy
animate *	dbi_anroot
	heads list of anim at root lvl
bu_mapped_file *	dbi_mf
	Only in read-only mode.
bu_ptbl	dbi_clients
	List of rtip's using this db_i.
int	dbi_version
	4 or 5
rt_wdb *	dbi_wdbp
	ptr back to containing rt_wdb

---

Detailed Description

D B _ I

One of these structures is used to describe each separate instance of a BRL-CAD model database ".g" file.

dbi_filepath is a C-style argv array of places to search when opening related files (such as data files for EBM solids or texture-maps). The array and strings are all dynamically allocated.

Definition at line 784 of file raytrace.h.

---

Field Documentation

long dbi_magic

magic number Definition at line 785 of file raytrace.h. Referenced by db_open().

char* dbi_filename

file name Definition at line 787 of file raytrace.h. Referenced by db5_replace_attributes(), db5_scan(), db5_update_attributes(), db_dirbuild(), db_get_version(), db_open(), db_put(), db_put_external(), db_put_external5(), db_read(), db_write(), dgo_nirt_cmd(), dgo_rtcheck_cmd(), rt_regionfix(), rt_submodel_prep(), wdb_concat_cmd(), wdb_dbopen(), wdb_dup_cmd(), wdb_get_obj_bounds(), wdb_get_obj_bounds2(), and wdb_reopen_cmd().

int dbi_read_only

!0 => read only file Definition at line 788 of file raytrace.h. Referenced by db5_realloc(), db5_replace_attributes(), db5_update_attributes(), db_open(), db_open_inmem(), db_put(), db_put_external(), db_put_external5(), db_update_ident(), db_write(), db_zapper(), wdb_comb_std_cmd(), wdb_dbopen(), and wdb_export_external().

double dbi_local2base

local2mm Definition at line 789 of file raytrace.h. Referenced by db_conversions(), db_create_inmem(), db_dirbuild(), db_open(), dgo_nirt_cmd(), dgo_qray_data_to_vlist(), wdb_bot_decimate_cmd(), wdb_nmg_collapse_cmd(), wdb_ocenter_cmd(), wdb_orotate_cmd(), wdb_oscale_cmd(), wdb_otranslate_cmd(), wdb_track_cmd(), and wdb_units_cmd().

double dbi_base2local

unit conversion factors Definition at line 790 of file raytrace.h. Referenced by db_conversions(), db_dirbuild(), db_open(), dgo_get_autoview_cmd(), dgo_nirt_cmd(), wdb_do_list(), wdb_ocenter_cmd(), wdb_title_cmd(), and wdb_units_cmd().

char* dbi_title

title from IDENT rec Definition at line 791 of file raytrace.h. Referenced by db5_update_ident(), db_create_inmem(), db_dirbuild(), db_open(), db_update_ident(), rt_dirbuild(), wdb_title_cmd(), and wdb_units_cmd().

char* const* dbi_filepath

search path for aux file opens (convenience var) Definition at line 792 of file raytrace.h. Referenced by db_open(), rt_ebm_import(), and rt_ebm_import5().

struct directory* dbi_Head[RT_DBNHASH]

Definition at line 794 of file raytrace.h. Referenced by db_ck_directory(), db_dircheck(), db_dump(), db_get_directory_size(), db_is_directory_non_empty(), db_lookup(), db_open(), db_open_inmem(), db_regexp_match_all(), db_update_nref(), wdb_find_cmd(), wdb_keep_cmd(), wdb_killall_cmd(), wdb_move_all_cmd(), wdb_rmap_cmd(), wdb_tops_cmd(), and wdb_xpush_cmd().

int dbi_fd

UNIX file descriptor. Definition at line 795 of file raytrace.h. Referenced by db_open(), db_open_inmem(), db_read(), db_sync(), and db_write().

FILE* dbi_fp

STDIO file descriptor. Definition at line 796 of file raytrace.h. Referenced by db5_scan(), db_dirbuild(), db_get_version(), db_open(), db_open_inmem(), db_read(), db_sync(), and db_write().

long dbi_eof

End+1 pos after db_scan(). Definition at line 797 of file raytrace.h. Referenced by db5_realloc(), db5_scan(), db_open(), db_open_inmem(), and db_read().

long dbi_nrec

# records after db_scan() Definition at line 798 of file raytrace.h.

int dbi_uses

# of uses of this struct Definition at line 799 of file raytrace.h. Referenced by db_clone_dbi(), and db_open().

struct mem_map* dbi_freep

map of free granules Definition at line 800 of file raytrace.h. Referenced by db5_diradd_handler(), db5_realloc(), db_delete(), wdb_concat_cmd(), and wdb_dup_cmd().

genptr_t dbi_inmem

ptr to in-memory copy Definition at line 801 of file raytrace.h. Referenced by db5_scan(), db_open(), db_read(), and db_write().

struct animate* dbi_anroot

heads list of anim at root lvl Definition at line 802 of file raytrace.h. Referenced by db_add_anim(), and db_follow_path().

struct bu_mapped_file* dbi_mf

Only in read-only mode. Definition at line 803 of file raytrace.h. Referenced by db5_scan(), db_open(), db_open_inmem(), and rt_submodel_prep().

struct bu_ptbl dbi_clients

List of rtip's using this db_i. Definition at line 804 of file raytrace.h. Referenced by db_clone_dbi(), db_close_client(), db_open(), and rt_submodel_prep().

int dbi_version

4 or 5 Definition at line 805 of file raytrace.h. Referenced by db5_get_attributes(), db5_put_color_table(), db5_replace_attributes(), db5_update_attributes(), db_delete(), db_dirbuild(), db_functree(), db_get_external(), db_getmrec(), db_inmem(), db_open(), db_preorder_traverse(), db_put_external(), db_put_external5(), db_update_ident(), db_zapper(), rt_db_external5_to_internal5(), rt_db_get_internal(), rt_db_get_internal5(), rt_db_put_internal(), rt_db_put_internal5(), rt_generic_xform(), rt_gettrees_muves(), rt_load_attrs(), wdb_attr_cmd(), wdb_binary_cmd(), wdb_color_cmd(), wdb_concat_cmd(), wdb_dir_check(), wdb_dir_check5(), wdb_dup_cmd(), wdb_export_external(), wdb_hide_cmd(), wdb_move_all_cmd(), wdb_put_internal(), wdb_rmap_cmd(), wdb_smooth_bot_cmd(), wdb_tops_cmd(), wdb_unhide_cmd(), and wdb_version_cmd().

struct rt_wdb* dbi_wdbp

ptr back to containing rt_wdb Definition at line 806 of file raytrace.h. Referenced by db_create_inmem(), and wdb_dbopen().

---

The documentation for this struct was generated from the following file:

• include/raytrace.h

---
