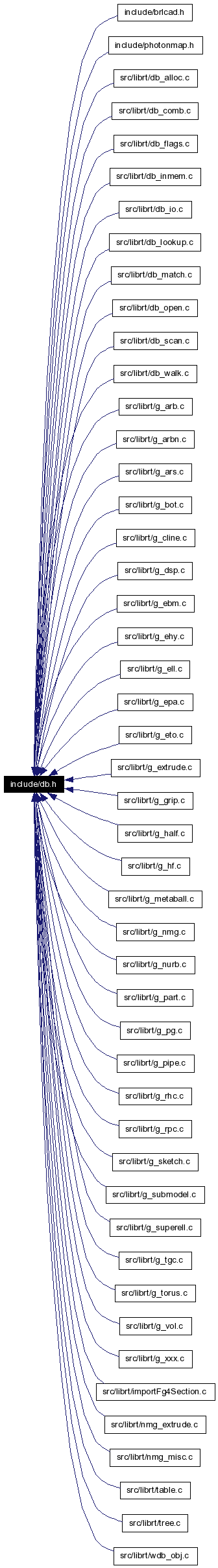

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| union | record |
| struct | record::ident |
| struct | record::solidrec |
| struct | record::combination |
| struct | record::member |
| struct | record::material_rec |
| struct | record::B_solid |
| struct | record::b_surf |
| struct | record::polyhead |
| struct | record::polydata |
| struct | record::ars_rec |
| struct | record::ars_ext |
| struct | record::strsol |
| struct | record::arbn_rec |
| struct | record::pipewire_rec |
| struct | record::pipewire_rec::exported_pipept |
| struct | record::particle_rec |
| struct | record::nmg_rec |
| struct | record::extr_rec |
| struct | record::sketch_rec |
| struct | record::cline_rec |
| struct | record::bot_rec |
Defines | |
| #define | DB_H seen |
| #define | NAMESIZE 16 |
| #define | NAMEMOVE(from, to) (void)strncpy(to, from, NAMESIZE) |
| #define | DB_MINREC 128 |
| #define | RECORD_DEFINED |
| #define | ID_IDENT 'I' |
| #define | ID_SOLID 'S' |
| #define | ID_COMB 'C' |
| #define | ID_MEMB 'M' |
| #define | ID_ARS_A 'A' |
| #define | ID_ARS_B 'B' |
| #define | ID_FREE 'F' |
| #define | ID_P_HEAD 'P' |
| #define | ID_P_DATA 'Q' |
| #define | ID_BSOLID 'b' |
| #define | ID_BSURF 'D' |
| #define | ID_MATERIAL 'm' |
| #define | DBID_STRSOL 's' |
| #define | DBID_ARBN 'n' |
| #define | DBID_PIPE 'w' |
| #define | DBID_PARTICLE 'p' |
| #define | DBID_NMG 'N' |
| #define | DBID_SKETCH 'd' |
| #define | DBID_EXTR 'e' |
| #define | DBID_CLINE 'c' |
| #define | DBID_BOT 't' |
| #define | ID_NO_UNIT 0 |
| #define | ID_MM_UNIT 1 |
| #define | ID_CM_UNIT 2 |
| #define | ID_M_UNIT 3 |
| #define | ID_IN_UNIT 4 |
| #define | ID_FT_UNIT 5 |
| #define | ID_UM_UNIT 6 |
| #define | ID_KM_UNIT 7 |
| #define | ID_YD_UNIT 8 |
| #define | ID_MI_UNIT 9 |
| #define | ID_VERSION "v4" |
| #define | ID_BY_UNKNOWN 0 |
| #define | ID_BY_VAX 1 |
| #define | ED_BY_IBM 2 |
| #define | ID_FT_UNKNOWN 0 |
| #define | ID_FT_VAX 1 |
| #define | ID_FT_IBM 2 |
| #define | ID_FT_IEEE 3 |
| #define | ID_FT_CRAY 4 |
| #define | GENTGC 18 |
| #define | GENELL 19 |
| #define | GENARB8 20 |
| #define | ARS 21 |
| #define | ARSCONT 22 |
| #define | HALFSPACE 24 |
| #define | SPLINE 25 |
| #define | RPC 26 |
| #define | RHC 27 |
| #define | EPA 28 |
| #define | EHY 29 |
| #define | ETO 30 |
| #define | GRP 31 |
| #define | SUPERELL 32 |
| #define | RPP 1 |
| #define | BOX 2 |
| #define | RAW 3 |
| #define | ARB4 4 |
| #define | ARB5 5 |
| #define | ARB6 6 |
| #define | ARB7 7 |
| #define | ARB8 8 |
| #define | ELL 9 |
| #define | ELL1 10 |
| #define | SPH 11 |
| #define | RCC 12 |
| #define | REC 13 |
| #define | TRC 14 |
| #define | TEC 15 |
| #define | TOR 16 |
| #define | TGC 17 |
| #define | ELLG 23 |
| #define | s_tgc_V s_values[0] |
| #define | s_tgc_H s_values[3] |
| #define | s_tgc_A s_values[6] |
| #define | s_tgc_B s_values[9] |
| #define | s_tgc_C s_values[12] |
| #define | s_tgc_D s_values[15] |
| #define | s_tor_V s_values[0] |
| #define | s_tor_H s_values[3] |
| #define | s_tor_A s_values[6] |
| #define | s_tor_B s_values[9] |
| #define | s_tor_C s_values[12] |
| #define | s_tor_D s_values[15] |
| #define | s_tor_E s_values[18] |
| #define | s_tor_F s_values[21] |
| #define | s_ell_V s_values[0] |
| #define | s_ell_A s_values[3] |
| #define | s_ell_B s_values[6] |
| #define | s_ell_C s_values[9] |
| #define | s_superell_V s_values[0] |
| #define | s_superell_A s_values[3] |
| #define | s_superell_B s_values[6] |
| #define | s_superell_C s_values[9] |
| #define | s_superell_n s_values[12] |
| #define | s_superell_e s_values[13] |
| #define | s_half_N s_values[0] |
| #define | s_half_d s_values[3] |
| #define | s_grip_C s_values[0] |
| #define | s_grip_N s_values[3] |
| #define | s_grip_m s_values[6] |
| #define | DBV4_NON_REGION ' ' |
| #define | DBV4_NON_REGION_NULL '\0' |
| #define | DBV4_REGION 'R' |
| #define | DBV4_REGION_FASTGEN_PLATE 'P' |
| #define | DBV4_REGION_FASTGEN_VOLUME 'V' |
| #define | DB_INH_LOWER 0 |
| #define | DB_INH_HIGHER 1 |
| #define | INTERSECT '+' |
| #define | SUBTRACT '-' |
| #define | UNION 'u' |
| #define | DB_SS_NGRAN 8 |
| #define | DB_SS_LEN (DB_SS_NGRAN*DB_MINREC-2*NAMESIZE-2) |
| #define | DB_RECORD_NULL ((union record *)0) |
| #define | DB_ARGS(args) () |
Typedefs | |
| typedef float | dbfloat_t |
Functions | |
| void rt_fastf_float | DB_ARGS ((fastf_t *ff, const dbfloat_t *fp, int n)) |
| void rt_mat_dbmat | DB_ARGS ((fastf_t *ff, const dbfloat_t *dbp)) |
| void rt_dbmat_mat | DB_ARGS ((dbfloat_t *dbp, const fastf_t *ff)) |
All records are rounded up to have a fixed length; each such database record is also known as a "granule", and is the smallest unit of database storage.
Every granule can be identified by the first byte, which can be accessed by the u_id name. Note that the u_id field is not valid when writing the actual data for splines.
Each granule is read into a "union record", and is then processed based on the value of u_id. Each granule will have one of these formats: A Free record An ID record A SOLID record A COMBINATION record, followed by multiple MEMBER records An ARS `A' (header) record, followed by multiple ARS `B' (data) records A Polygon header record, followed by multiple Polygon data records A B-spline solid header record, followed by multiple B-spline surface records, followed by d_kv_size[0] floats, d_kv_size[1] floats, padded to d_nknots granules, followed by ctl_size[0]*ctl_size[1]*geom_type floats, padded to d_nctls granules.
The records are stored as binary records corresponding to PDP-11 and VAX C structs, so padding must be supplied explicitly for alignment.
For the time being, the representation of the floating point numbers in the database is machine-specific, requiring conversion to ASCII (via g2asc) and back to binary (via asc2g) when exchanging between machines of dissimilar types. In time, an external representation for floats might be implemented.
Definition in file db.h.
|
|
Definition at line 99 of file db.h. Referenced by db_fwrite_ident(), db_scan(), and db_update_ident(). |
|
|
|
Definition at line 101 of file db.h. Referenced by db_scan(), rt_comb_export4(), and rt_comb_import4(). |
|
|
Definition at line 102 of file db.h. Referenced by db_scan(), rt_comb_export4(), and rt_comb_import4(). |
|
|
Definition at line 103 of file db.h. Referenced by db_scan(), rt_ars_export(), rt_ars_import(), and rt_id_solid(). |
|
|
Definition at line 104 of file db.h. Referenced by db_scan(), rt_ars_export(), and rt_ars_rd_curve(). |
|
|
Definition at line 105 of file db.h. Referenced by db_alloc(), db_scan(), and db_zapper(). |
|
|
Definition at line 106 of file db.h. Referenced by db_scan(), rt_id_solid(), rt_pg_export(), and rt_pg_import(). |
|
|
Definition at line 107 of file db.h. Referenced by db_scan(), rt_pg_export(), and rt_pg_import(). |
|
|
Definition at line 108 of file db.h. Referenced by db_scan(), rt_id_solid(), and rt_nurb_import(). |
|
|
Definition at line 109 of file db.h. Referenced by db_scan(), and rt_nurb_import(). |
|
|
Definition at line 110 of file db.h. Referenced by db_scan(). |
|
|
Definition at line 111 of file db.h. Referenced by db_scan(), rt_dsp_export(), rt_dsp_import(), rt_ebm_export(), rt_ebm_import(), rt_hf_export(), rt_hf_import(), rt_id_solid(), rt_submodel_export(), rt_submodel_import(), rt_vol_export(), and rt_vol_import(). |
|
|
Definition at line 112 of file db.h. Referenced by db_scan(), rt_arbn_export(), rt_arbn_import(), and rt_id_solid(). |
|
|
Definition at line 113 of file db.h. Referenced by db_scan(), rt_id_solid(), rt_pipe_export(), and rt_pipe_import(). |
|
|
Definition at line 114 of file db.h. Referenced by db_scan(), rt_id_solid(), rt_part_export(), and rt_part_import(). |
|
|
Definition at line 115 of file db.h. Referenced by db_scan(), rt_id_solid(), rt_nmg_import(), and rt_nmg_import_internal(). |
|
|
Definition at line 116 of file db.h. Referenced by db_scan(), rt_id_solid(), and rt_sketch_import(). |
|
|
Definition at line 117 of file db.h. Referenced by db_scan(), rt_extrude_export(), rt_extrude_import(), and rt_id_solid(). |
|
|
Definition at line 118 of file db.h. Referenced by db_scan(), rt_cline_export(), rt_cline_import(), and rt_id_solid(). |
|
|
Definition at line 119 of file db.h. Referenced by db_scan(), rt_bot_export(), rt_bot_import(), and rt_id_solid(). |
|
|
Definition at line 127 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 128 of file db.h. Referenced by db_conversions(), db_update_ident(), and db_v4_get_units_code(). |
|
|
Definition at line 129 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 130 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 131 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 132 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 134 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 135 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 136 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 137 of file db.h. Referenced by db_conversions(), and db_v4_get_units_code(). |
|
|
Definition at line 139 of file db.h. Referenced by db_fwrite_ident(), and db_scan(). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Definition at line 158 of file db.h. Referenced by rt_tgc_export(). |
|
|
Definition at line 159 of file db.h. Referenced by rt_ell_export(). |
|
|
Definition at line 160 of file db.h. Referenced by rt_arb_export(). |
|
|
Definition at line 161 of file db.h. Referenced by rt_ars_export(). |
|
|
Definition at line 162 of file db.h. Referenced by rt_ars_export(). |
|
|
Definition at line 163 of file db.h. Referenced by rt_hlf_export(). |
|
|
|
|
|
Definition at line 165 of file db.h. Referenced by rt_rpc_export(). |
|
|
Definition at line 166 of file db.h. Referenced by rt_rhc_export(). |
|
|
Definition at line 167 of file db.h. Referenced by rt_epa_export(). |
|
|
Definition at line 168 of file db.h. Referenced by rt_ehy_export(). |
|
|
Definition at line 169 of file db.h. Referenced by rt_eto_export(). |
|
|
Definition at line 170 of file db.h. Referenced by rt_grp_export(). |
|
|
Definition at line 171 of file db.h. Referenced by rt_superell_export(). |
|
|
|
|
|
|
|
|
|
|
|
Definition at line 177 of file db.h. Referenced by rt_arb_edit(), and wdb_move_arb_edge_cmd(). |
|
|
Definition at line 178 of file db.h. Referenced by rt_arb_edit(), and wdb_move_arb_edge_cmd(). |
|
|
Definition at line 179 of file db.h. Referenced by rt_arb_edit(), and wdb_move_arb_edge_cmd(). |
|
|
Definition at line 180 of file db.h. Referenced by rt_arb_edit(), and wdb_move_arb_edge_cmd(). |
|
|
Definition at line 181 of file db.h. Referenced by rt_arb_edit(), and wdb_move_arb_edge_cmd(). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Definition at line 189 of file db.h. Referenced by rt_tor_export(). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Definition at line 232 of file db.h. Referenced by db_scan(), and rt_comb_export4(). |
|
|
|
|
|
Definition at line 234 of file db.h. Referenced by db_scan(), and rt_comb_export4(). |
|
|
Definition at line 235 of file db.h. Referenced by db_scan(), and rt_comb_export4(). |
|
|
Definition at line 236 of file db.h. Referenced by db_scan(), and rt_comb_export4(). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Definition at line 343 of file db.h. Referenced by db_scan(), rt_dsp_export(), rt_ebm_export(), rt_hf_export(), rt_submodel_export(), and rt_vol_export(). |
|
|
Definition at line 344 of file db.h. Referenced by rt_dsp_export(), rt_ebm_export(), rt_hf_export(), rt_submodel_export(), and rt_vol_export(). |
