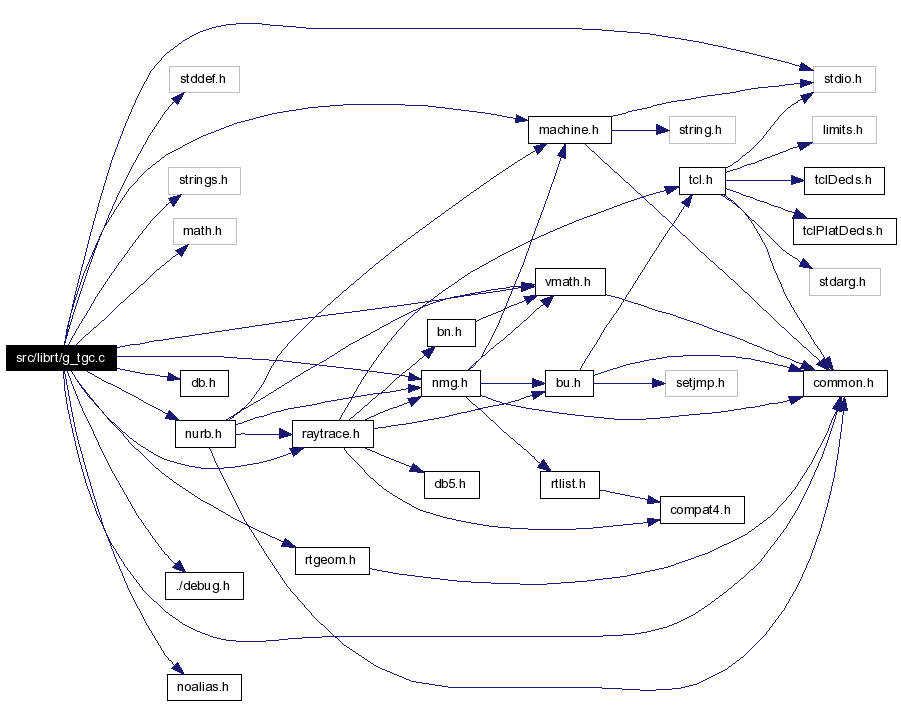

#include "common.h"#include <stddef.h>#include <stdio.h>#include <strings.h>#include <math.h>#include "machine.h"#include "vmath.h"#include "db.h"#include "nmg.h"#include "raytrace.h"#include "rtgeom.h"#include "./debug.h"#include "nurb.h"#include "noalias.h"Include dependency graph for g_tgc.c:
Go to the source code of this file.
Data Structures | |
| struct | tgc_specific |
| struct | tgc_pts |
Defines | |
| #define | VLARGE 1000000.0 |
| #define | ALPHA(x, y, c, d) ( (x)*(x)*(c) + (y)*(y)*(d) ) |
| #define | VEXCHANGE(a, b, tmp) { VMOVE(tmp,a); VMOVE(a,b); VMOVE(b,tmp); } |
| #define | TGC_MM(v) VMINMAX( stp->st_min, stp->st_max, v ); |
| #define | TGC_NORM_BODY (1) |
| #define | TGC_NORM_TOP (2) |
| #define | TGC_NORM_BOT (3) |
| #define | RT_TGC_SEG_MISS(SEG) (SEG).seg_stp=RT_SOLTAB_NULL |
| #define | OUT 0 |
| #define | IN 1 |
| #define | MAX_RATIO 10.0 |
| #define | RAT .707107 |
Functions | |
| int | rt_rec_prep (struct soltab *stp, struct rt_db_internal *ip, struct rt_i *rtip) |
| void | rt_pt_sort (register fastf_t *t, int npts) |

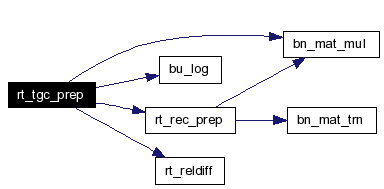

| int | rt_tgc_prep (struct soltab *stp, struct rt_db_internal *ip, struct rt_i *rtip) |
| void | rt_tgc_print (register const struct soltab *stp) |
| int | rt_tgc_shot (struct soltab *stp, register struct xray *rp, struct application *ap, struct seg *seghead) |
| void | rt_tgc_vshot (struct soltab **stp, register struct xray **rp, struct seg *segp, int n, struct application *ap) |
| void | rt_pt_sort (register fastf_t t[], int npts) |
| void | rt_tgc_norm (register struct hit *hitp, struct soltab *stp, register struct xray *rp) |
| void | rt_tgc_uv (struct application *ap, struct soltab *stp, register struct hit *hitp, register struct uvcoord *uvp) |
| void | rt_tgc_free (struct soltab *stp) |
| int | rt_tgc_class (void) |
| int | rt_tgc_import (struct rt_db_internal *ip, const struct bu_external *ep, register const fastf_t *mat, const struct db_i *dbip) |
| int | rt_tgc_export (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip) |
| int | rt_tgc_import5 (struct rt_db_internal *ip, const struct bu_external *ep, register const fastf_t *mat, const struct db_i *dbip) |
| int | rt_tgc_export5 (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip) |
| int | rt_tgc_describe (struct bu_vls *str, const struct rt_db_internal *ip, int verbose, double mm2local) |
| void | rt_tgc_ifree (struct rt_db_internal *ip) |
| int | rt_tgc_plot (struct bu_list *vhead, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol) |
| void | rt_tgc_curve (register struct curvature *cvp, register struct hit *hitp, struct soltab *stp) |
| int | rt_tgc_tess (struct nmgregion **r, struct model *m, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol) |
| int | rt_tgc_tnurb (struct nmgregion **r, struct model *m, struct rt_db_internal *ip, const struct bn_tol *tol) |
Variables | |
| const struct bu_structparse | rt_tgc_parse [] |
| fastf_t | nmg_tgc_unitcircle [36] |
| fastf_t | nmg_uv_unitcircle [27] |
Method - TGC: solve quartic equation of cone and line
Authors - Edwin O. Davisson (Analysis) Jeff Hanes (Programming) Gary Moss (Improvement) Mike Muuss (Optimization) Peter F. Stiller (Curvature) Phillip Dykstra (Curvature) Bill Homer (Vectorization) Paul Stay (Convert to tnurbs)
Source - SECAD/VLD Computing Consortium, Bldg 394 The U. S. Army Ballistic Research Laboratory Aberdeen Proving Ground, Maryland 21005
Definition in file g_tgc.c.
|
|
Definition at line 100 of file g_tgc.c. Referenced by rt_tgc_prep(). |
|
|
|
|
|
Referenced by rt_tgc_prep(). |
|
|
Referenced by rt_tgc_prep(). |
|
|
Definition at line 496 of file g_tgc.c. Referenced by rt_tgc_curve(), rt_tgc_norm(), and rt_tgc_uv(). |
|
|
Definition at line 497 of file g_tgc.c. Referenced by rt_tgc_norm(), and rt_tgc_uv(). |
|
|
Definition at line 498 of file g_tgc.c. Referenced by rt_tgc_norm(), and rt_tgc_uv(). |
|
|
|
|
|
|
|
|
|
|
|
Definition at line 1909 of file g_tgc.c. Referenced by rt_tgc_tess(). |
|
|
|
|
||||||||||||
|
|
|
||||||||||||||||
|
|
R T _ T G C _ P R I N T Definition at line 468 of file g_tgc.c. References bn_mat_print(), bu_log(), tgc_specific::tgc_A, tgc_specific::tgc_AAdCC, tgc_specific::tgc_AD_CB, tgc_specific::tgc_B, tgc_specific::tgc_BBdDD, tgc_specific::tgc_C, tgc_specific::tgc_CdAm1, tgc_specific::tgc_D, tgc_specific::tgc_DdBm1, tgc_specific::tgc_invRtShSc, tgc_specific::tgc_N, tgc_specific::tgc_ScShR, tgc_specific::tgc_sH, tgc_specific::tgc_V, and VPRINT. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ S H O T Intersect a ray with a truncated general cone, where all constant terms have been computed by rt_tgc_prep(). NOTE: All lines in this function are represented parametrically by a point, P( Px, Py, Pz ) and a unit direction vector, D = iDx + jDy + kDz. Any point on a line can be expressed by one variable 't', where X = Dx*t + Px, Y = Dy*t + Py, Z = Dz*t + Pz. First, convert the line to the coordinate system of a "stan- dard" cone. This is a cone whose base lies in the X-Y plane, and whose H (now H') vector is lined up with the Z axis. Then find the equation of that line and the standard cone as an equation in 't'. Solve the equation using a general polynomial root finder. Use those values of 't' to compute the points of intersection in the original coordinate system. Definition at line 525 of file g_tgc.c. References bu_log(), LOCAL, MAGNITUDE, MAT4X3VEC, NEAR_ZERO, R, RT_PCOEF_TOL, SMALL_FASTF, soltab::st_specific, tgc_specific::tgc_ScShR, tgc_specific::tgc_V, V3ARGS, VDOT, VJOIN1, VSCALE, VSUB2, and Z. Here is the call graph for this function:  |
|
||||||||||||||||||||||||
|
R T _ T G C _ V S H O T The Homer vectorized version. Definition at line 903 of file g_tgc.c. References bu_malloc(), LOCAL, MAGNITUDE, MAT4X3VEC, NEAR_ZERO, R, RT_PCOEF_TOL, tgc_specific::tgc_AD_CB, tgc_specific::tgc_CdAm1, tgc_specific::tgc_DdBm1, tgc_specific::tgc_ScShR, tgc_specific::tgc_V, VDOT, VMOVE, VSCALE, VSUB2, X, and Y. Here is the call graph for this function:  |
|
||||||||||||||||
|
R T _ T G C _ N O R M Compute the normal to the cone, given a point on the STANDARD CONE centered at the origin of the X-Y plane. The gradient of the cone at that point is the normal vector in the standard space. This vector will need to be transformed back to the coordinate system of the original cone in order to be useful. Then the transformed vector must be 'unitized.' NOTE: The transformation required is NOT the inverse of the of the rotation to the standard cone, due to the shear involved in the mapping. The inverse maps points back to points, but it is the transpose which maps normals back to normals. If you really want to know why, talk to Ed Davisson or Peter Stiller. The equation for the standard cone *without* scaling is: (rotated the sheared) f(X,Y,Z) = X**2 * Q**2 + Y**2 * R**2 - R**2 * Q**2 = 0 where, R = a + ((c - a)/|H'|)*Z Q = b + ((d - b)/|H'|)*Z When the equation is scaled so the A, B, and the sheared H are unit length, as is done here, the equation can be coerced back into this same form with R and Q now being: R = 1 + (c/a - 1)*Z Q = 1 + (d/b - 1)*Z The gradient of f(x,y,z) = 0 is: df/dx = 2 * x * Q**2 df/dy = 2 * y * R**2 df/dz = x**2 * 2 * Q * dQ/dz + y**2 * 2 * R * dR/dz
where, dR/dz = (c/a - 1) dQ/dz = (d/b - 1) [in the *unscaled* case these would be (c - a)/|H'| and (d - b)/|H'|] Since the gradient (normal) needs to be rescaled to unit length after mapping back to absolute coordinates, we divide the 2 out of the above expressions. Definition at line 1416 of file g_tgc.c. References bu_log(), FAST, LOCAL, MAT4X3VEC, R, soltab::st_specific, tgc_specific::tgc_CdAm1, tgc_specific::tgc_DdBm1, tgc_specific::tgc_invRtShSc, tgc_specific::tgc_N, TGC_NORM_BODY, TGC_NORM_BOT, TGC_NORM_TOP, VJOIN1, VMOVE, VREVERSE, VUNITIZE, X, and Y. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ U V Definition at line 1459 of file g_tgc.c. References bn_twopi, FAST, LOCAL, MAT4X3VEC, soltab::st_specific, tgc_specific::tgc_A, tgc_specific::tgc_B, tgc_specific::tgc_C, tgc_specific::tgc_D, TGC_NORM_BODY, TGC_NORM_BOT, TGC_NORM_TOP, tgc_specific::tgc_ScShR, tgc_specific::tgc_V, VSUB2, X, and Y. |
|
|
R T _ T G C _ F R E E Definition at line 1516 of file g_tgc.c. References bu_free(), and soltab::st_specific. Here is the call graph for this function:  |
|
|
|
|
||||||||||||||||||||
|
R T _ T G C _ I M P O R T Import a TGC from the database format to the internal format. Apply modeling transformations as well. Definition at line 1538 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, BU_CK_EXTERNAL, bu_log(), bu_malloc(), rt_tgc_internal::c, rt_tgc_internal::d, DB5_MAJORTYPE_BRLCAD, bu_external::ext_buf, rt_tgc_internal::h, ID_SOLID, ID_TGC, rt_db_internal::idb_major_type, rt_db_internal::idb_meth, rt_db_internal::idb_ptr, LOCAL, rt_tgc_internal::magic, MAT4X3PNT, MAT4X3VEC, RT_CK_DB_INTERNAL, rt_fastf_float(), RT_TGC_INTERNAL_MAGIC, record::s, record::solidrec::s_values, record::u_id, and rt_tgc_internal::v. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ E X P O R T Definition at line 1578 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, bu_calloc(), BU_CK_EXTERNAL, rt_tgc_internal::c, rt_tgc_internal::d, bu_external::ext_buf, bu_external::ext_nbytes, GENTGC, rt_tgc_internal::h, ID_REC, ID_SOLID, ID_TGC, rt_db_internal::idb_ptr, RT_CK_DB_INTERNAL, RT_TGC_CK_MAGIC, record::s, record::solidrec::s_id, record::solidrec::s_type, record::solidrec::s_values, rt_tgc_internal::v, and VSCALE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ I M P O R T 5 Import a TGC from the database format to the internal format. Apply modeling transformations as well. Definition at line 1614 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, BU_ASSERT_LONG, BU_CK_EXTERNAL, bu_malloc(), rt_tgc_internal::c, rt_tgc_internal::d, DB5_MAJORTYPE_BRLCAD, bu_external::ext_buf, bu_external::ext_nbytes, rt_tgc_internal::h, ID_TGC, rt_db_internal::idb_major_type, rt_db_internal::idb_meth, rt_db_internal::idb_ptr, rt_tgc_internal::magic, MAT4X3PNT, MAT4X3VEC, ntohd(), RT_CK_DB_INTERNAL, RT_TGC_INTERNAL_MAGIC, SIZEOF_NETWORK_DOUBLE, and rt_tgc_internal::v. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ E X P O R T 5 Definition at line 1650 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, BU_CK_EXTERNAL, bu_malloc(), rt_tgc_internal::c, rt_tgc_internal::d, bu_external::ext_buf, bu_external::ext_nbytes, rt_tgc_internal::h, htond(), ID_REC, ID_TGC, rt_db_internal::idb_ptr, RT_CK_DB_INTERNAL, RT_TGC_CK_MAGIC, SIZEOF_NETWORK_DOUBLE, rt_tgc_internal::v, and VSCALE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|

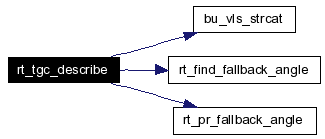

R T _ T G C _ D E S C R I B E Make human-readable formatted presentation of this solid. First line describes type of solid. Additional lines are indented one tab, and give parameter values. Definition at line 1686 of file g_tgc.c. References bu_vls_strcat(), rt_db_internal::idb_ptr, INTCLAMP, MAGNITUDE, rt_find_fallback_angle(), rt_pr_fallback_angle(), RT_TGC_CK_MAGIC, VCROSS, VDIVIDE_TOL, VSCALE, VUNITIZE, X, and Y. Here is the call graph for this function:  |
|
|

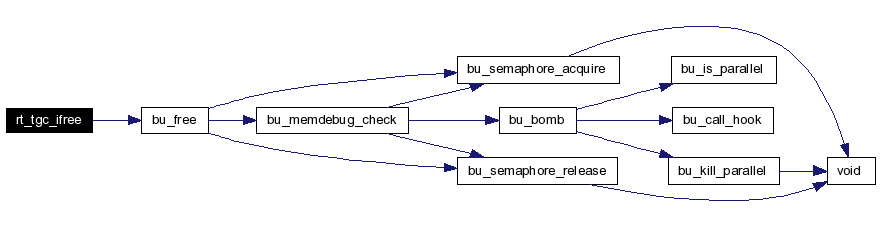

R T _ T G C _ I F R E E Free the storage associated with the rt_db_internal version of this solid. Definition at line 1768 of file g_tgc.c. References bu_free(), GENPTR_NULL, rt_db_internal::idb_ptr, and RT_CK_DB_INTERNAL. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
R T _ T G C _ P L O T Definition at line 1779 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, BN_VLIST_LINE_DRAW, BN_VLIST_LINE_MOVE, rt_tgc_internal::c, rt_tgc_internal::d, ELEMENTS_PER_VECT, rt_tgc_internal::h, rt_db_internal::idb_ptr, LOCAL, RT_ADD_VLIST, RT_CK_DB_INTERNAL, rt_ell_16pts(), RT_TGC_CK_MAGIC, top(), rt_tgc_internal::v, and VADD2. Here is the call graph for this function:  |
|
||||||||||||||||
|
R T _ T G C _ C U R V E Return the curvature of the TGC. Definition at line 1821 of file g_tgc.c. References bn_eigen2x2(), bn_mat_mul(), bn_vec_ortho(), M, MAGNITUDE, MAT4X3VEC, MAT_IDN, R, soltab::st_specific, tgc_specific::tgc_CdAm1, tgc_specific::tgc_DdBm1, tgc_specific::tgc_invRtShSc, TGC_NORM_BODY, tgc_specific::tgc_ScShR, VCOMB2, VCROSS, VDOT, VUNITIZE, X, and Y. Here is the call graph for this function:  |
|
||||||||||||||||||||||||
|
Definition at line 1913 of file g_tgc.c. References A, rt_tgc_internal::a, rt_tess_tol::abs, rt_tgc_internal::b, bn_halfpi, bn_pi, bu_log(), bu_malloc(), rt_tgc_internal::c, rt_tgc_internal::d, bn_tol::dist, rt_tgc_internal::h, rt_db_internal::idb_ptr, int, MAGNITUDE, MAX_FASTF, MAX_RATIO, rt_tess_tol::norm, rt_tess_tol::rel, RT_CK_DB_INTERNAL, RT_TGC_CK_MAGIC, VCROSS, VDOT, VJOIN2, VMOVE, and VSCALE. Here is the call graph for this function:  |
|
||||||||||||||||||||
|

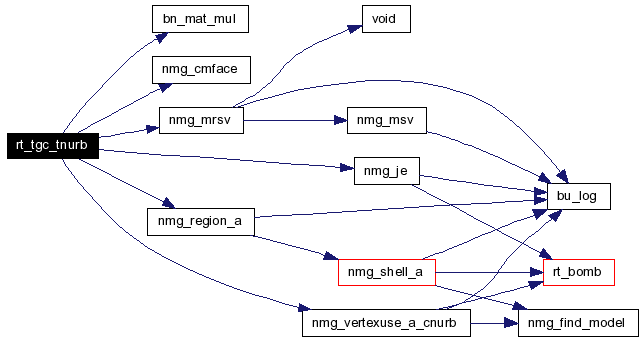

R T _ T G C _ T N U R B "Tessellate an TGC into a trimmed-NURB-NMG data structure. Computing NRUB surfaces and trimming curves to interpolate the parameters of the TGC The process is to create the nmg topology of the TGC fill it in with a unit cylinder geometry (i.e. unitcircle at the top (0,0,1) unit cylinder of radius 1, and unitcirlce at the bottom), and then scale it with a perspective matrix derived from the parameters of the tgc. The result is three trimmed nub surfaces which interpolate the parameters of the original TGC. Returns - -1 failure 0 OK. *r points to nmgregion that holds this tesselation Definition at line 2653 of file g_tgc.c. References rt_tgc_internal::a, rt_tgc_internal::b, bn_mat_mul(), BU_LIST_FIRST, BU_LIST_LAST, BU_LIST_NEXT, rt_tgc_internal::c, rt_tgc_internal::d, loopuse::down_hd, edgeuse::eumate_p, rt_tgc_internal::h, rt_db_internal::idb_ptr, edgeuse::l, LOCAL, faceuse::lu_hd, MAGNITUDE, MAT_IDN, NMG_CK_EDGEUSE, NMG_CK_LOOPUSE, nmg_cmface(), nmg_je(), nmg_mrsv(), nmg_region_a(), nmg_vertexuse_a_cnurb(), NULL, RT_CK_DB_INTERNAL, RT_TGC_CK_MAGIC, rt_tgc_internal::v, VCROSS, VMOVE, VSET, edgeuse::vu_p, and VUNITIZE. Here is the call graph for this function:  |
|
|
Initial value: {
{ "%f", 3, "V", bu_offsetof(struct rt_tgc_internal, v[X]), BU_STRUCTPARSE_FUNC_NULL },
{ "%f", 3, "H", bu_offsetof(struct rt_tgc_internal, h[X]), BU_STRUCTPARSE_FUNC_NULL },
{ "%f", 3, "A", bu_offsetof(struct rt_tgc_internal, a[X]), BU_STRUCTPARSE_FUNC_NULL },
{ "%f", 3, "B", bu_offsetof(struct rt_tgc_internal, b[X]), BU_STRUCTPARSE_FUNC_NULL },
{ "%f", 3, "C", bu_offsetof(struct rt_tgc_internal, c[X]), BU_STRUCTPARSE_FUNC_NULL },
{ "%f", 3, "D", bu_offsetof(struct rt_tgc_internal, d[X]), BU_STRUCTPARSE_FUNC_NULL },
{ {'\0','\0','\0','\0'}, 0, (char *)NULL, 0, BU_STRUCTPARSE_FUNC_NULL }
}
|
|
|
Initial value: |
|
|
Initial value: |
