Structure Parse/Print/read/write
[libbu (utility functions)]

Collaboration diagram for Structure Parse/Print/read/write:


Files

file  parse.c
 routines for parsing arbitrary structures

Data Structures

struct  bu_structparse
struct  bu_external

Defines

#define bu_offsetofarray(_t, _m)   (int)( (((_t *)0)->_m))
#define bu_offsetof(_t, _m)   (int)(&(((_t *)0)->_m))
#define bu_byteoffset(_i)   ((int)(((char *)&(_i))-((char *)0)))
#define BU_STRUCTPARSE_FUNC_NULL   ((void (*)())0)
#define BU_EXTERNAL_MAGIC   0x768dbbd0
#define BU_INIT_EXTERNAL(_p)
#define BU_CK_EXTERNAL(_p)   BU_CKMAG(_p, BU_EXTERNAL_MAGIC, "bu_external")
#define CKMEM(_len)
#define BU_GETPUT_MAGIC_1   0x15cb
#define BU_GETPUT_MAGIC_2   0xbc51
#define BU_INIT_GETPUT_1(_p)
#define BU_INIT_GETPUT_2(_p, _l)
#define BU_CK_GETPUT(_p)
#define STATE_UNKNOWN   0
#define STATE_IN_KEYWORD   1
#define STATE_IN_VALUE   2
#define STATE_IN_QUOTED_VALUE   3

Functions

int bu_struct_export (struct bu_external *ext, const genptr_t base, const struct bu_structparse *imp)
int bu_struct_import (genptr_t base, const struct bu_structparse *imp, const struct bu_external *ext)
int bu_struct_put (FILE *fp, const struct bu_external *ext)
int bu_struct_get (struct bu_external *ext, FILE *fp)
void bu_struct_wrap_buf (struct bu_external *ext, genptr_t buf)
int bu_struct_parse (const struct bu_vls *in_vls, const struct bu_structparse *desc, const char *base)
void bu_struct_print (const char *title, const struct bu_structparse *parsetab, const char *base)
void bu_vls_struct_print (struct bu_vls *vls, const struct bu_structparse *sdp, const char *base)
void bu_vls_struct_print2 (struct bu_vls *vls, const char *title, const struct bu_structparse *sdp, const char *base)
void bu_vls_struct_item (struct bu_vls *vp, const struct bu_structparse *sdp, const char *base, int sep_char)
int bu_vls_struct_item_named (struct bu_vls *vp, const struct bu_structparse *sdp, const char *name, const char *base, int sep_char)
void bu_parse_mm (const struct bu_structparse *sdp, const char *name, char *base, const char *value)
int bu_key_eq_to_key_val (char *in, char **next, struct bu_vls *vls)
int bu_shader_to_tcl_list (char *in, struct bu_vls *vls)
int bu_key_val_to_key_eq (char *in)
int bu_shader_to_key_eq (char *in, struct bu_vls *vls)
int bu_fwrite_external (FILE *fp, const struct bu_external *ep)
void bu_hexdump_external (FILE *fp, const struct bu_external *ep, const char *str)
void bu_free_external (struct bu_external *ep)
void bu_copy_external (struct bu_external *op, const struct bu_external *ip)
char * bu_next_token (char *str)
HIDDEN int bu_parse_double (const char *str, long int count, double *loc)
HIDDEN int bu_struct_lookup (register const struct bu_structparse *sdp, register const char *name, const char *base, const char *const value)
HIDDEN void bu_matprint (const char *name, register const double *mat)
HIDDEN void bu_vls_matprint (struct bu_vls *vls, const char *name, register const double *mat)
HIDDEN void bu_vls_print_double (struct bu_vls *vls, const char *name, register long int count, register const double *dp)
void bu_vls_struct_print (struct bu_vls *vls, register const struct bu_structparse *sdp, const char *base)
void bu_parse_mm (register const struct bu_structparse *sdp, register const char *name, char *base, const char *value)
char * bu_list_elem (const char *in, int index)
int bu_tcl_list_length (const char *in)

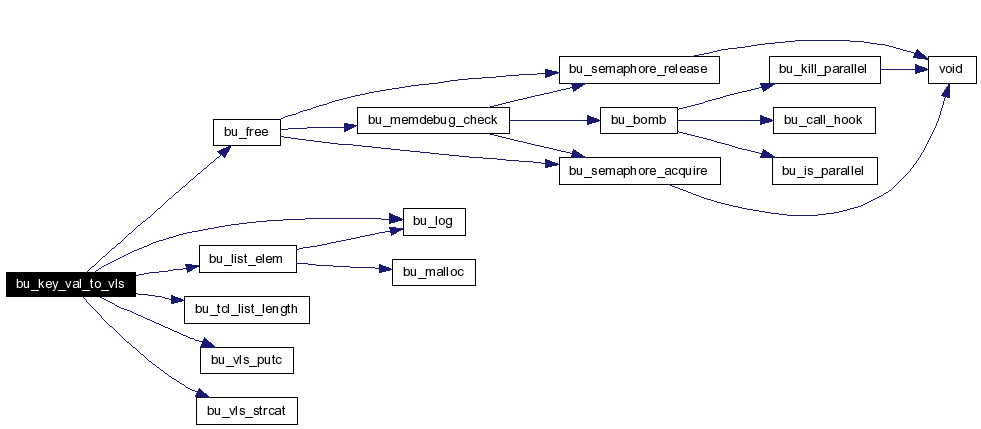

int bu_key_val_to_vls (struct bu_vls *vls, char *params)
void bu_free_external (register struct bu_external *ep)

Define Documentation

#define bu_offsetofarray (  _t,
_m   )     (int)( (((_t *)0)->_m))


b u _ o f f s e t o f b u _ o f f s e t o f a r r a y

The general problem of word-addressed hardware where (int *) and (char *) have different representations is handled in the parsing routines that use sp_offset, because of the limitations placed on compile-time initializers.

Files using bu_offsetof or bu_offsetofarray will need to include stddef.h

Definition at line 1309 of file bu.h.

#define bu_offsetof (  _t,
_m   )     (int)(&(((_t *)0)->_m))


Definition at line 1312 of file bu.h.

#define bu_byteoffset (  _i   )     ((int)(((char *)&(_i))-((char *)0)))


b u _ b y t e o f f s e t

Convert address of global data object into byte "offset" from address 0.

Strictly speaking, the C language only permits initializers of the form: address +- constant, where here the intent is to measure the byte address of the indicated variable. Matching compensation code for the CRAY is located in librt/parse.c

Definition at line 1345 of file bu.h.

#define BU_STRUCTPARSE_FUNC_NULL   ((void (*)())0)


Definition at line 1421 of file bu.h.

#define BU_EXTERNAL_MAGIC   0x768dbbd0


Definition at line 1441 of file bu.h.

Referenced by bu_identify_magic(), and db5_export_object3().

#define BU_INIT_EXTERNAL (  _p   )


Value:

{(_p)->ext_magic = BU_EXTERNAL_MAGIC; \
        (_p)->ext_buf = (genptr_t)NULL; (_p)->ext_nbytes = 0;}

Definition at line 1442 of file bu.h.

Referenced by bu_copy_external(), bu_struct_export(), bu_struct_get(), bu_struct_wrap_buf(), db5_export_attributes(), db5_get_attributes(), db5_get_raw_internal_fp(), db5_get_raw_internal_ptr(), db5_replace_attributes(), db5_update_attributes(), db5_write_free(), db_dirbuild(), db_get_external(), db_wrap_v5_external(), nmg_stash_model_to_file(), rt_binunif_export5(), rt_comb_export4(), rt_comb_export5(), rt_db_cvt_to_external5(), rt_db_get_internal(), rt_db_get_internal5(), rt_db_put_internal(), rt_fwrite_internal(), rt_generic_xform(), rt_nurb_export5(), and wdb_put_internal().

#define BU_CK_EXTERNAL (  _p   )     BU_CKMAG(_p, BU_EXTERNAL_MAGIC, "bu_external")


Definition at line 1444 of file bu.h.

Referenced by bu_copy_external(), bu_free_external(), bu_fwrite_external(), bu_hexdump_external(), db5_export_object3(), db5_import_attributes(), db5_make_free_object(), db5_make_free_object_hdr(), db5_realloc(), db_free_external(), db_fwrite_external(), db_inmem(), db_put_external(), db_put_external5(), db_wrap_v4_external(), db_wrap_v5_external(), nmg_stash_model_to_file(), rt_arb_export(), rt_arb_export5(), rt_arb_import(), rt_arb_import5(), rt_arbn_export(), rt_arbn_export5(), rt_arbn_import(), rt_arbn_import5(), rt_ars_export(), rt_ars_export5(), rt_ars_import(), rt_ars_import5(), rt_binunif_import5(), rt_bot_export(), rt_bot_export5(), rt_bot_import(), rt_bot_import5(), rt_cline_export(), rt_cline_export5(), rt_cline_import(), rt_cline_import5(), rt_comb_import4(), rt_comb_import5(), rt_db_external5_to_internal5(), rt_db_put_internal5(), rt_dsp_export(), rt_dsp_export5(), rt_dsp_import(), rt_dsp_import5(), rt_ebm_export(), rt_ebm_export5(), rt_ebm_import(), rt_ebm_import5(), rt_ehy_export(), rt_ehy_export5(), rt_ehy_import(), rt_ehy_import5(), rt_ell_export(), rt_ell_export5(), rt_ell_import(), rt_ell_import5(), rt_epa_export(), rt_epa_export5(), rt_epa_import(), rt_epa_import5(), rt_eto_export(), rt_eto_export5(), rt_eto_import(), rt_eto_import5(), rt_extrude_export(), rt_extrude_export5(), rt_extrude_import(), rt_extrude_import5(), rt_grp_export(), rt_grp_export5(), rt_grp_import(), rt_grp_import5(), rt_hf_export(), rt_hf_import(), rt_hlf_export(), rt_hlf_export5(), rt_hlf_import(), rt_hlf_import5(), rt_id_solid(), rt_metaball_export5(), rt_metaball_import5(), rt_nmg_import(), rt_nmg_import5(), rt_nmg_import_internal(), rt_nurb_import(), rt_nurb_import5(), rt_part_export(), rt_part_export5(), rt_part_import(), rt_part_import5(), rt_pg_export(), rt_pg_import(), rt_pipe_export(), rt_pipe_export5(), rt_pipe_import(), rt_pipe_import5(), rt_rhc_export(), rt_rhc_export5(), rt_rhc_import(), rt_rhc_import5(), rt_rpc_export(), rt_rpc_export5(), rt_rpc_import(), rt_rpc_import5(), rt_sketch_export(), rt_sketch_export5(), rt_sketch_import(), rt_sketch_import5(), rt_submodel_export(), rt_submodel_export5(), rt_submodel_import(), rt_submodel_import5(), rt_superell_export(), rt_superell_export5(), rt_superell_import(), rt_superell_import5(), rt_tgc_export(), rt_tgc_export5(), rt_tgc_import(), rt_tgc_import5(), rt_tor_export(), rt_tor_export5(), rt_tor_import(), rt_tor_import5(), rt_vol_export(), rt_vol_export5(), rt_vol_import(), rt_vol_import5(), rt_xxx_export(), rt_xxx_export5(), rt_xxx_import(), rt_xxx_import5(), wdb_export_external(), and wdb_put_internal().

#define CKMEM (  _len   )


Value:

{  \
        register int    offset; \
        if( (offset = (ep - cp) - (_len)) < 0 )  { \
                do  { \
                        offset += ext->ext_nbytes;      /* decr by new growth */ \
                        ext->ext_nbytes <<= 1; \
                } while( offset < 0 ); \
                offset = cp - (char *)ext->ext_buf; \
                ext->ext_buf = (genptr_t)bu_realloc( (char *) ext->ext_buf, \
                     ext->ext_nbytes, "bu_struct_export" ); \
                ep = (char *) ext->ext_buf + ext->ext_nbytes; \
                cp = (char *) ext->ext_buf + offset; \
        } }

Definition at line 74 of file parse.c.

Referenced by bu_struct_export().

#define BU_GETPUT_MAGIC_1   0x15cb


Definition at line 88 of file parse.c.

Referenced by bu_struct_get(), and bu_struct_wrap_buf().

#define BU_GETPUT_MAGIC_2   0xbc51


Definition at line 89 of file parse.c.

Referenced by bu_struct_get(), and bu_struct_wrap_buf().

#define BU_INIT_GETPUT_1 (  _p   )


Value:

{ \
        BU_CK_EXTERNAL(_p); \
        ((unsigned char *) _p->ext_buf)[1] = (BU_GETPUT_MAGIC_1 & 0xFF); \
        ((unsigned char *) _p->ext_buf)[0] = (BU_GETPUT_MAGIC_1 >> 8) & 0xFF; \
        }

Definition at line 90 of file parse.c.

Referenced by bu_struct_export().

#define BU_INIT_GETPUT_2 (  _p,
_l   )


Value:

{\
        BU_CK_EXTERNAL(_p); \
        ((unsigned char *) _p->ext_buf)[_l-1] = (BU_GETPUT_MAGIC_2 & 0xFF); \
        ((unsigned char *) _p->ext_buf)[_l-2] = (BU_GETPUT_MAGIC_2 >> 8) & 0xFF; \
        }

Definition at line 95 of file parse.c.

Referenced by bu_struct_export().

#define BU_CK_GETPUT (  _p   )


Definition at line 101 of file parse.c.

Referenced by bu_struct_import(), and bu_struct_put().

#define STATE_UNKNOWN   0


Definition at line 1565 of file parse.c.

#define STATE_IN_KEYWORD   1


Definition at line 1566 of file parse.c.

Referenced by bu_key_eq_to_key_val().

#define STATE_IN_VALUE   2


Definition at line 1567 of file parse.c.

Referenced by bu_key_eq_to_key_val().

#define STATE_IN_QUOTED_VALUE   3


Definition at line 1568 of file parse.c.

Referenced by bu_key_eq_to_key_val().

Function Documentation

int bu_struct_export (  struct bu_external *  ext,
const genptr_t  base,
const struct bu_structparse *  imp
)


B U _ S T R U C T _ E X P O R T

Definition at line 147 of file parse.c.

References bcopy, bu_free(), BU_INIT_EXTERNAL, BU_INIT_GETPUT_1, BU_INIT_GETPUT_2, bu_malloc(), CKMEM, bu_external::ext_buf, bu_external::ext_nbytes, htond(), int, bu_structparse::sp_count, bu_structparse::sp_fmt, and bu_structparse::sp_offset.

Here is the call graph for this function:

int bu_struct_import (  genptr_t  base,
const struct bu_structparse *  imp,
const struct bu_external *  ext
)


B U _ S T R U C T _ I M P O R T

Definition at line 299 of file parse.c.

References bcopy, BU_CK_GETPUT, bu_external::ext_buf, int, ntohd(), NULL, bu_structparse::sp_count, bu_structparse::sp_fmt, bu_structparse::sp_hook, bu_structparse::sp_name, and bu_structparse::sp_offset.

Here is the call graph for this function:

int bu_struct_put (  FILE *  fp,
const struct bu_external *  ext
)


B U _ S T R U C T _ P U T

Put a structure in external form to a stdio file. All formatting must have been accomplished previously.

Definition at line 435 of file parse.c.

References BU_CK_GETPUT, bu_external::ext_buf, and bu_external::ext_nbytes.

int bu_struct_get (  struct bu_external *  ext,
FILE *  fp
)


B U _ S T R U C T _ G E T

Obtain the next structure in external form from a stdio file.

Definition at line 448 of file parse.c.

References bu_bomb(), BU_GETPUT_MAGIC_1, BU_GETPUT_MAGIC_2, bu_identify_magic(), BU_INIT_EXTERNAL, bu_log(), bu_malloc(), bu_realloc(), BU_SEM_SYSCALL, bu_semaphore_acquire(), bu_semaphore_release(), bu_external::ext_buf, and bu_external::ext_nbytes.

Here is the call graph for this function:

void bu_struct_wrap_buf (  struct bu_external *  ext,
genptr_t  buf
)


B U _ S T R U C T _ B U F

Given a buffer with an external representation of a structure (e.g. the ext_buf portion of the output from bu_struct_export), check it for damage in shipment, and if it's OK, wrap it up in an bu_external structure, suitable for passing to bu_struct_import().

Definition at line 509 of file parse.c.

References bu_bomb(), BU_GETPUT_MAGIC_1, BU_GETPUT_MAGIC_2, bu_identify_magic(), BU_INIT_EXTERNAL, bu_log(), bu_external::ext_buf, and bu_external::ext_nbytes.

Here is the call graph for this function:

int bu_struct_parse (  const struct bu_vls *  in_vls,
const struct bu_structparse *  desc,
const char *  base
)


B U _ S T R U C T P A R S E

Parse the structure element description in the vls string "vls" according to the structure description in "parsetab"

Returns:
<0 failure

0 OK

Definition at line 795 of file parse.c.

References BU_CK_VLS, bu_log(), bu_struct_lookup(), bu_struct_print(), bu_vls_addr(), bu_vls_free(), bu_vls_init(), bu_vls_vlscat(), name, NULL, and value.

Referenced by rt_dsp_import(), rt_ebm_import(), rt_ebm_import5(), rt_hf_import(), rt_submodel_import(), rt_submodel_import5(), rt_vol_import(), and rt_vol_import5().

Here is the call graph for this function:

void bu_struct_print (  const char *  title,
const struct bu_structparse *  parsetab,
const char *  base
)


B U _ S T R U C T P R I N T

Definition at line 1056 of file parse.c.

References bu_log(), NULL, bu_structparse::sp_count, bu_structparse::sp_fmt, bu_structparse::sp_name, and bu_structparse::sp_offset.

Referenced by bu_struct_parse(), rt_ebm_import(), rt_ebm_import5(), rt_vol_import(), and rt_vol_import5().

Here is the call graph for this function:

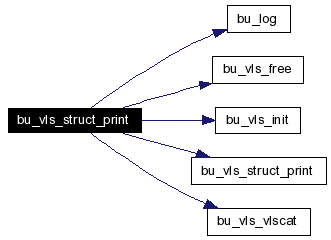

void bu_vls_struct_print (  struct bu_vls *  vls,
const struct bu_structparse *  sdp,
const char *  base
)


Referenced by bu_vls_struct_print(), rt_dsp_export(), rt_dsp_import(), rt_ebm_export(), rt_ebm_export5(), rt_hf_describe(), rt_hf_export(), rt_submodel_export(), rt_submodel_export5(), rt_vol_export(), and rt_vol_export5().

void bu_vls_struct_print2 (  struct bu_vls *  vls_out,
const char *  title,
const struct bu_structparse *  parsetab,
const char *  base
)


B U _ V L S _ S T R U C T P R I N T 2

This differs from bu_struct_print in that it prints to a vls.

Definition at line 1405 of file parse.c.

References bu_vls_printf(), bu_structparse::sp_count, bu_structparse::sp_fmt, bu_structparse::sp_name, and bu_structparse::sp_offset.

Here is the call graph for this function:

void bu_vls_struct_item (  struct bu_vls *  vp,
const struct bu_structparse *  sdp,
const char *  base,
int  sep_char
)


Convert a structure element (indicated by sdp) to its ASCII representation in a VLS

Definition at line 951 of file parse.c.

References bu_log(), bu_vls_printf(), bu_vls_vlscat(), NULL, bu_structparse::sp_count, bu_structparse::sp_fmt, bu_structparse::sp_name, and bu_structparse::sp_offset.

Referenced by bu_vls_struct_item_named(), rt_dsp_tclget(), and rt_parsetab_tclget().

Here is the call graph for this function:

int bu_vls_struct_item_named (  struct bu_vls *  vp,
const struct bu_structparse *  parsetab,
const char *  name,
const char *  base,
int  sep_char
)


B U _ V L S _ S T R U C T _ I T E M _ N A M E D

Convert a structure element called "name" to an ASCII representation in a VLS.

Definition at line 1038 of file parse.c.

References bu_vls_struct_item(), NULL, and bu_structparse::sp_name.

Referenced by rt_dsp_tclget(), and rt_parsetab_tclget().

Here is the call graph for this function:

void bu_parse_mm (  const struct bu_structparse *  sdp,
const char *  name,
char *  base,
const char *  value
)


int bu_key_eq_to_key_val (  char *  in,
char **  next,
struct bu_vls *  vls
)


Definition at line 1574 of file parse.c.

References BU_CK_VLS, bu_vls_putc(), bu_vls_strcat(), bu_vls_strncat(), start, state, STATE_IN_KEYWORD, STATE_IN_QUOTED_VALUE, and STATE_IN_VALUE.

Referenced by bu_shader_to_tcl_list(), and bu_tcl_key_eq_to_key_val().

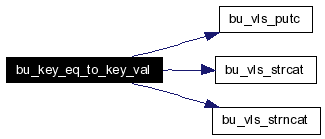

Here is the call graph for this function:

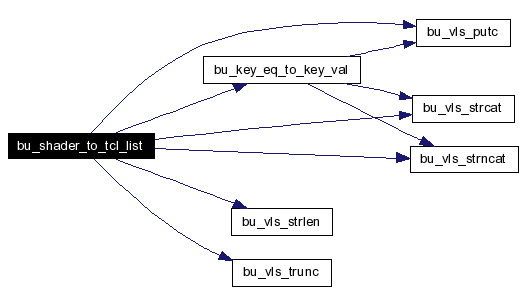

int bu_shader_to_tcl_list (  char *  in,
struct bu_vls *  vls
)


B U _ S H A D E R _ T O _ T C L _ L I S T

Take an old v4 shader specification of the form

shadername arg1=value1 arg2=value2 color=1/2/3

and convert it into the v5 Tcl-list form

shadername {arg1 value1 arg2 value2 color 1/2/3}

Note -- the input string is smashed with nulls.

Note -- the v5 version is used everywhere internally, and in v5 databases.

Returns:
1 error

0 OK

Definition at line 1708 of file parse.c.

References BU_CK_VLS, bu_key_eq_to_key_val(), bu_vls_putc(), bu_vls_strcat(), bu_vls_strlen(), bu_vls_strncat(), and bu_vls_trunc().

Referenced by bu_tcl_shader_to_key_val().

Here is the call graph for this function:

int bu_key_val_to_key_eq (  char *  in  )

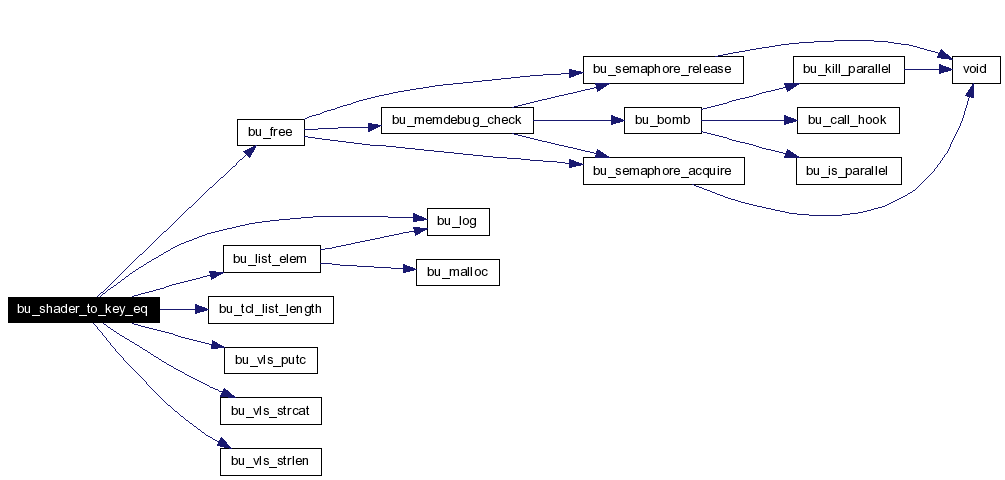

int bu_shader_to_key_eq (  char *  in,
struct bu_vls *  vls
)


B U _ S H A D E R _ T O _ K E Y _ E Q

Definition at line 2037 of file parse.c.

References BU_CK_VLS, bu_free(), bu_list_elem(), bu_log(), bu_tcl_list_length(), bu_vls_putc(), bu_vls_strcat(), bu_vls_strlen(), and params.

Referenced by bu_tcl_shader_to_key_eq(), db_apply_state_from_comb(), and rt_comb_export4().

Here is the call graph for this function:

int bu_fwrite_external (  FILE *  fp,
const struct bu_external *  ep
)


B U _ F W R I T E _ E X T E R N A L

Take a block of memory, and write it into a file.

Caller is responsible for freeing memory of external representation, using bu_free_external().

Returns:
<0 error

0 OK

Definition at line 2134 of file parse.c.

References BU_CK_EXTERNAL, bu_log(), bu_external::ext_buf, bu_external::ext_nbytes, and perror().

Referenced by db5_fwrite_ident(), and db_fwrite_external().

Here is the call graph for this function:

void bu_hexdump_external (  FILE *  fp,
const struct bu_external *  ep,
const char *  str
)


B U _ H E X D U M P _ E X T E R N A L

Definition at line 2152 of file parse.c.

References BU_CK_EXTERNAL, bu_external::ext_buf, and bu_external::ext_nbytes.

void bu_free_external (  struct bu_external *  ep  )


Referenced by db5_fwrite_ident(), db5_get_attributes(), db5_replace_attributes(), db5_update_attributes(), db5_update_ident(), db5_write_free(), db_create_inmem(), db_dirbuild(), db_free_external(), db_wrap_v5_external(), nmg_stash_model_to_file(), rt_binunif_tclget(), rt_db_cvt_to_external5(), rt_db_get_internal(), rt_db_get_internal5(), rt_db_put_internal(), rt_db_put_internal5(), rt_fwrite_internal(), rt_generic_xform(), rt_retrieve_binunif(), wdb_copy_cmd(), wdb_export_external(), and wdb_put_internal().

void bu_copy_external (  struct bu_external *  op,
const struct bu_external *  ip
)


B U _ C O P Y _ E X T E R N A L

Definition at line 2208 of file parse.c.

References bcopy, BU_CK_EXTERNAL, BU_INIT_EXTERNAL, bu_malloc(), bu_external::ext_buf, and bu_external::ext_nbytes.

Here is the call graph for this function:

char * bu_next_token (  char *  str  )


B U _ N E X T _ T O K E N

Advance pointer through string over current token, across white space, to beginning of next token.

Definition at line 2227 of file parse.c.

Referenced by rt_pipe_tcladjust().

HIDDEN int bu_parse_double (  const char *  str,
long int  count,
double *  loc
)


B U _ P A R S E _ D O U B L E

Parse an array of one or more doubles. Return value: 0 when successful <0 upon failure

Definition at line 555 of file parse.c.

HIDDEN int bu_struct_lookup (  register const struct bu_structparse *  sdp,
register const char *  name,
const char *  base,
const char *const   value
)


B U _ S T R U C T _ L O O K U P

Returns:
-2 parse error

-1 not found

0 entry found and processed

Definition at line 621 of file parse.c.

Referenced by bu_struct_lookup(), bu_struct_parse(), and bu_structparse().

HIDDEN void bu_matprint (  const char *  name,
register const double *  mat
)


B U _ M A T P R I N T

XXX Should this be here, or could it be with the matrix support? pretty-print a matrix

Definition at line 892 of file parse.c.

References bu_log(), and bu_log_indent_delta().

Here is the call graph for this function:

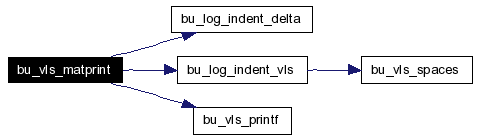

HIDDEN void bu_vls_matprint (  struct bu_vls *  vls,
const char *  name,
register const double *  mat
)


Definition at line 918 of file parse.c.

References bu_log_indent_delta(), bu_log_indent_vls(), and bu_vls_printf().

Here is the call graph for this function:

HIDDEN void bu_vls_print_double (  struct bu_vls *  vls,
const char *  name,
register long int  count,
register const double *  dp
)


B U _ V L S _ P R I N T _ D O U B L E

Definition at line 1200 of file parse.c.

References bu_vls_extend(), bu_vls::vls_len, bu_vls::vls_offset, and bu_vls::vls_str.

Here is the call graph for this function:

void bu_vls_struct_print (  struct bu_vls *  vls,
register const struct bu_structparse *  sdp,
const char *  base
)


B U _ V L S _ S T R U C T P R I N T

This differs from bu_struct_print in that this output is less readable by humans, but easier to parse with the computer.

Definition at line 1227 of file parse.c.

References BU_CK_VLS, bu_log(), bu_vls_free(), bu_vls_init(), bu_vls_struct_print(), bu_vls_vlscat(), and NULL.

Here is the call graph for this function:

void bu_parse_mm (  register const struct bu_structparse *  sdp,
register const char *  name,
char *  base,
const char *  value
)


This allows us to specify the "size" parameter as values like ".5m" or "27in" rather than using mm all the time.

Definition at line 1553 of file parse.c.

References bu_mm_value().

Here is the call graph for this function:

char* bu_list_elem (  const char *  in,
int  index
)


B U _ L I S T _ E L E M

Given a Tcl list, return a copy of the 'index'th entry, which may itself be a list.

Note -- the caller is responsible for freeing the returned string.

Definition at line 1826 of file parse.c.

References bu_log(), bu_malloc(), ptr, and start.

Referenced by bu_key_val_to_vls(), and bu_shader_to_key_eq().

Here is the call graph for this function:

int bu_tcl_list_length (  const char *  in  )


B U _ T C L _ L I S T _ L E N G T H

Return number of items in a string, interpreted as a Tcl list.

Definition at line 1930 of file parse.c.

References ptr.

Referenced by bu_key_val_to_vls(), and bu_shader_to_key_eq().

int bu_key_val_to_vls (  struct bu_vls *  vls,
char *  params
)


Definition at line 1986 of file parse.c.

References bu_free(), bu_list_elem(), bu_log(), bu_tcl_list_length(), bu_vls_putc(), bu_vls_strcat(), and value.

Here is the call graph for this function:

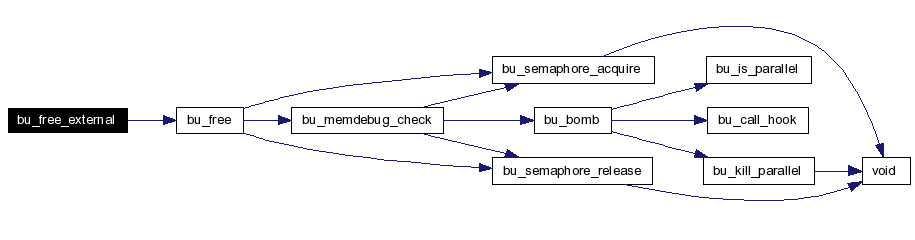

void bu_free_external (  register struct bu_external *  ep  )


B U _ F R E E _ E X T E R N A L

Definition at line 2195 of file parse.c.

References BU_CK_EXTERNAL, bu_free(), and GENPTR_NULL.

Here is the call graph for this function:

Generated on Mon Sep 18 01:25:21 2006 for BRL-CAD by  doxygen 1.4.6
