g_ars.c File Reference

#include "common.h"
#include <stdlib.h>
#include <stdio.h>
#include <math.h>
#include <ctype.h>
#include "machine.h"
#include "tcl.h"
#include "vmath.h"
#include "db.h"
#include "nmg.h"
#include "raytrace.h"
#include "rtgeom.h"
#include "./debug.h"
#include "./plane.h"
#include "./bot.h"

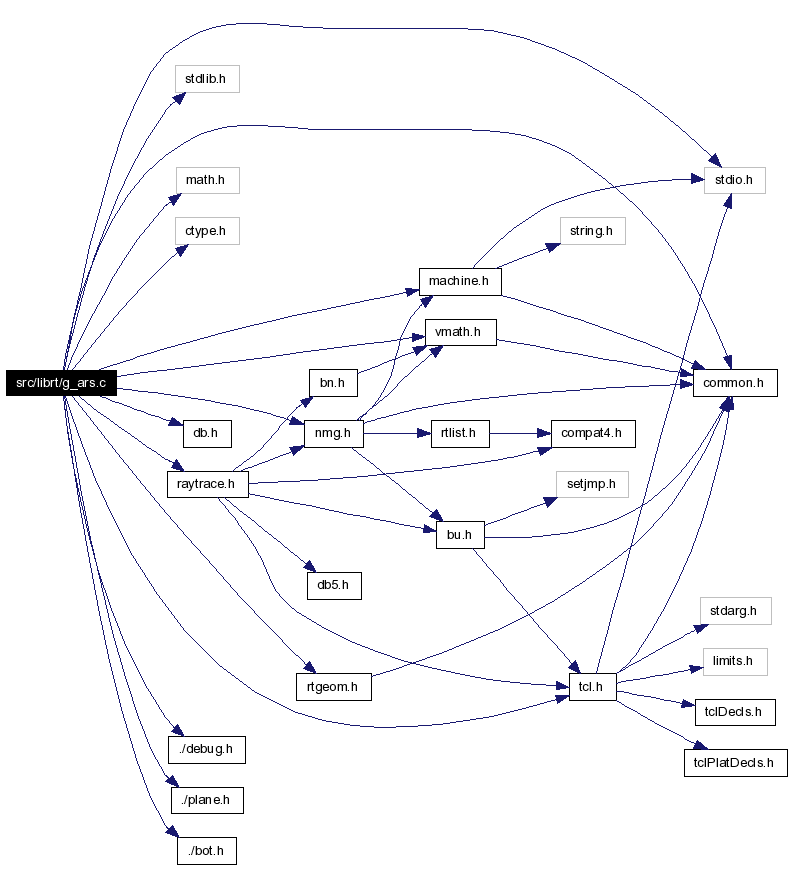

Include dependency graph for g_ars.c:

Go to the source code of this file.

Defines
#define	TRI_NULL   ((struct tri_specific *)0)
#define	RT_ARS_MAXHITS   128
#define	IJ(ii, jj)   (((i+(ii))*(arip->pts_per_curve+1))+(j+(jj)))
#define	ARS_PT(ii, jj)   (&arip->curves[i+(ii)][(j+(jj))*ELEMENTS_PER_VECT])
#define	FIND_IJ(a, b)
#define	ASSOC_GEOM(corn, a, b)
Functions
int	rt_bot_prep (struct soltab *stp, struct rt_db_internal *ip, struct rt_i *rtip)
void	rt_bot_ifree (struct rt_db_internal *ip)
int	rt_ars_tess (struct nmgregion **r, struct model *m, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol)
void	rt_ars_free (register struct soltab *stp)
int	rt_ars_class (const struct soltab *stp, const vect_t min, const vect_t max, const struct bn_tol *tol)
fastf_t *	rt_ars_rd_curve (union record *rp, int npts)
int	rt_ars_import (struct rt_db_internal *ip, const struct bu_external *ep, const fastf_t *mat, const struct db_i *dbip)
int	rt_ars_export (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip)
int	rt_ars_import5 (struct rt_db_internal *ip, const struct bu_external *ep, const fastf_t *mat, const struct db_i *dbip)
int	rt_ars_export5 (struct bu_external *ep, const struct rt_db_internal *ip, double local2mm, const struct db_i *dbip)
int	rt_ars_describe (struct bu_vls *str, const struct rt_db_internal *ip, int verbose, double mm2local)
void	rt_ars_ifree (struct rt_db_internal *ip)
int	rt_ars_prep (struct soltab *stp, struct rt_db_internal *ip, struct rt_i *rtip)
void	rt_ars_print (register const struct soltab *stp)
int	rt_ars_shot (struct soltab *stp, register struct xray *rp, struct application *ap, struct seg *seghead)
void	rt_hitsort (register struct hit *h, register int nh)
void	rt_ars_norm (register struct hit *hitp, struct soltab *stp, register struct xray *rp)
void	rt_ars_curve (register struct curvature *cvp, register struct hit *hitp, struct soltab *stp)
void	rt_ars_uv (struct application *ap, struct soltab *stp, register struct hit *hitp, register struct uvcoord *uvp)
int	rt_ars_plot (struct bu_list *vhead, struct rt_db_internal *ip, const struct rt_tess_tol *ttol, const struct bn_tol *tol)
int	rt_ars_tclget (Tcl_Interp *interp, const struct rt_db_internal *intern, const char *attr)
int	rt_ars_tcladjust (Tcl_Interp *interp, struct rt_db_internal *intern, int argc, char **argv)
Variables
int	rt_bot_minpieces

---

Detailed Description

Intersect a ray with an ARS (Arbitrary faceted solid).

Author - Michael John Muuss

Source - SECAD/VLD Computing Consortium, Bldg 394 The U. S. Army Ballistic Research Laboratory Aberdeen Proving Ground, Maryland 21005

Definition in file g_ars.c.

---

Define Documentation

#define RT_ARS_MAXHITS   128

Referenced by rt_ars_shot().

---
