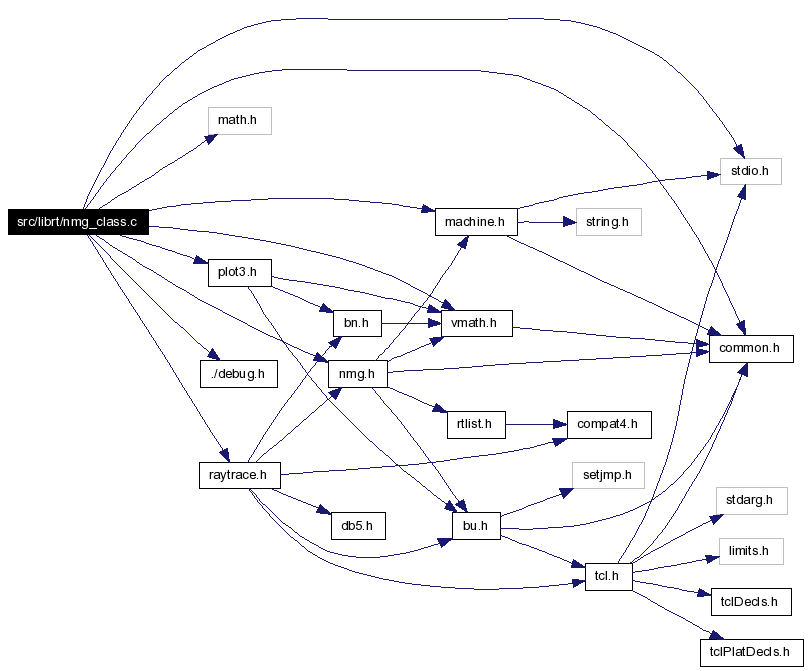

#include "common.h"#include <stdio.h>#include <math.h>#include "machine.h"#include "vmath.h"#include "nmg.h"#include "raytrace.h"#include "./debug.h"#include "plot3.h"Include dependency graph for nmg_class.c:
Go to the source code of this file.
Data Structures | |
| struct | neighbor |
Defines | |
| #define | INSIDE 32 |
| #define | ON_SURF 64 |
| #define | OUTSIDE 128 |
Functions | |
| const char * | nmg_class_status (int status) |
| void | nmg_pr_class_status (char *prefix, int status) |
| int | nmg_class_lu_fu (const struct loopuse *lu, const struct bn_tol *tol) |
| int | nmg_class_pt_s (const fastf_t *pt, const struct shell *s, const int in_or_out_only, const struct bn_tol *tol) |
| int | nmg_2lu_identical (const struct edgeuse *eu1, const struct edgeuse *eu2) |
| void | nmg_reclassify_lu_eu (struct loopuse *lu, long int **classlist, int newclass) |
| void | nmg_class_shells (struct shell *sA, struct shell *sB, long int **classlist, const struct bn_tol *tol) |
| int | nmg_classify_pt_loop (const point_t pt, const struct loopuse *lu, const struct bn_tol *tol) |
| int | nmg_get_interior_pt (fastf_t *pt, const struct loopuse *lu, const struct bn_tol *tol) |
| int | nmg_classify_lu_lu (const struct loopuse *lu1, const struct loopuse *lu2, const struct bn_tol *tol) |
| int | nmg_classify_s_vs_s (struct shell *s2, struct shell *s, const struct bn_tol *tol) |
Variables | |
| int | nmg_class_nothing_broken |
The first set of routines (nmg_class_pt_xxx) are used to classify an arbitrary point specified by it's Cartesian coordinates, against various kinds of NMG elements. nmg_class_pt_f() and nmg_class_pt_s() are available to applications programmers for direct use, and have no side effects.
The second set of routines (class_xxx_vs_s) are used only to support the routine nmg_class_shells() mid-way through the NMG Boolean algorithm. These routines operate with special knowledge about the state of the data structures after the intersector has been called, and depends on all geometric equivalences to have been converted into shared topology.
Authors - Lee A. Butler Michael John Muuss
Source - The U. S. Army Research Laboratory Aberdeen Proving Ground, Maryland 21005-5068 USA
Definition in file nmg_class.c.
|
|
Definition at line 71 of file nmg_class.c. Referenced by nmg_class_status(). |
|
|
Definition at line 72 of file nmg_class.c. |
|
|
Definition at line 73 of file nmg_class.c. Referenced by nmg_class_status(). |
|
|
N M G _ C L A S S _ S T A T U S Convert classification status to string. Definition at line 112 of file nmg_class.c. References INSIDE, ON_SURF, and OUTSIDE. Referenced by nmg_pr_class_status(). |
|
||||||||||||
|
N M G _ P R _ C L A S S _ S T A T U S Definition at line 129 of file nmg_class.c. References bu_log(), and nmg_class_status(). Here is the call graph for this function:  |
|
||||||||||||
|

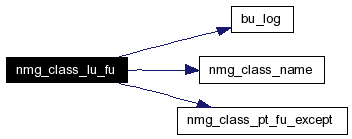

N M G _ C L A S S _ L U _ F U This is intended as an internal routine to support nmg_lu_reorient(). Given a loopuse in a face, pick one of it's vertexuses, and classify that point with respect to all the rest of the loopuses in the face. The containment status of that point is the status of the loopuse. If the first vertex chosen is "ON" another loop boundary, choose the next vertex and try again. Only return an "ON" status if _all_ the vertices are ON. The point is "A", and the face is "B". Returns - NMG_CLASS_AinB lu is INSIDE the area of the face. NMG_CLASS_AonBshared ALL of lu is ON other loop boundaries. NMG_CLASS_AoutB lu is OUTSIDE the area of the face. Called by - nmg_mod.c, nmg_lu_reorient() Definition at line 517 of file nmg_class.c. References BN_CK_TOL, BU_LIST_FIRST, BU_LIST_FIRST_MAGIC, BU_LIST_PNEXT_CIRC, bu_log(), vertex_g::coord, DEBUG_CLASSIFY, bn_tol::dist, DIST_PT_PLANE, loopuse::down_hd, faceuse::f_p, loopuse::fu_p, face::g, edgeuse::l, NMG_CK_EDGEUSE, NMG_CK_FACE, NMG_CK_FACE_G_PLANE, NMG_CK_FACEUSE, NMG_CK_LOOPUSE, NMG_CK_VERTEX, NMG_CK_VERTEX_G, NMG_CK_VERTEXUSE, NMG_CLASS_AonBshared, nmg_class_name(), nmg_class_pt_fu_except(), NMG_GET_FU_PLANE, NMG_VERTEXUSE_MAGIC, NULL, face::plane_p, loopuse::up, V3ARGS, vertexuse::v_p, vertex::vg_p, VPRINT, and edgeuse::vu_p. Here is the call graph for this function:  |
|
||||||||||||||||||||
|

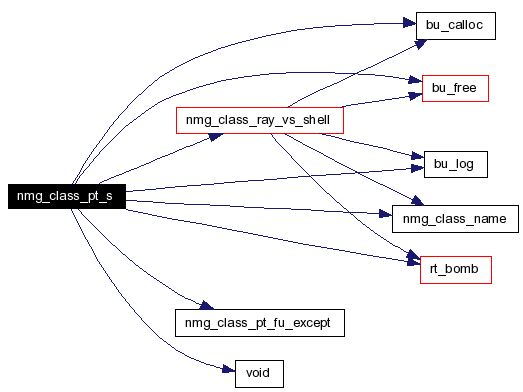

N M G _ C L A S S _ P T _ S This is intended as a general user interface routine. Given the Cartesian coordinates for a point in space, return the classification for that point with respect to a shell. The algorithm used is to fire a ray from the point, and count the number of times it crosses a face. The flag "in_or_out_only" specifies that the point is known to not be on the shell, therfore only returns of NMG_CLASS_AinB or NMG_CLASS_AoutB are acceptable. The point is "A", and the face is "B". Returns - NMG_CLASS_AinB pt is INSIDE the volume of the shell. NMG_CLASS_AonBshared pt is ON the shell boundary. NMG_CLASS_AoutB pt is OUTSIDE the volume of the shell. Definition at line 632 of file nmg_class.c. References BN_CK_TOL, bu_calloc(), bu_free(), BU_LIST_FOR, bu_log(), DEBUG_CLASSIFY, bn_tol::dist, DIST_PT_PLANE, faceuse::f_p, shell::fu_hd, nmgregion::m_p, MAGNITUDE, nmgregion_a::max_pt, shell_a::max_pt, model::maxindex, nmgregion_a::min_pt, shell_a::min_pt, NMG_CK_MODEL, NMG_CK_REGION_A, NMG_CK_SHELL, NMG_CLASS_AinB, NMG_CLASS_AonBshared, NMG_CLASS_AoutB, nmg_class_name(), nmg_class_pt_fu_except(), nmg_class_ray_vs_shell(), NMG_CLASS_Unknown, NMG_GET_FU_PLANE, NMG_INDEX_SET, NMG_INDEX_TEST, NULL, faceuse::orientation, OT_SAME, xray::r_dir, shell::r_p, xray::r_pt, nmgregion::ra_p, rt_bomb(), shell::sa_p, V3ARGS, V3PT_IN_RPP_TOL, VMOVE, void(), VSUB2, and VUNITIZE. Here is the call graph for this function:  |
|
||||||||||||||||
|

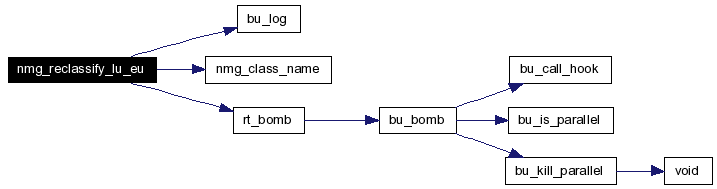

N M G _ R E C L A S S I F Y _ L U _ E U Make all the edges and vertices of a loop carry the same classification as the loop. There is no intrinsic way to tell if an edge is "shared" or "antishared", except by reference to it's loopuse, but the heritage of the edgeuse makes a difference to the boolean evaluator. "newclass" should only be AonBshared or AonBanti. Definition at line 1403 of file nmg_class.c. References BU_LIST_FIRST, BU_LIST_FIRST_MAGIC, BU_LIST_FOR, bu_log(), DEBUG_BASIC, loopuse::down_hd, edgeuse::e_p, NMG_CK_EDGE, NMG_CK_EDGEUSE, NMG_CK_LOOPUSE, NMG_CK_VERTEX, NMG_CK_VERTEXUSE, nmg_class_name(), NMG_INDEX_CLEAR, NMG_INDEX_SET, NMG_INDEX_TEST, NMG_VERTEXUSE_MAGIC, rt_bomb(), vertexuse::v_p, and edgeuse::vu_p. Here is the call graph for this function:  |
|
||||||||||||||||||||
|
N M G _ C L A S S _ S H E L L S Classify one shell WRT the other shell Implicit return - Each element's classification will be represented by a SET entry in the appropriate classlist[] array. Called by - nmg_bool.c Definition at line 2157 of file nmg_class.c. References BN_CK_TOL, BU_LIST_FIRST, BU_LIST_NON_EMPTY, BU_LIST_NOT_HEAD, BU_LIST_PNEXT, BU_LIST_PNEXT_PNEXT, bu_log(), shell::eu_hd, edgeuse::eumate_p, shell::fu_hd, faceuse::fumate_p, shell::lu_hd, loopuse::lumate_p, NMG_CK_SHELL, void(), and shell::vu_p. Here is the call graph for this function:  |
|
||||||||||||||||
|
N M G _ G E T _ I N T E R I O R _ P T Find any point that is interior to LU Returns: 0 - All is well 1 - Loop is not part of a faceuse 2 - Loop is a single vertexuse 3 - Loop is a crack 4 - Just plain can't find an interior point Definition at line 2284 of file nmg_class.c. References BN_CK_TOL, BU_LIST_FIRST_MAGIC, BU_LIST_FOR, vertex_g::coord, bn_tol::dist, loopuse::down_hd, loopuse::magic_p, NMG_CK_EDGEUSE, NMG_CK_LOOPUSE, NMG_CK_VERTEX_G, nmg_class_pt_lu_except(), NMG_EDGEUSE_MAGIC, NMG_FACEUSE_MAGIC, nmg_loop_is_a_crack(), NULL, loopuse::up, vertexuse::v_p, VADD2, vertex::vg_p, VMOVE, VSCALE, VSETALL, and edgeuse::vu_p. Here is the call graph for this function:  |
|
|
Definition at line 1550 of file nmg_plot.c. |
