shell Struct Reference
[N-Manifold Geometry]

#include <nmg.h>

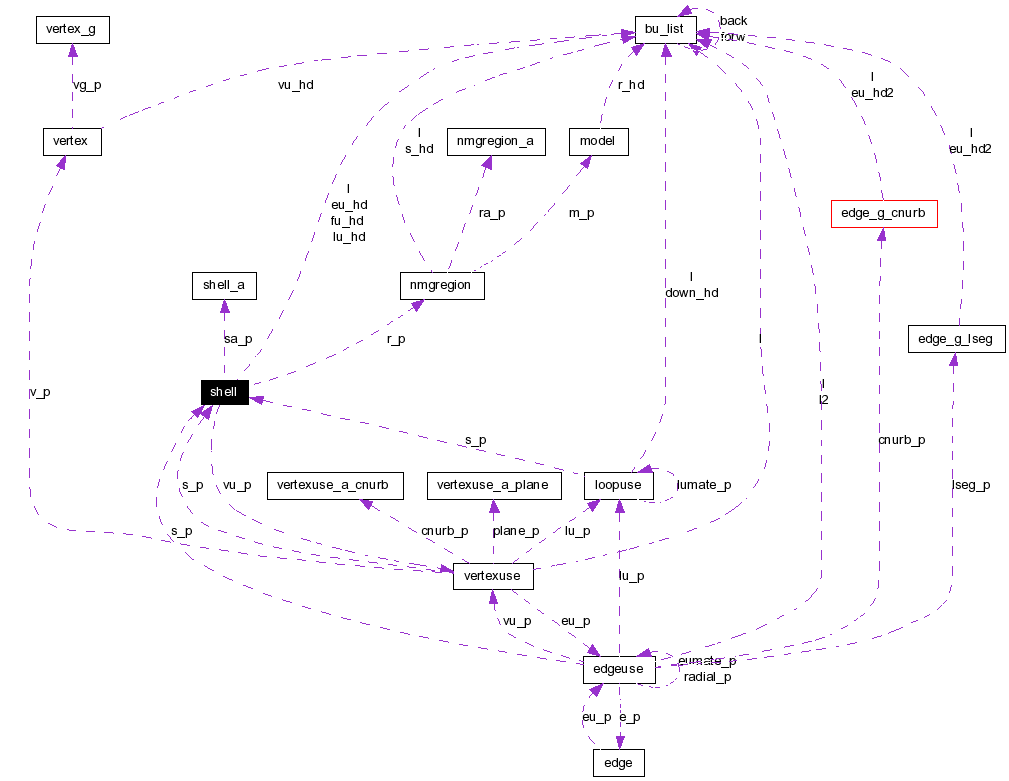

Collaboration diagram for shell:

[legend]

Data Fields
bu_list	l
	shells, in region's s_hd list
nmgregion *	r_p
	owning region
shell_a *	sa_p
	attribs
bu_list	fu_hd
	list of face uses in shell
bu_list	lu_hd
	wire loopuses (edge groups)
bu_list	eu_hd
	wire list (shell has wires)
vertexuse *	vu_p
	internal ptr to single vertexuse
long	index
	struct # in this model

---

Detailed Description

S H E L L

When a shell encloses volume, it's done entirely by the list of faceuses.

The wire loopuses (each of which heads a list of edges) define a set of connected line segments which form a closed path, but do not enclose either volume or surface area.

The wire edgeuses are disconnected line segments. There is a special interpetation to the eu_hd list of wire edgeuses. Unlike edgeuses seen in loops, the eu_hd list contains eu1, eu1mate, eu2, eu2mate, ..., where each edgeuse and it's mate comprise a *non-connected* "wire" edge which starts at eu1->vu_p->v_p and ends at eu1mate->vu_p->v_p. There is no relationship between the pairs of edgeuses at all, other than that they all live on the same linked list.

Definition at line 312 of file nmg.h.

---

Field Documentation

struct bu_list l

shells, in region's s_hd list Definition at line 313 of file nmg.h. Referenced by nmg_add_loop_to_face(), nmg_bot(), nmg_check_radial_angles(), nmg_class_ray_vs_shell(), nmg_decompose_shell(), nmg_demote_eu(), nmg_enlist_vu(), nmg_extrude_cleanup(), nmg_extrude_shell(), nmg_find_model(), nmg_fix_overlapping_loops(), nmg_isect_shell_self(), nmg_kill_zero_length_edgeuses(), nmg_ks(), nmg_manifolds(), nmg_me(), nmg_merge_regions(), nmg_mf(), nmg_ml(), nmg_msv(), nmg_mv_shell_to_region(), nmg_mv_vu_between_shells(), nmg_pr_s(), nmg_pr_s_briefly(), nmg_radial_build_list(), nmg_s_radial_check(), nmg_s_radial_harmonize(), nmg_shell_a(), nmg_shell_coplanar_face_merge(), nmg_shell_is_void(), nmg_to_arb(), nmg_to_tgc(), nmg_triangulate_fu(), rt_nmg_ialloc(), and wdb_shells_cmd().

struct nmgregion* r_p

owning region Definition at line 314 of file nmg.h. Referenced by nmg_class_pt_s(), nmg_cut_loop(), nmg_decompose_shell(), nmg_do_bool(), nmg_extrude_cleanup(), nmg_extrude_shell(), nmg_fix_decomposed_shell_normals(), nmg_fix_normals(), nmg_hollow_shell(), nmg_invert_shell(), nmg_isect_line2_edge2p(), nmg_isect_ray_model(), nmg_isect_shell_self(), nmg_ks(), nmg_merge_regions(), nmg_msv(), nmg_mv_shell_to_region(), nmg_pl_isect(), nmg_plot_ray_face(), nmg_polytonmg(), nmg_pr_s(), nmg_shell_manifolds(), nmg_vlblock_s(), rt_nmg_idisk(), and wdb_shells_cmd().

struct shell_a* sa_p

attribs Definition at line 315 of file nmg.h. Referenced by nmg_class_pt_s(), nmg_classify_s_vs_s(), nmg_find_max_index(), nmg_ks(), nmg_m_reindex(), nmg_m_set_high_bit(), nmg_m_struct_count(), nmg_msv(), nmg_pl_isect(), nmg_pr_s(), nmg_region_a(), and nmg_shell_a().

struct bu_list fu_hd

list of face uses in shell Definition at line 317 of file nmg.h. Referenced by nmg_bad_face_normals(), nmg_break_crossed_loops(), nmg_break_long_edges(), nmg_check_closed_shell(), nmg_ck_closed_surf(), nmg_class_pt_s(), nmg_class_ray_vs_shell(), nmg_class_shells(), nmg_close_shell(), nmg_connect_same_fu_orients(), nmg_count_shell_kids(), nmg_decompose_shell(), nmg_extrude_cleanup(), nmg_face_state_transition(), nmg_find_max_index(), nmg_find_pt_in_shell(), nmg_find_top_face_in_dir(), nmg_fix_decomposed_shell_normals(), nmg_fix_normals(), nmg_fix_overlapping_loops(), nmg_hollow_shell(), nmg_intersect_loops_self(), nmg_invert_shell(), nmg_isect_shell_self(), nmg_kfu(), nmg_kill_anti_loops(), nmg_kill_cracks(), nmg_kill_non_common_cracks(), nmg_kill_zero_length_edgeuses(), nmg_ks(), nmg_m_reindex(), nmg_m_set_high_bit(), nmg_m_struct_count(), nmg_make_faces_within_tol(), nmg_mesh_face_shell(), nmg_mf(), nmg_msv(), nmg_mv_fu_between_shells(), nmg_pl_isect(), nmg_pr_s(), nmg_pr_s_briefly(), nmg_rebound(), nmg_rm_redundancies(), nmg_s_join_touchingloops(), nmg_s_split_touchingloops(), nmg_s_to_vlist(), nmg_sanitize_s_lv(), nmg_shell_a(), nmg_shell_area(), nmg_shell_coplanar_face_merge(), nmg_shell_manifolds(), nmg_show_each_loop(), nmg_simplify_shell(), nmg_simplify_shell_edges(), nmg_to_arb(), nmg_to_poly(), nmg_to_tgc(), nmg_triangulate_model(), nmg_triangulate_shell(), nmg_vlblock_s(), rt_nmg_ialloc(), rt_nmg_idisk(), and stash_shell().

struct bu_list lu_hd

wire loopuses (edge groups) Definition at line 318 of file nmg.h. Referenced by nmg_class_shells(), nmg_count_shell_kids(), nmg_find_max_index(), nmg_find_pt_in_shell(), nmg_kill_wire_edges(), nmg_ks(), nmg_m_reindex(), nmg_m_set_high_bit(), nmg_m_struct_count(), nmg_mk_new_face_from_loop(), nmg_ml(), nmg_mlv(), nmg_moveltof(), nmg_msv(), nmg_mv_lu_between_shells(), nmg_pr_s(), nmg_pr_s_briefly(), nmg_rebound(), nmg_rm_redundancies(), nmg_s_join_touchingloops(), nmg_s_split_touchingloops(), nmg_s_to_vlist(), nmg_sanitize_s_lv(), nmg_shell_a(), nmg_shell_manifolds(), nmg_show_each_loop(), nmg_vlblock_s(), rt_nmg_ialloc(), rt_nmg_idisk(), and wdb_nmg_simplify_cmd().

struct bu_list eu_hd

wire list (shell has wires) Definition at line 319 of file nmg.h. Referenced by nmg_class_shells(), nmg_count_shell_kids(), nmg_demote_lu(), nmg_find_max_index(), nmg_find_pt_in_shell(), nmg_kill_wire_edges(), nmg_ks(), nmg_m_reindex(), nmg_m_set_high_bit(), nmg_m_struct_count(), nmg_me(), nmg_meonvu(), nmg_ml(), nmg_msv(), nmg_mv_eu_between_shells(), nmg_pr_s(), nmg_pr_s_briefly(), nmg_rm_redundancies(), nmg_s_to_vlist(), nmg_shell_a(), nmg_shell_manifolds(), nmg_vlblock_s(), rt_nmg_ialloc(), rt_nmg_idisk(), and wdb_nmg_simplify_cmd().

struct vertexuse* vu_p

internal ptr to single vertexuse Definition at line 320 of file nmg.h. Referenced by nmg_class_shells(), nmg_count_shell_kids(), nmg_find_max_index(), nmg_find_pt_in_shell(), nmg_ks(), nmg_m_reindex(), nmg_m_set_high_bit(), nmg_m_struct_count(), nmg_me(), nmg_meonvu(), nmg_ml(), nmg_mlv(), nmg_msv(), nmg_polytonmg(), nmg_pr_s(), nmg_pr_s_briefly(), nmg_rm_redundancies(), nmg_s_to_vlist(), nmg_shell_a(), nmg_shell_manifolds(), nmg_vlblock_s(), and wdb_nmg_simplify_cmd().

long index

struct # in this model Definition at line 321 of file nmg.h.

---

The documentation for this struct was generated from the following file:

• include/nmg.h

---
