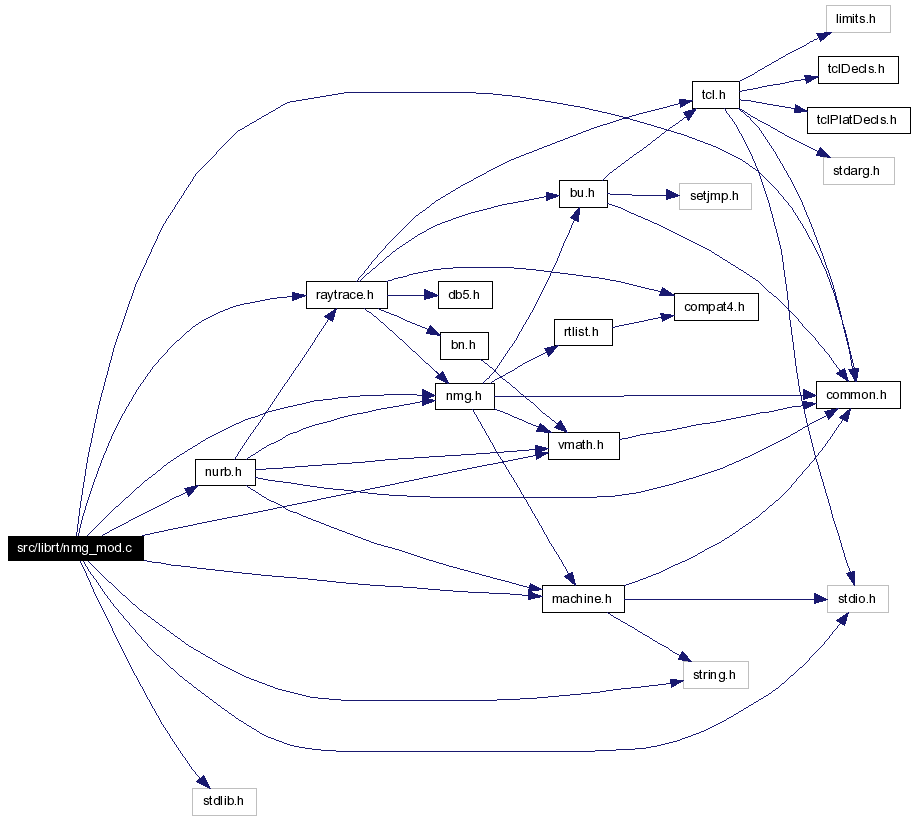

#include "common.h"#include <stdlib.h>#include <stdio.h>#include <string.h>#include "machine.h"#include "vmath.h"#include "nmg.h"#include "raytrace.h"#include "nurb.h"Include dependency graph for nmg_mod.c:
Go to the source code of this file.
Defines | |
| #define | JS_UNKNOWN 0 |
| #define | JS_SPLIT 1 |
| #define | JS_JAUNT 2 |
| #define | JS_TOUCHING_JAUNT 3 |
Functions | |
| void | nmg_merge_regions (struct nmgregion *r1, struct nmgregion *r2, const struct bn_tol *tol) |
| void | nmg_shell_coplanar_face_merge (struct shell *s, const struct bn_tol *tol, const int simplify) |
| int | nmg_simplify_shell (struct shell *s) |
| void | nmg_rm_redundancies (struct shell *s, const struct bn_tol *tol) |
| void | nmg_sanitize_s_lv (struct shell *s, int orient) |
| void | nmg_s_split_touchingloops (struct shell *s, const struct bn_tol *tol) |
| void | nmg_s_join_touchingloops (struct shell *s, const struct bn_tol *tol) |
| void | nmg_js (register struct shell *s1, register struct shell *s2, const struct bn_tol *tol) |
| void | nmg_invert_shell (struct shell *s, const struct bn_tol *tol) |
| faceuse * | nmg_cmface (struct shell *s, struct vertex ***verts, int n) |
| faceuse * | nmg_cface (struct shell *s, struct vertex **verts, int n) |
| faceuse * | nmg_add_loop_to_face (struct shell *s, struct faceuse *fu, struct vertex **verts, int n, int dir) |
| int | nmg_fu_planeeqn (struct faceuse *fu, const struct bn_tol *tol) |
| void | nmg_gluefaces (struct faceuse **fulist, int n, const struct bn_tol *tol) |
| int | nmg_simplify_face (struct faceuse *fu) |
| void | nmg_reverse_face (register struct faceuse *fu) |
| void | nmg_mv_fu_between_shells (struct shell *dest, register struct shell *src, register struct faceuse *fu) |
| void | nmg_jf (register struct faceuse *dest_fu, register struct faceuse *src_fu) |
| faceuse * | nmg_dup_face (struct faceuse *fu, struct shell *s) |
| void | nmg_jl (struct loopuse *lu, struct edgeuse *eu) |
| vertexuse * | nmg_join_2loops (struct vertexuse *vu1, struct vertexuse *vu2) |
| vertexuse * | nmg_join_singvu_loop (struct vertexuse *vu1, struct vertexuse *vu2) |
| vertexuse * | nmg_join_2singvu_loops (struct vertexuse *vu1, struct vertexuse *vu2) |
| loopuse * | nmg_cut_loop (struct vertexuse *vu1, struct vertexuse *vu2) |
| loopuse * | nmg_split_lu_at_vu (struct loopuse *lu, struct vertexuse *split_vu) |
| vertexuse * | nmg_find_repeated_v_in_lu (struct vertexuse *vu) |
| void | nmg_split_touchingloops (struct loopuse *lu, const struct bn_tol *tol) |
| int | nmg_join_touchingloops (struct loopuse *lu) |
| int | nmg_get_touching_jaunts (const struct loopuse *lu, struct bu_ptbl *tbl, int *need_init) |
| void | nmg_kill_accordions (struct loopuse *lu) |
| int | nmg_loop_split_at_touching_jaunt (struct loopuse *lu, const struct bn_tol *tol) |
| void | nmg_simplify_loop (struct loopuse *lu) |
| int | nmg_kill_snakes (struct loopuse *lu) |
| void | nmg_mv_lu_between_shells (struct shell *dest, register struct shell *src, register struct loopuse *lu) |
| void | nmg_moveltof (struct faceuse *fu, struct shell *s) |
| loopuse * | nmg_dup_loop (struct loopuse *lu, long int *parent, long int **trans_tbl) |
| void | nmg_set_lu_orientation (struct loopuse *lu, int is_opposite) |
| void | nmg_lu_reorient (struct loopuse *lu) |
| edgeuse * | nmg_eusplit (struct vertex *v, struct edgeuse *oldeu, int share_geom) |
| edgeuse * | nmg_esplit (struct vertex *v, struct edgeuse *eu, int share_geom) |
| edgeuse * | nmg_ebreak (struct vertex *v, struct edgeuse *eu) |
| edgeuse * | nmg_ebreaker (struct vertex *v, struct edgeuse *eu, const struct bn_tol *tol) |
| vertex * | nmg_e2break (struct edgeuse *eu1, struct edgeuse *eu2) |
| int | nmg_unbreak_edge (struct edgeuse *eu1_first) |
| int | nmg_unbreak_shell_edge_unsafe (struct edgeuse *eu1_first) |
| edgeuse * | nmg_eins (struct edgeuse *eu) |
| void | nmg_mv_eu_between_shells (struct shell *dest, register struct shell *src, register struct edgeuse *eu) |
| void | nmg_mv_vu_between_shells (struct shell *dest, register struct shell *src, register struct vertexuse *vu) |
Authors - Lee A. Butler Michael John Muuss
Source - SECAD/VLD Computing Consortium, Bldg 394 The U. S. Army Ballistic Research Laboratory Aberdeen Proving Ground, Maryland 21005-5066
Definition in file nmg_mod.c.
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|

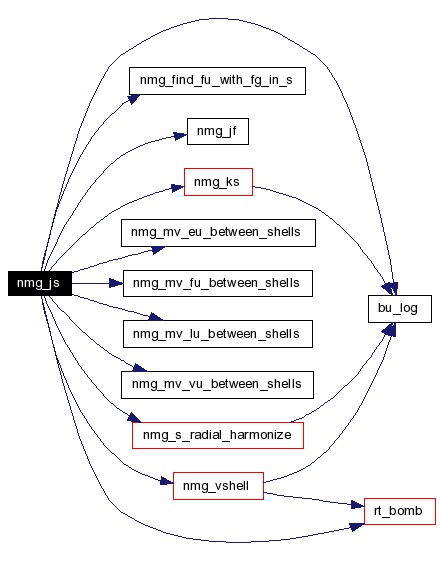

N M G _ J S Join two shells into one. This is mostly an up-pointer re-labeling activity, as it is left up to the caller to ensure that there are no non-explicit intersections. Upon return, s2 will no longer exist. The 'tol' arg is used strictly for printing purposes. Definition at line 800 of file nmg_mod.c. References BN_CK_TOL, BU_LIST_FIRST, BU_LIST_NON_EMPTY, BU_LIST_NOT_HEAD, BU_LIST_PNEXT, bu_log(), DEBUG_BASIC, DEBUG_VERIFY, edgeuse::e_p, edgeuse::eumate_p, faceuse::f_p, faceuse::fumate_p, loopuse::l_p, loopuse::lumate_p, NMG_CK_EDGE, NMG_CK_EDGEUSE, NMG_CK_FACE, NMG_CK_FACEUSE, NMG_CK_LOOP, NMG_CK_LOOPUSE, NMG_CK_SHELL, NMG_CK_VERTEX, NMG_CK_VERTEXUSE, nmg_find_fu_with_fg_in_s(), nmg_jf(), nmg_ks(), nmg_mv_eu_between_shells(), nmg_mv_fu_between_shells(), nmg_mv_lu_between_shells(), nmg_mv_vu_between_shells(), nmg_s_radial_harmonize(), nmg_vshell(), faceuse::orientation, OT_SAME, rt_bomb(), and vertexuse::v_p. Here is the call graph for this function:  |
|
||||||||||||||||
|

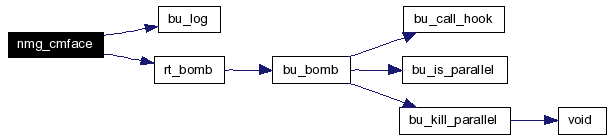

N M G _ C M F A C E Create a face with exactly one exterior loop (and no holes), given an array of pointers to struct vertex pointers. Intended to help create a "3-manifold" shell, where each edge has only two faces alongside of it. (Shades of winged edges!) "verts" is an array of "n" pointers to pointers to (struct vertex). "s" is the parent shell for the new face. The new face will consist of a single loop made from n edges between the n vertices. Before an edge is created between a pair of verticies, we check to see if there is already an edge with exactly one edgeuse+mate (in this shell) that runs between the two verticies. If such an edge can be found, the newly created edgeuses will just use the existing edge. This means that no special call to nmg_gluefaces() is needed later. If a pointer in verts is a pointer to a null vertex pointer, a new vertex is created. In this way, new verticies can be created conveniently within a user's list of known verticies verts pointers to struct vertex vertex structs ------- -------- 0 | +--|-------->| +--|--------------------------> (struct vertex) ------- -------- --------- 1 | +--|------------------------>| +---|---------> (struct vertex) ------- -------- --------- 2 | +--|-------->| +--|--------------------------> (struct vertex) ------- -------- ... ------- --------- n | +--|------------------------>| +---|---------> (struct vertex) ------- --------- The vertices *must* be listed in "counter-clockwise" (CCW) order. This routine makes only topology, without reference to any geometry. Note that this routine inserts new vertices (by edge use splitting) at the head of the loop, which reverses the order. Therefore, the caller's vertices are traversed in reverse order to counter this behavior, and to effect the proper vertex order in the final face loop. Also note that this routine uses one level more of indirection in the verts[] array than nmg_cface(). Recent improvement: the lu's list of eu's traverses the verts[] array in order specified by the caller. Imagine that. Definition at line 1056 of file nmg_mod.c. References bu_log(), NMG_CK_SHELL, NMG_CK_VERTEX, NULL, and rt_bomb(). Here is the call graph for this function:  |
|
||||||||||||||||
|

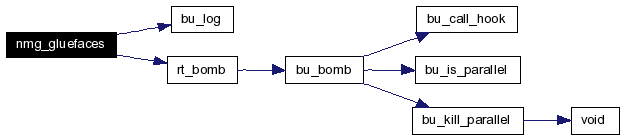

N M G _ G L U E F A C E S given a shell containing "n" faces whose outward oriented faceuses are enumerated in "fulist", glue the edges of the faces together Most especially useful after using nmg_cface() several times to make faces which share vertex structures. Definition at line 1489 of file nmg_mod.c. References bu_log(), NMG_CK_FACEUSE, NMG_CK_SHELL, rt_bomb(), and faceuse::s_p. Here is the call graph for this function:  |
|
|

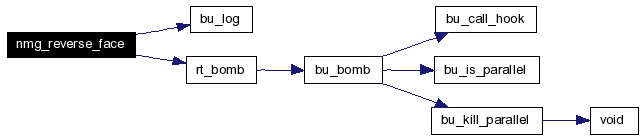

N M G _ R E V E R S E _ F A C E This routine reverses the direction of the Normal vector which defines the plane of the face. The OT_SAME faceuse becomes the OT_OPPOSITE faceuse, and vice versa. This preserves the convention that OT_SAME loopuses in the OT_SAME faceuse are counter-clockwise rotating about the surface normal. Before After N OT_SAME OT_OPPOSITE \ .<---------. .<---------. \ |fu ^ |fu ^ \ | .------ | ->. | .------ | ->. \| ^fumate | | | ^fumate | | | | | | | | | | | | | | | | | | V | | | V | | |\ .--------->. | .--------->. | \ | V | V \ .<----------. .<----------. \ OT_OPPOSITE OT_SAME \ N Also note that this reverses the same:opposite:opposite:same parity radially around each edge. This can create parity errors until all faces of this shell have been processed. Applications programmers should use nmg_invert_shell(), which does not have this problem. This routine is for internal use only. Definition at line 1624 of file nmg_mod.c. References bu_log(), DEBUG_BASIC, faceuse::fumate_p, NMG_CK_FACE, NMG_CK_FACE_G_EITHER, NMG_CK_FACEUSE, faceuse::orientation, OT_OPPOSITE, OT_SAME, and rt_bomb(). Here is the call graph for this function:  |
|
||||||||||||||||
|
N M G _ M V _ F U _ B E T W E E N _ S H E L L S Move faceuse from 'src' shell to 'dest' shell. Definition at line 1832 of file nmg_mod.c. References BU_LIST_APPEND, BU_LIST_DEQUEUE, BU_LIST_IS_EMPTY, bu_log(), DEBUG_BASIC, shell::fu_hd, faceuse::fumate_p, faceuse::l, NMG_CK_FACEUSE, OT_SAME, rt_bomb(), and faceuse::s_p. Here is the call graph for this function:  |
|
||||||||||||
|

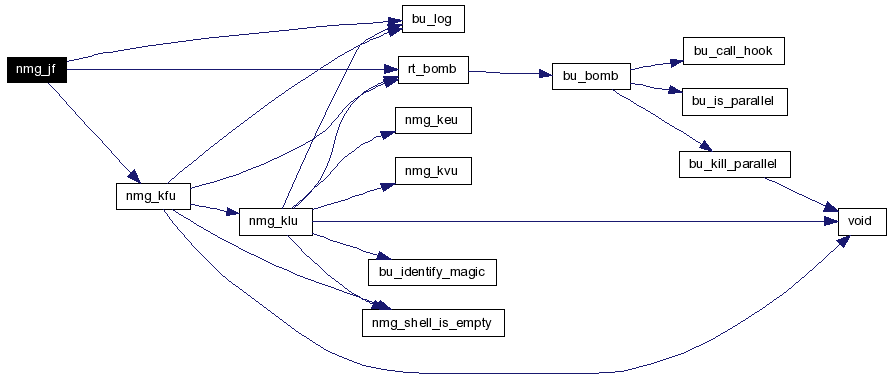

N M G _ J F Join two faces together by moving everything from the source faceuse and mate into the destination faceuse and mate, taking into account face orientations. The source face is destroyed by this operation. Definition at line 1922 of file nmg_mod.c. References bu_log(), DEBUG_BASIC, NMG_CK_FACEUSE, nmg_kfu(), and rt_bomb(). Here is the call graph for this function:  |
|
||||||||||||||||
|
N M G _ M V _ L U _ B E T W E E N _ S H E L L S Move a wire-loopuse from one shell to another. Note that this routine can not be used on loops in faces. Definition at line 3591 of file nmg_mod.c. References BU_LIST_APPEND, BU_LIST_DEQUEUE, BU_LIST_IS_EMPTY, bu_log(), DEBUG_BASIC, loopuse::l, shell::lu_hd, loopuse::lumate_p, NMG_CK_LOOPUSE, rt_bomb(), loopuse::s_p, and loopuse::up. Here is the call graph for this function:  |
|
||||||||||||||||
|

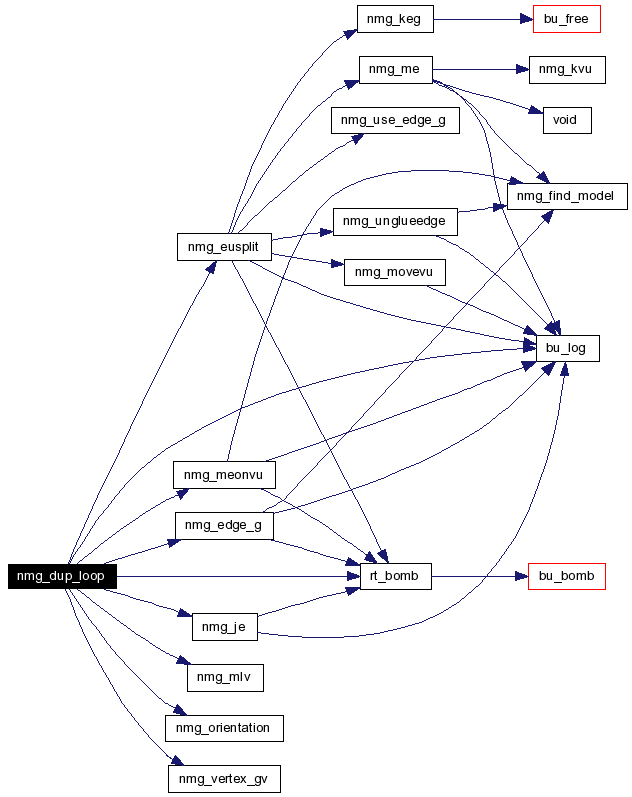

N M G _ D U P _ L O O P A support routine for nmg_dup_face() trans_tbl may be NULL. Definition at line 3678 of file nmg_mod.c. References BU_LIST_FIRST, BU_LIST_FIRST_MAGIC, BU_LIST_FOR, BU_LIST_LAST, bu_log(), vertex_g::coord, DEBUG_BASIC, loopuse::down_hd, edgeuse::e_p, edgeuse::g, edgeuse::magic_p, NMG_CK_EDGE, NMG_CK_EDGEUSE, NMG_CK_LOOPUSE, NMG_CK_VERTEX, NMG_CK_VERTEX_G, NMG_CK_VERTEXUSE, nmg_edge_g(), nmg_eusplit(), NMG_INDEX_ASSIGN, NMG_INDEX_GETP, nmg_je(), nmg_meonvu(), nmg_mlv(), nmg_orientation(), nmg_vertex_gv(), NMG_VERTEXUSE_MAGIC, NULL, loopuse::orientation, rt_bomb(), vertexuse::v_p, vertex::vg_p, and edgeuse::vu_p. Here is the call graph for this function:  |
|
||||||||||||||||
|

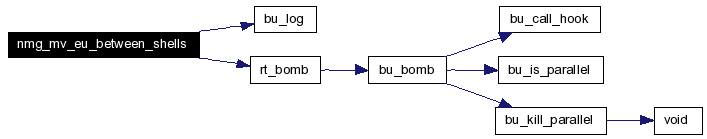

N M G _ M V _ E U _ B E T W E E N _ S H E L L S Move a wire edgeuse and it's mate from one shell to another. Definition at line 5022 of file nmg_mod.c. References BU_LIST_APPEND, BU_LIST_DEQUEUE, BU_LIST_IS_EMPTY, bu_log(), shell::eu_hd, edgeuse::eumate_p, edgeuse::l, NMG_CK_EDGEUSE, rt_bomb(), edgeuse::s_p, and edgeuse::up. Here is the call graph for this function:  |
|
||||||||||||||||
|

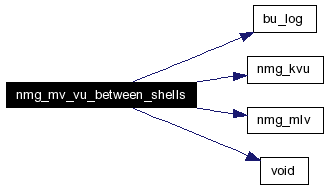

N M G _ M V _ V U _ B E T W E E N _ S H E L L S If this shell had a single vertexuse in it, move it to the other shell, but "promote" it to a "loop of a single vertex" along the way. Definition at line 5079 of file nmg_mod.c. References bu_log(), shell::l, bu_list::magic, NMG_CK_VERTEX, NMG_CK_VERTEX_G, NMG_CK_VERTEXUSE, nmg_kvu(), nmg_mlv(), OT_SAME, and void(). Here is the call graph for this function:  |
