plot3.h File Reference

#include "bu.h"
#include "vmath.h"
#include "bn.h"

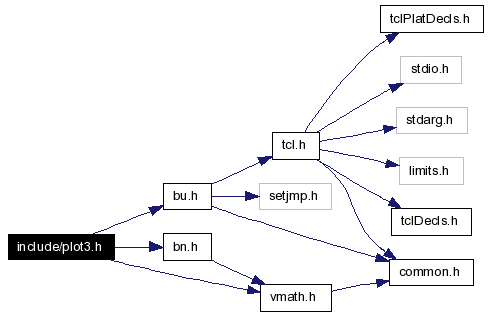

Include dependency graph for plot3.h:

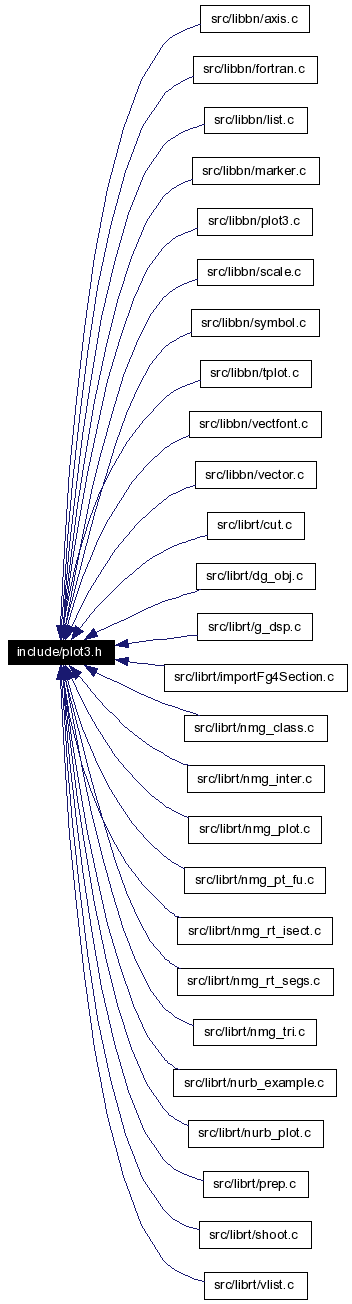

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	pl_mat_idn(_mat)   MAT_IDN( _mat )
#define	pl_mat_zero(_mat)   MAT_ZERO( _mat )
#define	pl_mat_copy(_mat1, _mat2)   MAT_COPY( _mat1, _mat2 )
#define	PL_OUTPUT_MODE_BINARY   0
#define	PL_OUTPUT_MODE_TEXT   1
#define	PL_FORTRAN(lc, uc)   BU_FORTRAN(lc,uc)
Functions
int	pl_getOutputMode ()
void	pl_setOutputMode (int mode)
void	pl_point (FILE *plotfp, int x, int y)
void	pl_line (FILE *plotfp, int fx, int fy, int tx, int ty)
void	pl_linmod (FILE *plotfp, char *s)
void	pl_move (FILE *plotfp, int x, int y)
void	pl_cont (FILE *plotfp, int x, int y)
void	pl_label (FILE *plotfp, char *s)
void	pl_space (FILE *plotfp, int x1, int y1, int x2, int y2)
void	pl_erase (FILE *plotfp)
void	pl_circle (FILE *plotfp, int x, int y, int r)
void	pl_arc (FILE *plotfp, int xc, int yc, int x1, int y1, int x2, int y2)
void	pl_box (FILE *plotfp, int x1, int y1, int x2, int y2)
void	pl_color (FILE *plotfp, int r, int g, int b)
void	pl_flush (FILE *plotfp)
void	pl_3space (FILE *plotfp, int x1, int y1, int z1, int x2, int y2, int z2)
void	pl_3point (FILE *plotfp, int x, int y, int z)
void	pl_3move (FILE *plotfp, int x, int y, int z)
void	pl_3cont (FILE *plotfp, int x, int y, int z)
void	pl_3line (FILE *plotfp, int x1, int y1, int z1, int x2, int y2, int z2)
void	pl_3box (FILE *plotfp, int x1, int y1, int z1, int x2, int y2, int z2)
void	pd_point (FILE *plotfp, double x, double y)
void	pd_line (FILE *plotfp, double fx, double fy, double tx, double ty)
void	pd_move (FILE *plotfp, double x, double y)
void	pd_cont (FILE *plotfp, double x, double y)
void	pd_space (FILE *plotfp, double x1, double y1, double x2, double y2)
void	pd_circle (FILE *plotfp, double x, double y, double r)
void	pd_arc (FILE *plotfp, double xc, double yc, double x1, double y1, double x2, double y2)
void	pd_box (FILE *plotfp, double x1, double y1, double x2, double y2)
void	pdv_3space (FILE *plotfp, const vect_t min, const vect_t max)
void	pdv_3point (FILE *plotfp, const vect_t pt)
void	pdv_3move (FILE *plotfp, const vect_t pt)
void	pdv_3cont (FILE *plotfp, const vect_t pt)
void	pdv_3line (FILE *plotfp, const vect_t a, const vect_t b)
void	pdv_3box (FILE *plotfp, const vect_t a, const vect_t b)
void	pd_3space (FILE *plotfp, double x1, double y1, double z1, double x2, double y2, double z2)
void	pd_3point (FILE *plotfp, double x, double y, double z)
void	pd_3move (FILE *plotfp, double x, double y, double z)
void	pd_3cont (FILE *plotfp, double x, double y, double z)
void	pd_3line (FILE *plotfp, double x1, double y1, double z1, double x2, double y2, double z2)
void	pd_3box (FILE *plotfp, double x1, double y1, double z1, double x2, double y2, double z2)
void	pdv_3ray (FILE *fp, const point_t pt, const vect_t dir, double t)
void	tp_i2list (FILE *fp, int *x, int *y, int npoints)
void	tp_2list (FILE *fp, double *x, double *y, int npoints)
void	f2list (FILE **fpp, float *x, float *y, int *n)
void	tp_3list (FILE *fp, double *x, double *y, double *z, int npoints)
void	f3list (FILE **fpp, float *x, float *y, float *z, int *n)
void	tp_2mlist (FILE *fp, double *x, double *y, int npoints, int flag, int mark, int interval, double size)
void	f2mlst (FILE **fp, float *x, float *y, int *np, int *flag, int *mark, int *interval, float *size)
void	tp_2marker (FILE *fp, int c, double x, double y, double scale)
void	f2mark (FILE **fp, int *c, float *x, float *y, float *scale)
void	tp_3marker (FILE *fp, int c, double x, double y, double z, double scale)
void	f3mark (FILE **fp, int *c, float *x, float *y, float *z, float *scale)
void	tp_2number (FILE *fp, double input, int x, int y, int cscale, double theta, int digits)
void	f2numb (FILE **fp, float *input, int *x, int *y, float *cscale, float *theta, int *digits)
void	tp_scale (int idata[], int elements, int mode, int length, int odata[], double *min, double *dx)
void	fscale (int idata[], int *elements, char *mode, int *length, int odata[], double *min, double *dx)
void	tp_2symbol (FILE *fp, char *string, double x, double y, double scale, double theta)
void	f2symb (FILE **fp, char *string, float *x, float *y, float *scale, float *theta)
void	tp_plot (FILE *fp, int xp, int yp, int xl, int yl, char xtitle[], char ytitle[], float x[], float y[], int n, double cscale)
void	fplot (FILE **fp, int *xp, int *yp, int *xl, int *yl, char *xtitle, char *ytitle, float *x, float *y, int *n, float *cscale)
void	tp_ftoa (float x, char *s)
	This routine converts a floating point number into a string of ascii characters of the form "sX.XXXesXX". The string is null terminated.
void	tp_fixsc (float *x, int npts, float size, float *xs, float *xmin, float *xmax, float *dx)
void	tp_sep (float x, float *coef, int *ex)
	tp_sep() divides a floating point number into a coefficient and an exponent. works in base ten.
double	tp_ipow (double x, int n)
	tp_ipow() raises a floating point number to a positve integer power. XXX Horribly inefficient!
void	tp_3axis (FILE *fp, char *string, point_t origin, mat_t rot, double length, int ccw, int ndigits, double label_start, double label_incr, double tick_separation, double char_width)
void	f3axis (FILE **fp, char *string, float *x, float *y, float *z, float *length, float *theta, int *ccw, int *ndigits, float *label_start, float *label_incr, float *tick_separation, float *char_width)
void	tp_3symbol (FILE *fp, char *string, point_t origin, mat_t rot, double scale)
void	tp_3vector (FILE *plotfp, point_t from, point_t to, double fromheadfract, double toheadfract)
void	f3vect (FILE **fp, float *fx, float *fy, float *fz, float *tx, float *ty, float *tz, float *fl, float *tl)

---

Detailed Description

This is a ANSI C header for LIBPLOT3 giving function prototypes. This header file will also work if called by a "traditional" C compiler.

For best results, before the

     #include "plot3.h"

there should be:

        #include "machine.h"
        #include "vmath.h"

although not doing this should not be fatal.

Header

/cvsroot/brlcad/brlcad/include/plot3.h,v 14.8 2006/09/18 05:24:07 lbutler Exp

Definition in file plot3.h.

---
