nmg_radial Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

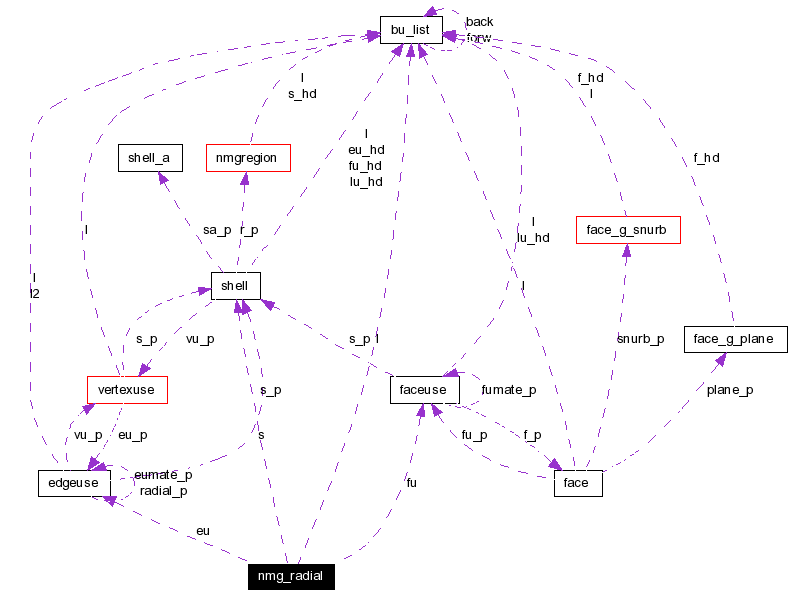

Collaboration diagram for nmg_radial:

[legend]

Data Fields
bu_list	l
edgeuse *	eu
faceuse *	fu
	Derrived from eu.
shell *	s
	Derrived from eu.
int	existing_flag
	!0 if this eu exists on dest edge
int	is_crack
	This eu is part of a crack.
int	is_outie
	This crack is an "outie".
int	needs_flip
	Insert eumate, not eu.
fastf_t	ang
	angle, in radians. 0 to 2pi

---

Detailed Description

Definition at line 2396 of file raytrace.h.

---

Field Documentation

struct bu_list l

Definition at line 2397 of file raytrace.h. Referenced by nmg_do_radial_flips(), nmg_eu_radial_check(), nmg_radial_build_list(), nmg_radial_join_eu_NEW(), nmg_radial_merge_lists(), and nmg_radial_sorted_list_insert().

struct edgeuse* eu

Definition at line 2398 of file raytrace.h. Referenced by nmg_do_radial_join(), nmg_eu_radial_check(), nmg_find_radial_eu(), nmg_insure_radial_list_is_increasing(), nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_check_parity(), nmg_radial_exchange_marked(), nmg_radial_implement_decisions(), nmg_radial_mark_cracks(), nmg_radial_mark_flips(), and nmg_radial_verify_pointers().

struct faceuse* fu

Derrived from eu. Definition at line 2399 of file raytrace.h. Referenced by nmg_do_radial_flips(), nmg_do_radial_join(), nmg_eu_radial_check(), nmg_insure_radial_list_is_increasing(), nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_check_parity(), nmg_radial_exchange_marked(), nmg_radial_find_an_original(), nmg_radial_implement_decisions(), nmg_radial_mark_flips(), nmg_radial_sorted_list_insert(), nmg_radial_verify_monotone(), and nmg_radial_verify_pointers().

struct shell* s

Derrived from eu. Definition at line 2400 of file raytrace.h. Referenced by nmg_do_radial_flips(), nmg_eu_radial_check(), nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_check_parity(), nmg_radial_find_an_original(), and nmg_radial_mark_flips().

int existing_flag

!0 if this eu exists on dest edge Definition at line 2401 of file raytrace.h. Referenced by nmg_do_radial_join(), nmg_pr_radial(), nmg_radial_build_list(), and nmg_radial_implement_decisions().

int is_crack

This eu is part of a crack. Definition at line 2402 of file raytrace.h. Referenced by nmg_pr_radial(), nmg_radial_build_list(), and nmg_radial_mark_cracks().

int is_outie

This crack is an "outie". Definition at line 2403 of file raytrace.h. Referenced by nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_check_parity(), nmg_radial_find_an_original(), nmg_radial_mark_cracks(), and nmg_radial_mark_flips().

int needs_flip

Insert eumate, not eu. Definition at line 2404 of file raytrace.h. Referenced by nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_exchange_marked(), nmg_radial_implement_decisions(), and nmg_radial_mark_flips().

fastf_t ang

angle, in radians. 0 to 2pi Definition at line 2405 of file raytrace.h. Referenced by nmg_do_radial_flips(), nmg_insure_radial_list_is_increasing(), nmg_pr_radial(), nmg_radial_build_list(), nmg_radial_sorted_list_insert(), nmg_radial_verify_monotone(), and nmg_radial_verify_pointers().

---

The documentation for this struct was generated from the following file:

• include/raytrace.h

---
