top_face Struct Reference

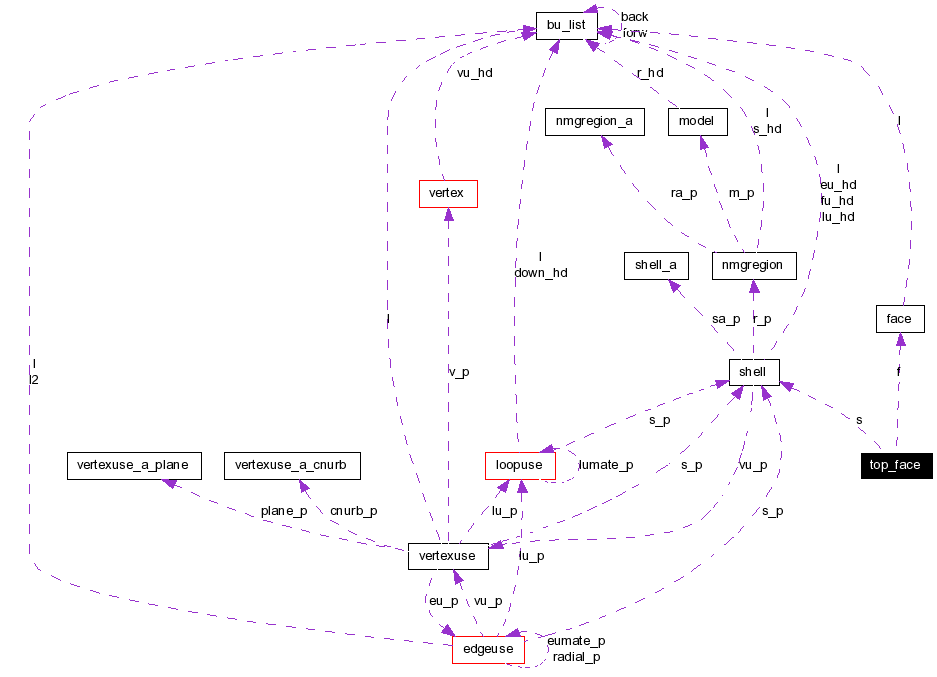

Collaboration diagram for top_face:

[legend]

Data Fields
shell *	s
face *	f
int	dir
vect_t	normal

---

Detailed Description

N M G _ A S S O C _ V O I D _ S H E L L S

Passed an bu_ptbl structure containing one shell, this routine examines the other shells in the region to determine if any are void shells within the shell on the bu_ptbl list. Any such void shells found are added to the bu_ptbl list. The final result is a ptbl list of shells where the first shell on the list is the outer shell, and any additional shells one the list are void shells within that outer shell. This is a support routine for "nmg_find_outer_and_void_shells" and gets called for every outer shell in the region

Definition at line 653 of file nmg_misc.c.

---

Field Documentation

struct shell* s

Definition at line 655 of file nmg_misc.c.

struct face* f

Definition at line 656 of file nmg_misc.c.

int dir

Definition at line 657 of file nmg_misc.c.

vect_t normal

Definition at line 658 of file nmg_misc.c.

---

The documentation for this struct was generated from the following file:

• src/librt/nmg_misc.c

---
