shadework Struct Reference
[Rt]

#include <shadework.h>

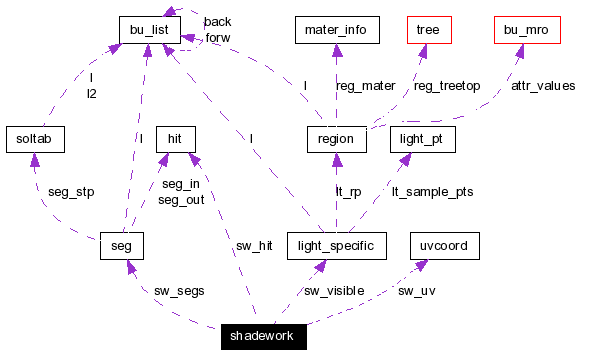

Collaboration diagram for shadework:

[legend]

Data Fields
fastf_t	sw_transmit
	0.0 -> 1.0
fastf_t	sw_reflect
	0.0 -> 1.0
fastf_t	sw_extinction
	extinction coeff, mm^-1
fastf_t	sw_refrac_index
fastf_t	sw_temperature
fastf_t	sw_color [3]
	shaded color
fastf_t	sw_basecolor [3]
	base color
hit	sw_hit
	ray hit (dist,point,normal)
uvcoord	sw_uv
fastf_t	sw_intensity [3 *SW_NLIGHTS]
	light intensities
fastf_t	sw_tolight [3 *SW_NLIGHTS]
	light directions
light_specific *	sw_visible [SW_NLIGHTS]
	visibility flags/ptrs
fastf_t	sw_lightfract [SW_NLIGHTS]
	% light visible
int	sw_xmitonly
	flag: need sw_transmit only sw_xmitonly=1, compute transmission only sw_xmitonly=2, want parameters only, not even transmission
int	sw_inputs
	fields from mf_inputs actually filled
int	sw_frame
	# of current frame
fastf_t	sw_frametime
	frame time delta off 1st frame
fastf_t	sw_pixeltime
	pixel time delta off 1st pixel of 1st frame
seg *	sw_segs
	segs which made partition
int	sw_phong_set_vector
fastf_t	sw_phong_transmit
fastf_t	sw_phong_reflect
fastf_t	sw_phong_ri
fastf_t	sw_phong_extinction
fastf_t	sw_phong_ambient
fastf_t	sw_phong_emission

---

Detailed Description

Definition at line 43 of file shadework.h.

---

Field Documentation

fastf_t sw_transmit

0.0 -> 1.0 Definition at line 45 of file shadework.h.

fastf_t sw_reflect

0.0 -> 1.0 Definition at line 46 of file shadework.h.

fastf_t sw_extinction

extinction coeff, mm^-1 Definition at line 47 of file shadework.h.

fastf_t sw_refrac_index

Definition at line 48 of file shadework.h.

fastf_t sw_temperature

Definition at line 49 of file shadework.h.

fastf_t sw_color[3]

shaded color Definition at line 54 of file shadework.h.

fastf_t sw_basecolor[3]

base color Definition at line 55 of file shadework.h.

struct hit sw_hit

ray hit (dist,point,normal) Definition at line 57 of file shadework.h.

struct uvcoord sw_uv

Definition at line 58 of file shadework.h.

fastf_t sw_intensity[3 *SW_NLIGHTS]

light intensities Definition at line 62 of file shadework.h.

fastf_t sw_tolight[3 *SW_NLIGHTS]

light directions Definition at line 64 of file shadework.h.

struct light_specific* sw_visible[SW_NLIGHTS]

visibility flags/ptrs Definition at line 65 of file shadework.h.

fastf_t sw_lightfract[SW_NLIGHTS]

% light visible Definition at line 66 of file shadework.h.

int sw_xmitonly

flag: need sw_transmit only sw_xmitonly=1, compute transmission only sw_xmitonly=2, want parameters only, not even transmission Definition at line 67 of file shadework.h.

int sw_inputs

fields from mf_inputs actually filled Definition at line 70 of file shadework.h.

int sw_frame

# of current frame Definition at line 71 of file shadework.h.

fastf_t sw_frametime

frame time delta off 1st frame Definition at line 72 of file shadework.h.

fastf_t sw_pixeltime

pixel time delta off 1st pixel of 1st frame Definition at line 73 of file shadework.h.

struct seg* sw_segs

segs which made partition Definition at line 74 of file shadework.h.

int sw_phong_set_vector

Definition at line 84 of file shadework.h.

fastf_t sw_phong_transmit

Definition at line 85 of file shadework.h.

fastf_t sw_phong_reflect

Definition at line 86 of file shadework.h.

fastf_t sw_phong_ri

Definition at line 87 of file shadework.h.

fastf_t sw_phong_extinction

Definition at line 88 of file shadework.h.

fastf_t sw_phong_ambient

Definition at line 89 of file shadework.h.

fastf_t sw_phong_emission

Definition at line 90 of file shadework.h.

---

The documentation for this struct was generated from the following file:

• include/shadework.h

---
