solid Struct Reference
[librt geometry, raytracing]

#include <solid.h>

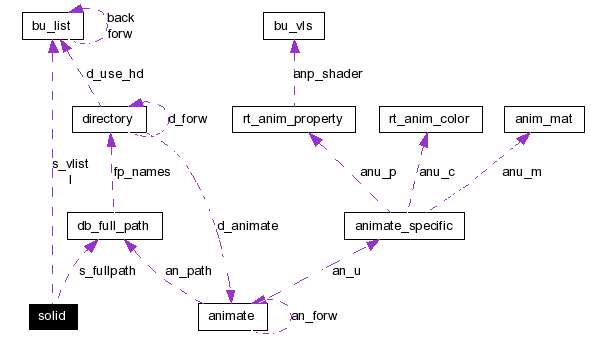

Collaboration diagram for solid:

[legend]

Data Fields
bu_list	l
fastf_t	s_size
	Distance across solid, in model space.
fastf_t	s_csize
	Dist across clipped solid (model space).
vect_t	s_center
	Center point of solid, in model space.
bu_list	s_vlist
	Pointer to unclipped vector list.
int	s_vlen
	# of actual cmd[] entries in vlist
db_full_path	s_fullpath
char	s_flag
	UP = object visible, DOWN = obj invis.
char	s_iflag
	UP = illuminated, DOWN = regular.
char	s_soldash
	solid/dashed line flag
char	s_Eflag
	flag - not a solid but an "E'd" region
char	s_uflag
	1 - the user specified the color
char	s_dflag
	1 - s_basecolor is derived from the default
char	s_cflag
	1 - use the default color
char	s_wflag
	work flag
unsigned char	s_basecolor [3]
	color from containing region
unsigned char	s_color [3]
	color to draw as
short	s_regionid
	region ID
unsigned int	s_dlist
	display list index
fastf_t	s_transparency
	holds a transparency value in the range [0.0, 1.0]
int	s_dmode
	draw mode: 0 - wireframe 1 - shaded bots and polysolids only (booleans NOT evaluated) 2 - shaded (booleans NOT evaluated) 3 - shaded (booleans evaluated)

---

Detailed Description

Definition at line 40 of file solid.h.

---

Field Documentation

struct bu_list l

Definition at line 41 of file solid.h. Referenced by dgo_build_tops(), dgo_color_soltab(), dgo_drawH_part2(), Dgo_Init(), dgo_invent_solid(), and dgo_zap_cmd().

fastf_t s_size

Distance across solid, in model space. Definition at line 42 of file solid.h. Referenced by dgo_autoview(), and dgo_get_autoview_cmd().

fastf_t s_csize

Dist across clipped solid (model space). Definition at line 43 of file solid.h.

vect_t s_center

Center point of solid, in model space. Definition at line 44 of file solid.h. Referenced by dgo_autoview(), and dgo_get_autoview_cmd().

struct bu_list s_vlist

Pointer to unclipped vector list. Definition at line 45 of file solid.h. Referenced by dgo_drawH_part2(), and dgo_invent_solid().

int s_vlen

# of actual cmd[] entries in vlist Definition at line 46 of file solid.h.

struct db_full_path s_fullpath

Definition at line 47 of file solid.h. Referenced by dgo_drawH_part2(), dgo_get_autoview_cmd(), dgo_how_cmd(), dgo_illum_cmd(), dgo_invent_solid(), and dgo_set_transparency_cmd().

char s_flag

UP = object visible, DOWN = obj invis. Definition at line 48 of file solid.h. Referenced by dgo_build_tops(), dgo_drawH_part2(), and dgo_who_cmd().

char s_iflag

UP = illuminated, DOWN = regular. Definition at line 49 of file solid.h. Referenced by dgo_drawH_part2(), dgo_illum_cmd(), and dgo_invent_solid().

char s_soldash

solid/dashed line flag Definition at line 50 of file solid.h. Referenced by dgo_drawH_part2(), and dgo_invent_solid().

char s_Eflag

flag - not a solid but an "E'd" region Definition at line 51 of file solid.h. Referenced by dgo_drawH_part2(), and dgo_invent_solid().

char s_uflag

1 - the user specified the color Definition at line 52 of file solid.h. Referenced by dgo_color_soltab(), dgo_drawH_part2(), and dgo_invent_solid().

char s_dflag

1 - s_basecolor is derived from the default Definition at line 53 of file solid.h. Referenced by dgo_drawH_part2(), and dgo_invent_solid().

char s_cflag

1 - use the default color Definition at line 54 of file solid.h. Referenced by dgo_color_soltab(), dgo_drawH_part2(), and dgo_invent_solid().

char s_wflag

work flag Definition at line 55 of file solid.h. Referenced by dgo_invent_solid().

unsigned char s_basecolor[3]

color from containing region Definition at line 56 of file solid.h. Referenced by dgo_color_soltab(), dgo_drawH_part2(), and dgo_invent_solid().

unsigned char s_color[3]

color to draw as Definition at line 57 of file solid.h. Referenced by dgo_color_soltab(), and dgo_invent_solid().

short s_regionid

region ID Definition at line 58 of file solid.h. Referenced by dgo_color_soltab(), dgo_drawH_part2(), and dgo_invent_solid().

unsigned int s_dlist

display list index Definition at line 59 of file solid.h. Referenced by dgo_invent_solid().

fastf_t s_transparency

holds a transparency value in the range [0.0, 1.0] Definition at line 60 of file solid.h. Referenced by dgo_drawH_part2(), dgo_how_cmd(), dgo_invent_solid(), and dgo_set_transparency_cmd().

int s_dmode

draw mode: 0 - wireframe 1 - shaded bots and polysolids only (booleans NOT evaluated) 2 - shaded (booleans NOT evaluated) 3 - shaded (booleans evaluated) Definition at line 61 of file solid.h. Referenced by dgo_drawH_part2(), dgo_how_cmd(), and dgo_invent_solid().

---

The documentation for this struct was generated from the following file:

• include/solid.h

---
