optical.h File Reference

Header file for the BRL-CAD Optical Library, LIBOPTICAL. More...

#include "common.h"
#include "bu.h"
#include "shadefuncs.h"
#include "shadework.h"

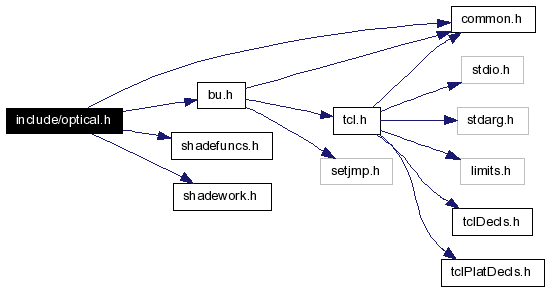

Include dependency graph for optical.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	floatpixel
Defines
#define	SEEN_OPTICAL_H   seen
#define	R_DEBUG   rdebug
#define	RDEBUG_HITS   0x00000001
#define	RDEBUG_MATERIAL   0x00000002
#define	RDEBUG_SHOWERR   0x00000004
#define	RDEBUG_RTMEM   0x00000008
#define	RDEBUG_SHADE   0x00000010
#define	RDEBUG_PARSE   0x00000020
#define	RDEBUG_LIGHT   0x00000040
#define	RDEBUG_REFRACT   0x00000080
#define	RDEBUG_STATS   0x00000200
#define	RDEBUG_RTMEM_END   0x00000400
#define	RDEBUG_MISSPLOT   0x20000000
#define	RDEBUG_RAYWRITE   0x40000000
#define	RDEBUG_RAYPLOT   0x80000000
#define	RDEBUG_FORMAT   "\020\040RAYPLOT\037RAYWRITE\036MISSPLOT\\013RTMEM_END\\012STATS\010REFRACT\\7LIGHT\6PARSE\5SHADE\4RTMEM\3SHOWERR\2MATERIAL\1HITS"
#define	VERBOSE_LIBVERSIONS   0x00000001
#define	VERBOSE_MODELTITLE   0x00000002
#define	VERBOSE_TOLERANCE   0x00000004
#define	VERBOSE_STATS   0x00000008
#define	VERBOSE_FRAMENUMBER   0x00000010
#define	VERBOSE_VIEWDETAIL   0x00000020
#define	VERBOSE_LIGHTINFO   0x00000040
#define	VERBOSE_INCREMENTAL   0x00000080
#define	VERBOSE_MULTICPU   0x00000100
#define	VERBOSE_OUTPUTFILE   0x00000200
#define	VERBOSE_FORMAT   "\012OUTPUTFILE\011MULTICPU\010INCREMENTAL\7LIGHTINFO\6VIEWDETAIL\\5FRAMENUMBER\4STATS\3TOLERANCE\2MODELTITLE\1LIBVERSIONS"
Functions
__BEGIN_DECLS OPTICAL_EXPORT void	optical_shader_init (struct mfuncs **headp)
OPTICAL_EXPORT int	mlib_zero ()
OPTICAL_EXPORT int	mlib_one ()
OPTICAL_EXPORT void	mlib_void ()
OPTICAL_EXPORT int	rr_render (register struct application *ap, struct partition *pp, struct shadework *swp)
OPTICAL_EXPORT void	shade_inputs (struct application *ap, const struct partition *pp, struct shadework *swp, int want)
OPTICAL_EXPORT void	wray (register struct partition *pp, register struct application *ap, FILE *fp, const vect_t inormal)
OPTICAL_EXPORT void	wraypts (vect_t in, vect_t inorm, vect_t out, int id, struct application *ap, FILE *fp)
OPTICAL_EXPORT void	wraypaint (vect_t start, vect_t norm, int paint, struct application *ap, FILE *fp)
OPTICAL_EXPORT int	viewshade (struct application *ap, register const struct partition *pp, register struct shadework *swp)
Variables
OPTICAL_EXPORT int	rdebug
OPTICAL_EXPORT int	rt_verbosity
OPTICAL_EXPORT double	AmbientIntensity
OPTICAL_EXPORT vect_t	background
OPTICAL_EXPORT struct region	env_region
OPTICAL_EXPORT int	max_bounces
OPTICAL_EXPORT int	max_ireflect
OPTICAL_EXPORT const char	liboptical_version []

---

Detailed Description

Header file for the BRL-CAD Optical Library, LIBOPTICAL.

Definition in file optical.h.

---
