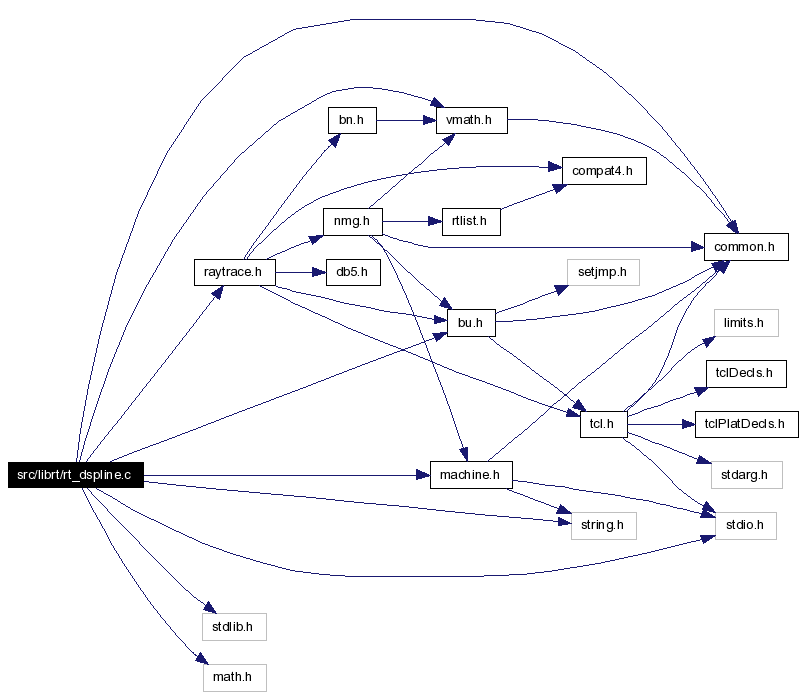

#include "common.h"#include <stdlib.h>#include <stdio.h>#include <string.h>#include <math.h>#include "machine.h"#include "vmath.h"#include "bu.h"#include "raytrace.h"Include dependency graph for rt_dspline.c:
Go to the source code of this file.
Functions | |
| void | rt_dspline_matrix (fastf_t *m, const char *type, const double tension, const double bias) |
| double | rt_dspline4 (fastf_t *m, double a, double b, double c, double d, double alpha) |
| void | rt_dspline4v (double *pt, const fastf_t *m, const double *a, const double *b, const double *c, const double *d, const int depth, const double alpha) |
| void | rt_dspline_n (double *r, const fastf_t *m, const double *knots, const int nknots, const int depth, const double alpha) |
rt_dspline_matrix(m, type, tension, bias) create basis matrix rt_dspline4(m, a, b, c, d, alpha) interpolate 1 value rt_dspline4v(m, a, b, c, d, depth alpha) interpolate vectors rt_dspline(r, m, knots, n, depth, alpha) interpolate n knots over 0..1
Example: mat_t m; double d; vect_t v; vect_t kn = { {0., 0., 0.}, {0., 1., 0.}, {.5, 1., 0.}, {1., 1., 0.}, {1., 0., 0.} };
rt_dspline_matrix(m, "Beta", 0.5, 1.0);
d = rt_dspline4(m, .0, .0, 1.0, 1.0, 0.25);
for (p = 0.0 ; p <= 1.0 ; p += 0.0625 ) { rt_dspline(v, m, kn, 5, 3, p); bu_log("%g (%g %g %g)\n", p, V3ARGS(v)); }
Author - Lee A. Butler
Source - The U. S. Army Research Laboratory Aberdeen Proving Ground, Maryland 21005-5068 USA
Definition in file rt_dspline.c.
|
||||||||||||||||||||
|
Definition at line 137 of file rt_dspline.c. References bu_log(). Here is the call graph for this function:  |
|
||||||||||||||||||||||||||||
|
Definition at line 163 of file rt_dspline.c. |
|
||||||||||||||||||||||||||||||||||||
|
Definition at line 190 of file rt_dspline.c. |
|
||||||||||||||||||||||||||||
|

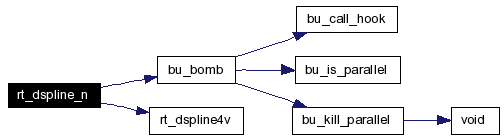

Definition at line 240 of file rt_dspline.c. References bu_bomb(), int, and rt_dspline4v(). Here is the call graph for this function:  |
