rt_comb_internal Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

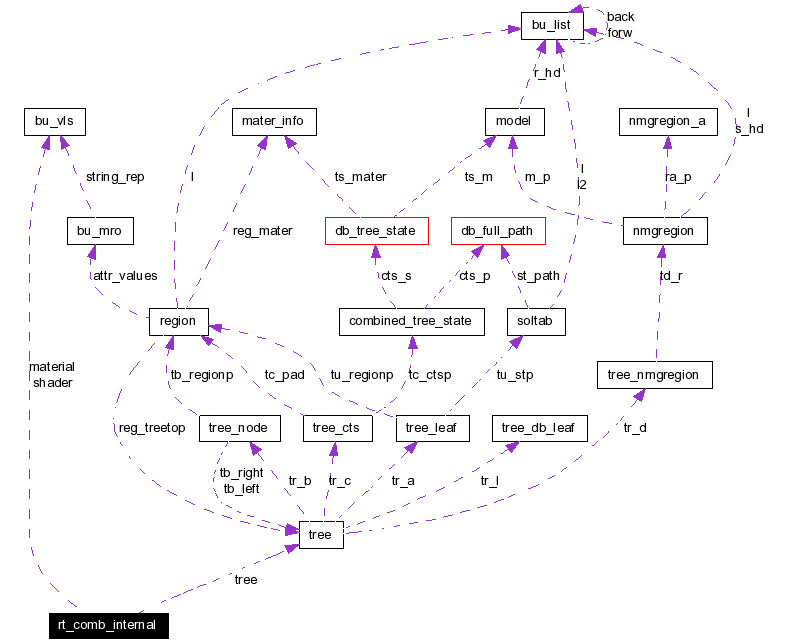

Collaboration diagram for rt_comb_internal:

[legend]

Data Fields
long	magic
tree *	tree
	Leading to tree_db_leaf leaves.
char	region_flag
	!0 ==> this COMB is a REGION
char	is_fastgen
	REGION_NON_FASTGEN/_PLATE/_VOLUME.
int	region_id
int	aircode
int	GIFTmater
int	los
char	rgb_valid
	!0 ==> rgb[] has valid color
unsigned char	rgb [3]
float	temperature
	> 0 ==> region temperature
bu_vls	shader
bu_vls	material
char	inherit

---

Detailed Description

R T _ C O M B _ I N T E R N A L

In-memory format for database "combination" record (non-leaf node). (Regions and Groups are both a kind of Combination). Perhaps move to wdb.h or rtgeom.h?

Definition at line 922 of file raytrace.h.

---

Field Documentation

long magic

Definition at line 923 of file raytrace.h. Referenced by rt_comb_ifree(), rt_comb_import5(), rt_comb_make(), and wdb_combadd().

union tree* tree

Leading to tree_db_leaf leaves. Definition at line 924 of file raytrace.h. Referenced by add_solid(), db_comb_describe(), db_follow_path(), db_functree(), db_preorder_traverse(), db_recurse(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_ifree(), rt_comb_import5(), rt_comb_make(), rt_comb_tclget(), rt_find_paths(), wdb_combadd(), wdb_identitize(), wdb_remove_cmd(), and wdb_showmats_cmd().

char region_flag

!0 ==> this COMB is a REGION Definition at line 925 of file raytrace.h. Referenced by db_comb_describe(), db_flags_internal(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), rt_comb_tcladjust(), rt_comb_tclget(), wdb_comb_std_cmd(), and wdb_combadd().

char is_fastgen

REGION_NON_FASTGEN/_PLATE/_VOLUME. Definition at line 926 of file raytrace.h. Referenced by db_comb_describe(), rt_comb_export4(), and rt_comb_export5().

int region_id

Definition at line 928 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), rt_comb_tclget(), wdb_comb_std_cmd(), wdb_combadd(), and wdb_whatid_cmd().

int aircode

Definition at line 929 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), rt_comb_tclget(), wdb_comb_std_cmd(), and wdb_combadd().

int GIFTmater

Definition at line 930 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), rt_comb_tclget(), wdb_comb_std_cmd(), and wdb_combadd().

int los

Definition at line 931 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), rt_comb_tclget(), wdb_comb_std_cmd(), and wdb_combadd().

char rgb_valid

!0 ==> rgb[] has valid color Definition at line 933 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), and rt_comb_tclget().

unsigned char rgb[3]

Definition at line 934 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), and rt_comb_tclget().

float temperature

> 0 ==> region temperature Definition at line 935 of file raytrace.h. Referenced by rt_comb_export5(), rt_comb_import5(), and rt_comb_make().

struct bu_vls shader

Definition at line 936 of file raytrace.h. Referenced by db_comb_describe(), main(), rt_comb_export4(), rt_comb_export5(), rt_comb_ifree(), rt_comb_import5(), rt_comb_make(), rt_comb_tclget(), and wdb_combadd().

struct bu_vls material

Definition at line 937 of file raytrace.h. Referenced by main(), rt_comb_export5(), rt_comb_ifree(), rt_comb_import5(), rt_comb_make(), rt_comb_tclget(), and wdb_combadd().

char inherit

Definition at line 938 of file raytrace.h. Referenced by db_comb_describe(), rt_comb_export4(), rt_comb_export5(), rt_comb_make(), and rt_comb_tclget().

---

The documentation for this struct was generated from the following file:

• include/raytrace.h

---
