Vertex Trees
[libbn (numerical functions)]

Collaboration diagram for Vertex Trees:

Files
file	vert_tree.c
	Routines to manage a binary search tree of vertices.
Data Structures
union	vert_tree
Defines
#define	VERT_LEAF   'l'
#define	VERT_NODE   'n'
Functions
vert_root *	create_vert_tree ()
	routine to create a vertex tree.
vert_root *	create_vert_tree_w_norms ()
	routine to create a vertex tree.
void	clean_vert_tree (struct vert_root *tree_root)
	Routine to free the binary search tree and reset the current number of vertices. The vertex array is left untouched, for re-use later.
void	free_vert_tree (struct vert_root *vert_root)
	Routine to free a vertex tree and all associated dynamic memory.
int	Add_vert (double x, double y, double z, struct vert_root *vert_root, fastf_t local_tol_sq)
	Routine to add a vertex to the current list of part vertices. The array is re-alloc'd if needed. Returns index into the array of vertices where this vertex is stored.
int	Add_vert_and_norm (double x, double y, double z, double nx, double ny, double nz, struct vert_root *vert_root, fastf_t local_tol_sq)
	Routine to add a vertex and a normal to the current list of part vertices. The array is re-alloc'd if needed. Returns index into the array of vertices where this vertex and normal is stored.

---

Define Documentation

#define VERT_LEAF   'l'

Definition at line 90 of file vert_tree.c. Referenced by Add_vert().

#define VERT_NODE   'n'

Definition at line 91 of file vert_tree.c. Referenced by Add_vert(), and Add_vert_and_norm().

---

Function Documentation

struct vert_root* create_vert_tree (   )

routine to create a vertex tree. C R E A T E _ V E R T _ T R E E Possible refinements include specifying an initial size Definition at line 101 of file vert_tree.c. References bu_calloc(), bu_malloc(), vert_root::curr_vert, vert_root::magic, vert_root::max_vert, NULL, vert_root::the_array, vert_root::the_tree, vert_root::tree_type, TREE_TYPE_VERTS, VERT_BLOCK, and VERT_TREE_MAGIC. Here is the call graph for this function:

struct vert_root* create_vert_tree_w_norms (   )

routine to create a vertex tree. C R E A T E _ V E R T _ T R E E _ W _ N O R M S Possible refinements include specifying an initial size Definition at line 123 of file vert_tree.c. References bu_calloc(), bu_malloc(), vert_root::curr_vert, vert_root::magic, vert_root::max_vert, NULL, vert_root::the_array, vert_root::the_tree, vert_root::tree_type, TREE_TYPE_VERTS_AND_NORMS, VERT_BLOCK, and VERT_TREE_MAGIC. Here is the call graph for this function:

void clean_vert_tree (  struct vert_root *  tree_root  )

Routine to free the binary search tree and reset the current number of vertices. The vertex array is left untouched, for re-use later. C L E A N _ V E R T _ T R E E Definition at line 160 of file vert_tree.c. References BN_CK_VERT_TREE, vert_root::curr_vert, NULL, and vert_root::the_tree.

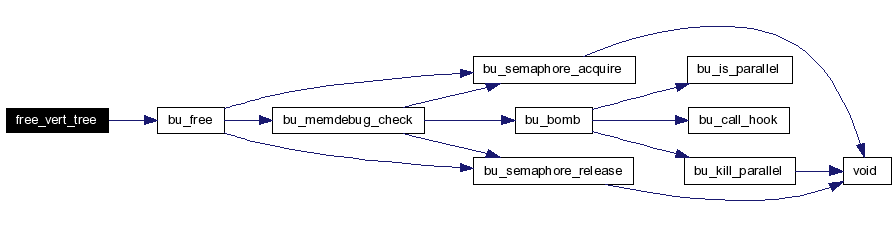

void free_vert_tree (  struct vert_root *  vert_root  )

Routine to free a vertex tree and all associated dynamic memory. F R E E _ V E R T_ T R E E Definition at line 193 of file vert_tree.c. References BN_CK_VERT_TREE, bu_free(), vert_root::curr_vert, vert_root::max_vert, NULL, ptr, vert_root::the_array, and vert_root::the_tree. Here is the call graph for this function:

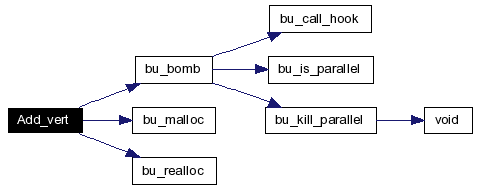

int Add_vert (  double  x, double  y, double  z, struct vert_root *  vert_root, fastf_t  local_tol_sq )

Routine to add a vertex to the current list of part vertices. The array is re-alloc'd if needed. Returns index into the array of vertices where this vertex is stored. A D D _ V E R T Definition at line 225 of file vert_tree.c. References BN_CK_VERT_TREE, bu_bomb(), bu_malloc(), bu_realloc(), vert_tree::vert_node::coord, vert_root::curr_vert, vert_tree::vert_node::cut_val, vert_tree::vert_node::higher, vert_tree::vert_node::lower, vert_root::max_vert, NULL, ptr, vert_root::the_array, vert_root::the_tree, vert_root::tree_type, TREE_TYPE_VERTS, VERT_BLOCK, VERT_LEAF, VERT_NODE, VMOVE, vert_tree::vnode, and VSET. Here is the call graph for this function:

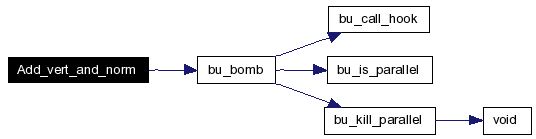

int Add_vert_and_norm (  double  x, double  y, double  z, double  nx, double  ny, double  nz, struct vert_root *  vert_root, fastf_t  local_tol_sq )

Routine to add a vertex and a normal to the current list of part vertices. The array is re-alloc'd if needed. Returns index into the array of vertices where this vertex and normal is stored. A D D _ V E R T _ A N D _ N O R M Definition at line 350 of file vert_tree.c. References BN_CK_VERT_TREE, bu_bomb(), NULL, ptr, vert_root::the_array, vert_root::the_tree, vert_root::tree_type, TREE_TYPE_VERTS_AND_NORMS, VDOT, VERT_NODE, and VSET. Here is the call graph for this function:

---
