rt_piecelist Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

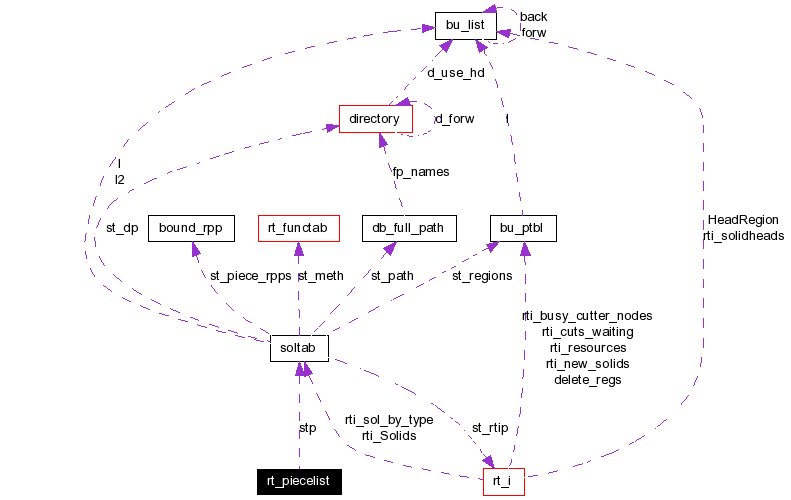

Collaboration diagram for rt_piecelist:

[legend]

Data Fields
long	magic
long	npieces
	number of pieces in pieces[] array
long *	pieces
	pieces[npieces], piece indices
soltab *	stp
	ref back to solid

---

Detailed Description

R T _ P I E C E L I S T

For each space partitioning cell, there is one of these for each solid in that cell which uses pieces. Storage for the array is allocated at cut time, and never changes.

It is expected that the indices allocated by any solid range from 0..(npieces-1).

The piece indices are used as a subscript into a solid-specific table, and also into the 'shot' bitv of the corresponding rt_piecestate.

The values (subscripts) in pieces[] are specific to a single solid (stp).

Definition at line 1429 of file raytrace.h.

---

Field Documentation

long magic

Definition at line 1430 of file raytrace.h. Referenced by rt_ct_populate_box(), and rt_cut_extend().

long npieces

number of pieces in pieces[] array Definition at line 1431 of file raytrace.h. Referenced by rt_ct_piececount(), rt_ct_populate_box(), rt_cut_extend(), and rt_split_mostly_empty_cells().

long* pieces

pieces[npieces], piece indices Definition at line 1432 of file raytrace.h. Referenced by rt_ct_populate_box(), rt_cut_extend(), and rt_split_mostly_empty_cells().

struct soltab* stp

ref back to solid Definition at line 1433 of file raytrace.h. Referenced by insert_in_bsp(), remove_from_bsp(), rt_bot_piece_shot(), rt_ct_populate_box(), rt_cut_extend(), rt_shootray(), and rt_split_mostly_empty_cells().

---

The documentation for this struct was generated from the following file:

• include/raytrace.h

---
