ray_data Struct Reference
[librt geometry, raytracing]

#include <raytrace.h>

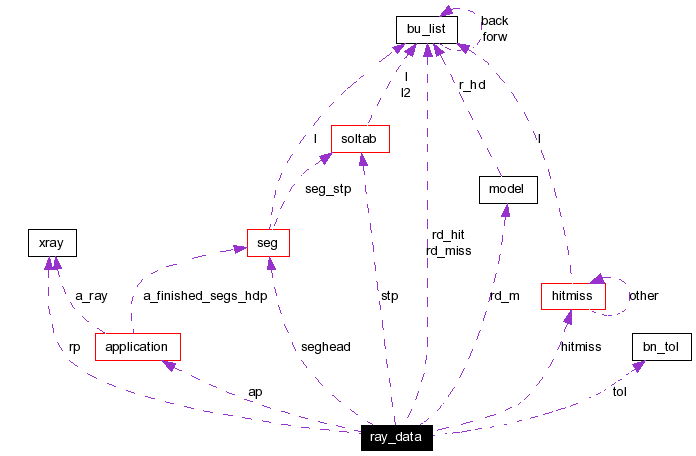

Collaboration diagram for ray_data:

[legend]

Data Fields
long	magic
model *	rd_m
char *	manifolds
	structure 1-3manifold table
vect_t	rd_invdir
xray *	rp
application *	ap
seg *	seghead
soltab *	stp
const struct bn_tol *	tol
hitmiss **	hitmiss
	1 struct hitmiss ptr per elem.
bu_list	rd_hit
	list of hit elements
bu_list	rd_miss
	list of missed/sub-hit elements
point_t	plane_pt
	ray/plane(face) intercept point
fastf_t	ray_dist_to_plane
	ray parametric dist to plane
int	face_subhit
int	classifying_ray

---

Detailed Description

Definition at line 2298 of file raytrace.h.

---

Field Documentation

long magic

Definition at line 2299 of file raytrace.h. Referenced by classify_seg(), nmg_class_ray_vs_shell(), rt_nmg_shot(), and shoot_and_plot().

struct model* rd_m

Definition at line 2300 of file raytrace.h. Referenced by nmg_class_ray_vs_shell(), nmg_isect_ray_model(), rt_nmg_shot(), and shoot_and_plot().

char* manifolds

structure 1-3manifold table Definition at line 2301 of file raytrace.h. Referenced by nmg_class_ray_vs_shell(), and rt_nmg_shot().

vect_t rd_invdir

Definition at line 2302 of file raytrace.h. Referenced by classify_seg(), nmg_class_ray_vs_shell(), nmg_isect_ray_model(), rt_nmg_shot(), and shoot_and_plot().

struct xray* rp

Definition at line 2303 of file raytrace.h. Referenced by classify_seg(), isect_ray_lseg(), isect_ray_planar_face(), isect_ray_snurb_face(), nmg_class_ray_vs_shell(), nmg_isect_ray_model(), rt_nmg_shot(), and shoot_and_plot().

struct application* ap

Definition at line 2304 of file raytrace.h. Referenced by classify_seg(), isect_ray_lseg(), isect_ray_snurb_face(), nmg_class_ray_vs_shell(), nmg_ray_segs(), rt_nmg_shot(), and shoot_and_plot().

struct seg* seghead

Definition at line 2305 of file raytrace.h. Referenced by classify_seg(), nmg_class_ray_vs_shell(), nmg_ray_segs(), rt_nmg_shot(), and shoot_and_plot().

struct soltab* stp

Definition at line 2306 of file raytrace.h. Referenced by classify_seg(), nmg_class_ray_vs_shell(), nmg_ray_segs(), rt_nmg_shot(), and shoot_and_plot().

const struct bn_tol* tol

Definition at line 2307 of file raytrace.h. Referenced by classify_seg(), isect_ray_lseg(), isect_ray_planar_face(), nmg_class_ray_vs_shell(), rt_nmg_shot(), and shoot_and_plot().

struct hitmiss** hitmiss

1 struct hitmiss ptr per elem. Definition at line 2308 of file raytrace.h. Referenced by classify_seg(), isect_ray_lseg(), nmg_class_ray_vs_shell(), rt_nmg_shot(), and shoot_and_plot().

struct bu_list rd_hit

list of hit elements Definition at line 2309 of file raytrace.h. Referenced by nmg_class_ray_vs_shell(), nmg_isect_ray_model(), nmg_ray_segs(), rt_nmg_shot(), and shoot_and_plot().

struct bu_list rd_miss

list of missed/sub-hit elements Definition at line 2310 of file raytrace.h. Referenced by isect_ray_lseg(), nmg_class_ray_vs_shell(), nmg_ray_segs(), rt_nmg_shot(), and shoot_and_plot().

point_t plane_pt

ray/plane(face) intercept point plane_pt is the intercept point of the ray with the plane of the face. Definition at line 2317 of file raytrace.h. Referenced by isect_ray_planar_face().

fastf_t ray_dist_to_plane

ray parametric dist to plane ray_dist_to_plane is the parametric distance along the ray from the ray origin (rd->rp->r_pt) to the ray/plane intercept point Definition at line 2322 of file raytrace.h. Referenced by isect_ray_planar_face().

int face_subhit

the "face_subhit" element is a boolean used by isect_ray_face and [e|v]u_touch_func to record the fact that the ray/(plane/face) intercept point was within tolerance of an edge/vertex of the face. In such instances, isect_ray_face does NOT need to generate a hit point for the face, as the hit point for the edge/vertex will suffice. Definition at line 2331 of file raytrace.h. Referenced by isect_ray_planar_face().

int classifying_ray

the "classifying_ray" flag indicates that this ray is being used to classify a point, so that the "eu_touch" and "vu_touch" functions should not be called. Definition at line 2337 of file raytrace.h. Referenced by classify_seg(), isect_ray_planar_face(), nmg_class_ray_vs_shell(), rt_nmg_shot(), and shoot_and_plot().

---
