db5.h File Reference

Definition of the BRL-CAD "v5" database format used for new ".g" files. More...

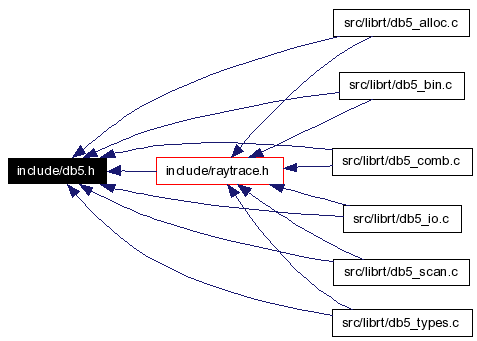

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	db5_ondisk_header
struct	db5_raw_internal
Defines
#define	DB5_H   seen
#define	DB5_EXPORT
#define	DB5HDR_MAGIC1   0x76
#define	DB5HDR_MAGIC2   0x35
#define	DB5HDR_HFLAGS_DLI_MASK   0x03
#define	DB5HDR_HFLAGS_DLI_APPLICATION_DATA_OBJECT   0
#define	DB5HDR_HFLAGS_DLI_HEADER_OBJECT   1
#define	DB5HDR_HFLAGS_DLI_FREE_STORAGE   2
#define	DB5HDR_HFLAGS_HIDDEN_OBJECT   0x4
#define	DB5HDR_HFLAGS_NAME_PRESENT   0x20
#define	DB5HDR_HFLAGS_OBJECT_WIDTH_MASK   0xc0
#define	DB5HDR_HFLAGS_OBJECT_WIDTH_SHIFT   6
#define	DB5HDR_HFLAGS_NAME_WIDTH_MASK   0x18
#define	DB5HDR_HFLAGS_NAME_WIDTH_SHIFT   3
#define	DB5HDR_WIDTHCODE_8BIT   0
#define	DB5HDR_WIDTHCODE_16BIT   1
#define	DB5HDR_WIDTHCODE_32BIT   2
#define	DB5HDR_WIDTHCODE_64BIT   3
#define	DB5HDR_AFLAGS_ZZZ_MASK   0x07
#define	DB5HDR_AFLAGS_PRESENT   0x20
#define	DB5HDR_AFLAGS_WIDTH_MASK   0xc0
#define	DB5HDR_AFLAGS_WIDTH_SHIFT   6
#define	DB5HDR_BFLAGS_ZZZ_MASK   0x07
#define	DB5HDR_BFLAGS_PRESENT   0x20
#define	DB5HDR_BFLAGS_WIDTH_MASK   0xc0
#define	DB5HDR_BFLAGS_WIDTH_SHIFT   6
#define	DB5_GLOBAL_OBJECT_NAME   "_GLOBAL"
#define	DB5_ZZZ_UNCOMPRESSED   0
#define	DB5_ZZZ_GNU_GZIP   1
#define	DB5_ZZZ_BURROUGHS_WHEELER   2
#define	DB5_MAJORTYPE_RESERVED   0
#define	DB5_MAJORTYPE_BRLCAD   1
#define	DB5_MAJORTYPE_ATTRIBUTE_ONLY   2
#define	DB5_MAJORTYPE_BINARY_MASK   0x18
#define	DB5_MAJORTYPE_BINARY_EXPM   8
#define	DB5_MAJORTYPE_BINARY_UNIF   9
#define	DB5_MAJORTYPE_BINARY_MIME   10
#define	DB5_MINORTYPE_RESERVED   0
#define	DB5_MINORTYPE_BRLCAD_TOR   1
#define	DB5_MINORTYPE_BRLCAD_TGC   2
#define	DB5_MINORTYPE_BRLCAD_ELL   3
#define	DB5_MINORTYPE_BRLCAD_ARB8   4
#define	DB5_MINORTYPE_BRLCAD_ARS   5
#define	DB5_MINORTYPE_BRLCAD_HALF   6
#define	DB5_MINORTYPE_BRLCAD_REC   7
#define	DB5_MINORTYPE_BRLCAD_POLY   8
#define	DB5_MINORTYPE_BRLCAD_BSPLINE   9
#define	DB5_MINORTYPE_BRLCAD_SPH   10
#define	DB5_MINORTYPE_BRLCAD_NMG   11
#define	DB5_MINORTYPE_BRLCAD_EBM   12
#define	DB5_MINORTYPE_BRLCAD_VOL   13
#define	DB5_MINORTYPE_BRLCAD_ARBN   14
#define	DB5_MINORTYPE_BRLCAD_PIPE   15
#define	DB5_MINORTYPE_BRLCAD_PARTICLE   16
#define	DB5_MINORTYPE_BRLCAD_RPC   17
#define	DB5_MINORTYPE_BRLCAD_RHC   18
#define	DB5_MINORTYPE_BRLCAD_EPA   19
#define	DB5_MINORTYPE_BRLCAD_EHY   20
#define	DB5_MINORTYPE_BRLCAD_ETO   21
#define	DB5_MINORTYPE_BRLCAD_GRIP   22
#define	DB5_MINORTYPE_BRLCAD_JOINT   23
#define	DB5_MINORTYPE_BRLCAD_HF   24
#define	DB5_MINORTYPE_BRLCAD_DSP   25
#define	DB5_MINORTYPE_BRLCAD_SKETCH   26
#define	DB5_MINORTYPE_BRLCAD_EXTRUDE   27
#define	DB5_MINORTYPE_BRLCAD_SUBMODEL   28
#define	DB5_MINORTYPE_BRLCAD_CLINE   29
#define	DB5_MINORTYPE_BRLCAD_BOT   30
#define	DB5_MINORTYPE_BRLCAD_COMBINATION   31
#define	DB5_MINORTYPE_BRLCAD_SUPERELL   32
#define	DB5_MINORTYPE_BRLCAD_METABALL   33
#define	DB5_MINORTYPE_BINU_WID_MASK   0x30
#define	DB5_MINORTYPE_BINU_SGN_MASK   0x08
#define	DB5_MINORTYPE_BINU_ATM_MASK   0x07
#define	DB5_MINORTYPE_BINU_FLOAT   0x02
#define	DB5_MINORTYPE_BINU_DOUBLE   0x03
#define	DB5_MINORTYPE_BINU_8BITINT_U   0x04
#define	DB5_MINORTYPE_BINU_16BITINT_U   0x05
#define	DB5_MINORTYPE_BINU_32BITINT_U   0x06
#define	DB5_MINORTYPE_BINU_64BITINT_U   0x07
#define	DB5_MINORTYPE_BINU_8BITINT   0x0c
#define	DB5_MINORTYPE_BINU_16BITINT   0x0d
#define	DB5_MINORTYPE_BINU_32BITINT   0x0e
#define	DB5_MINORTYPE_BINU_64BITINT   0x0f
#define	DB5_RAW_INTERNAL_MAGIC   0x64357269
#define	RT_CK_RIP(_ptr)   BU_CKMAG( _ptr, DB5_RAW_INTERNAL_MAGIC, "db5_raw_internal" )
Functions
DB5_EXPORT unsigned char *	db5_encode_length (unsigned char *cp, long val, int format)
DB5_EXPORT const unsigned char *	db5_get_raw_internal_ptr (struct db5_raw_internal *rip, const unsigned char *ip)
Variables
const char *	binu_types []
DB5_EXPORT const int	db5_enc_len [4]

---

Detailed Description

Definition of the BRL-CAD "v5" database format used for new ".g" files.

Author:

Michael John Muuss

Lee A. Butler

Paul J. Tanenbaum

John R. Anderson

Source

The U. S. Army Research Laboratory
Aberdeen Proving Ground, Maryland 21005-5068 USA

Header

/cvsroot/brlcad/brlcad/include/db5.h,v 14.10 2006/09/18 05:24:07 lbutler Exp

Definition in file db5.h.

---
