dm.h File Reference

#include <bu.h>

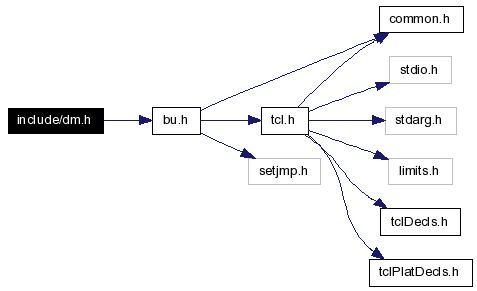

Include dependency graph for dm.h:

Go to the source code of this file.

Data Structures
struct	dm_vars
struct	dm
struct	dm_obj
	A display manager object is used for interacting with a display manager. More...
Defines
#define	DM_EXPORT
#define	DM_NULL   (struct dm *)NULL
#define	DM_MIN   (-2048)
#define	DM_MAX   (2047)
#define	X   0
#define	Y   1
#define	Z   2
#define	DM_O(_m)   offsetof(struct dm, _m)
#define	GED_MAX   2047.0
#define	GED_MIN   -2048.0
#define	GED_RANGE   4095.0
#define	INV_GED   0.00048828125
#define	INV_4096   0.000244140625
#define	DIVBY4096(x)   (((double)(x))*INV_4096)
#define	GED_TO_Xx(_dmp, x)   ((int)((DIVBY4096(x)+0.5)*_dmp->dm_width))
#define	GED_TO_Xy(_dmp, x)   ((int)((0.5-DIVBY4096(x))*_dmp->dm_height))
#define	Xx_TO_GED(_dmp, x)   ((int)(((x)/(double)_dmp->dm_width - 0.5) * GED_RANGE))
#define	Xy_TO_GED(_dmp, x)   ((int)((0.5 - (x)/(double)_dmp->dm_height) * GED_RANGE))
#define	FONTBACK   "-adobe-courier-medium-r-normal--10-100-75-75-m-60-iso8859-1"
#define	FONT5   "5x7"
#define	FONT6   "6x10"
#define	FONT7   "7x13"
#define	FONT8   "8x13"
#define	FONT9   "9x15"
#define	DM_TYPE_BAD   -1
#define	DM_TYPE_NULL   0
#define	DM_TYPE_PLOT   1
#define	DM_TYPE_PS   2
#define	DM_TYPE_X   3
#define	DM_TYPE_OGL   4
#define	DM_TYPE_GLX   5
#define	DM_TYPE_PEX   6
#define	DM_TYPE_WGL   7
#define	DM_SOLID_LINE   0
#define	DM_DASHED_LINE   1
#define	IS_DM_TYPE_NULL(_t)   ((_t) == DM_TYPE_NULL)
#define	IS_DM_TYPE_PLOT(_t)   ((_t) == DM_TYPE_PLOT)
#define	IS_DM_TYPE_PS(_t)   ((_t) == DM_TYPE_PS)
#define	IS_DM_TYPE_X(_t)   ((_t) == DM_TYPE_X)
#define	IS_DM_TYPE_OGL(_t)   ((_t) == DM_TYPE_OGL)
#define	IS_DM_TYPE_GLX(_t)   ((_t) == DM_TYPE_GLX)
#define	IS_DM_TYPE_PEX(_t)   ((_t) == DM_TYPE_PEX)
#define	IS_DM_TYPE_WGL(_t)   ((_t) == DM_TYPE_WGL)
#define	GET_DM(p, structure, w, hp)
#define	DM_COLOR_HI   ((short)230)
#define	DM_COLOR_LOW   ((short)0)
#define	DM_BLACK_R   DM_COLOR_LOW
#define	DM_BLACK_G   DM_COLOR_LOW
#define	DM_BLACK_B   DM_COLOR_LOW
#define	DM_RED_R   DM_COLOR_HI
#define	DM_RED_G   DM_COLOR_LOW
#define	DM_RED_B   DM_COLOR_LOW
#define	DM_BLUE_R   DM_COLOR_LOW
#define	DM_BLUE_G   DM_COLOR_LOW
#define	DM_BLUE_B   DM_COLOR_HI
#define	DM_YELLOW_R   DM_COLOR_HI
#define	DM_YELLOW_G   DM_COLOR_HI
#define	DM_YELLOW_B   DM_COLOR_LOW
#define	DM_WHITE_R   DM_COLOR_HI
#define	DM_WHITE_G   DM_COLOR_HI
#define	DM_WHITE_B   DM_COLOR_HI
#define	DM_BLACK   DM_BLACK_R, DM_BLACK_G, DM_BLACK_B
#define	DM_RED   DM_RED_R, DM_RED_G, DM_RED_B
#define	DM_BLUE   DM_BLUE_R, DM_BLUE_G, DM_BLUE_B
#define	DM_YELLOW   DM_YELLOW_R, DM_YELLOW_G, DM_YELLOW_B
#define	DM_WHITE   DM_WHITE_R, DM_WHITE_G, DM_WHITE_B
#define	DM_COPY_COLOR(_dr, _dg, _db, _sr, _sg, _sb)
#define	DM_SAME_COLOR(_dr, _dg, _db, _sr, _sg, _sb)
#define	DM_CHGV_REDO   0
#define	DM_CHGV_ADD   1
#define	DM_CHGV_DEL   2
#define	DM_CHGV_REPL   3
#define	DM_CHGV_ILLUM   4
#define	LIGHT_OFF   0
#define	LIGHT_ON   1
#define	LIGHT_RESET   2
#define	DM_OPEN(_type, _argc, _argv)   dm_open(_type,_argc,_argv)
#define	DM_CLOSE(_dmp)   _dmp->dm_close(_dmp)
#define	DM_DRAW_BEGIN(_dmp)   _dmp->dm_drawBegin(_dmp)
#define	DM_DRAW_END(_dmp)   _dmp->dm_drawEnd(_dmp)
#define	DM_NORMAL(_dmp)   _dmp->dm_normal(_dmp)
#define	DM_LOADMATRIX(_dmp, _mat, _eye)   _dmp->dm_loadMatrix(_dmp,_mat,_eye)
#define	DM_DRAW_STRING_2D(_dmp, _str, _x, _y, _size, _use_aspect)   _dmp->dm_drawString2D(_dmp,_str,_x,_y,_size,_use_aspect)
#define	DM_DRAW_LINE_2D(_dmp, _x1, _y1, _x2, _y2)   _dmp->dm_drawLine2D(_dmp,_x1,_y1,_x2,_y2)
#define	DM_DRAW_POINT_2D(_dmp, _x, _y)   _dmp->dm_drawPoint2D(_dmp,_x,_y)
#define	DM_DRAW_VLIST(_dmp, _vlist)   _dmp->dm_drawVList(_dmp,_vlist)
#define	DM_SET_FGCOLOR(_dmp, _r, _g, _b, _strict, _transparency)   _dmp->dm_setFGColor(_dmp,_r,_g,_b,_strict,_transparency)
#define	DM_SET_BGCOLOR(_dmp, _r, _g, _b)   _dmp->dm_setBGColor(_dmp,_r,_g,_b)
#define	DM_SET_LINE_ATTR(_dmp, _width, _dashed)   _dmp->dm_setLineAttr(_dmp,_width,_dashed)
#define	DM_CONFIGURE_WIN(_dmp)   _dmp->dm_configureWin(_dmp)
#define	DM_SET_WIN_BOUNDS(_dmp, _w)   _dmp->dm_setWinBounds(_dmp,_w)
#define	DM_SET_LIGHT(_dmp, _on)   _dmp->dm_setLight(_dmp,_on)
#define	DM_SET_TRANSPARENCY(_dmp, _on)   _dmp->dm_setTransparency(_dmp,_on)
#define	DM_SET_DEPTH_MASK(_dmp, _on)   _dmp->dm_setDepthMask(_dmp,_on)
#define	DM_SET_ZBUFFER(_dmp, _on)   _dmp->dm_setZBuffer(_dmp,_on)
#define	DM_DEBUG(_dmp, _lvl)   _dmp->dm_debug(_dmp,_lvl)
#define	DM_BEGINDLIST(_dmp, _list)   _dmp->dm_beginDList(_dmp,_list)
#define	DM_ENDDLIST(_dmp)   _dmp->dm_endDList(_dmp)
#define	DM_DRAWDLIST(_dmp, _list)   _dmp->dm_drawDList(_dmp,_list)
#define	DM_FREEDLISTS(_dmp, _list, _range)   _dmp->dm_freeDLists(_dmp,_list,_range)
Functions
DM_EXPORT int	Dm_Init ()
DM_EXPORT struct dm *	dm_open (Tcl_Interp *interp, int type, int argc, char *argv[])
DM_EXPORT int	dm_share_dlist (struct dm *dmp1, struct dm *dmp2)
DM_EXPORT fastf_t	dm_Xx2Normal (struct dm *dmp, register int x)
DM_EXPORT int	dm_Normal2Xx (struct dm *dmp, register fastf_t f)
DM_EXPORT fastf_t	dm_Xy2Normal (struct dm *dmp, register int y, int use_aspect)
DM_EXPORT int	dm_Normal2Xy (struct dm *dmp, register fastf_t f, int use_aspect)
DM_EXPORT void	dm_fogHint (struct dm *dmp, int fastfog)
DM_EXPORT int	dm_processOptions ()
DM_EXPORT int	dm_limit (int i)
DM_EXPORT int	dm_unlimit (int i)
DM_EXPORT fastf_t	dm_wrap (fastf_t f)
DM_EXPORT void	Nu_void ()
DM_EXPORT struct dm *	Nu_open ()
DM_EXPORT int	Nu_int0 ()
DM_EXPORT unsigned	Nu_unsign ()
DM_EXPORT int	clip (fastf_t *, fastf_t *, fastf_t *, fastf_t *)
DM_EXPORT int	vclip (fastf_t *, fastf_t *, register fastf_t *, register fastf_t *)
DM_EXPORT void	dmo_drawAxes_cmd (struct dm *dmp, fastf_t viewSize, mat_t rmat, point_t axesPos, fastf_t axesSize, int *axesColor, int *labelColor, int lineWidth, int posOnly, int threeColor, int tickEnable, int tickLen, int majorTickLen, fastf_t tickInterval, int ticksPerMajor, int *tickColor, int *majorTickColor, int tickThreshold)
Variables
DM_EXPORT struct dm	dm_Null
DM_EXPORT char	dm_version []

---

Detailed Description

Definition in file dm.h.

---
